Sandvik Coromant

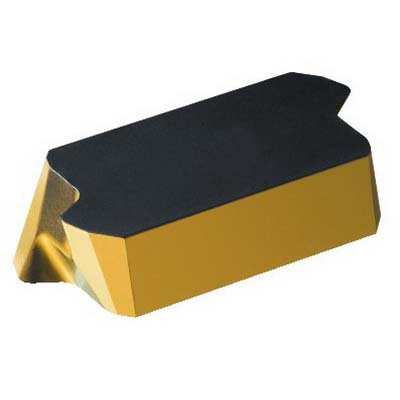

Sandvik Coromant 5735225 T-Max® 45 Milling Insert, LNCX 18 06 AZ R-11 4230, L-Rectangle, LNCX Insert, Carbide, 4230, LNCX 18 06 AZ R-11 4230
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5735225 T-Max® 45 Milling Insert, LNCX 18 06 AZ R-11 4230, L-Rectangle, LNCX Insert, Carbide, 4230, LNCX 18 06 AZ R-11 4230
SKU1254229
MFGR #5735225
Your Cost: $42.96/ea
List: Sandvik Coromant Milling Insert, Series: T-Max® 45, LNCX Insert, L-Rectangle, 0.709 in Inscribed Circle, 0.2519 in Thickness, 0.3937 in Width, R11 Chipbreaker, 0 deg Rake, 45 deg Lead Angle, Manufacturer's Grade: 4230, ANSI Code: LNCX 18 06 AZ R-11 4230, ISO Code: LNCX 18 06 AZ R-11 4230, Right Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Milling Insert, Series: T-Max® 45, LNCX Insert, L-Rectangle, 0.709 in Inscribed Circle, 0.2519 in Thickness, 0.3937 in Width, R11 Chipbreaker, 0 deg Rake, 45 deg Lead Angle, Manufacturer's Grade: 4230, ANSI Code: LNCX 18 06 AZ R-11 4230, ISO Code: LNCX 18 06 AZ R-11 4230, Right Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number LNCX 18 06 AZ R-11 4230 ANSI Code LNCX 18 06 AZ R-11 4230 Catalog Number 5735225 Corner Radius T-Max® 45 Country of Origin JP Finish MTCVD Coated Gross Weight Per Pack 0.0500 lb Hand of Insert Right Hole Diameter LNCX 18 06 AZ R-11 4230 ISO Code LNCX 18 06 AZ R-11 4230 Item Group 350 Lead Angle 45 deg Length 10 mm Material Application Cast Iron and Steel Relief Angle 6.4 mm Series T-Max® 45 Thickness 0.2519 in Type Right UPC 11 69826242234 Width 0.3937 in Width UOM in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker R11 Inscribed Circle 0.709 in Insert Size LNCX 18 06 AZ R-11 4230 Insert Style LNCX Manufacturer's Grade 4230 Material Carbide Material Grade K/P Maximum Depth of Cut L - Rectangle Rake 0 deg Shape L-Rectangle Flat surface clamping interface 0 deg clearance 12 mm D cutting 2 mm L wiper edge 125 mm wiper edge radius 90 deg included 44 deg major cutting edge 18.77 mm L effective cutting edge 2-side cutting 20 life cycle state 2 corner E cutting edge condition 4 cutting edge Without fixing hole mounting 0.1 to 0.99 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | LNCX 18 06 AZ R-11 4230 |
| ANSI Code | LNCX 18 06 AZ R-11 4230 |
| Catalog Number | 5735225 |
| Corner Radius | T-Max® 45 |
| Country of Origin | JP |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0500 lb |
| Hand of Insert | Right |
| Hole Diameter | LNCX 18 06 AZ R-11 4230 |
| ISO Code | LNCX 18 06 AZ R-11 4230 |
| Item Group | 350 |
| Lead Angle | 45 deg |
| Length | 10 mm |
| Material Application | Cast Iron and Steel |
| Relief Angle | 6.4 mm |
| Series | T-Max® 45 |
| Thickness | 0.2519 in |
| Type | Right |
| UPC 11 | 69826242234 |
| Width | 0.3937 in |
| Width UOM | in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | R11 |
| Inscribed Circle | 0.709 in |
| Insert Size | LNCX 18 06 AZ R-11 4230 |
| Insert Style | LNCX |
| Manufacturer's Grade | 4230 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | L - Rectangle |
| Rake | 0 deg |
| Shape | L-Rectangle |
| Flat surface clamping interface |
| 0 deg clearance |
| 12 mm D cutting |
| 2 mm L wiper edge |
| 125 mm wiper edge radius |
| 90 deg included |
| 44 deg major cutting edge |
| 18.77 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 4 cutting edge |
| Without fixing hole mounting |
| 0.1 to 0.99 mm/r cutting feed |
