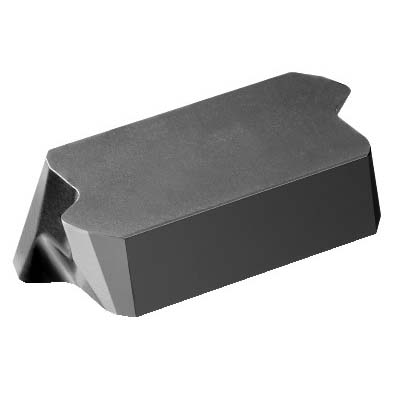

Sandvik Coromant 5735047 T-Max® 45 Milling Insert, LNCX 18 06 AZ R-11 H13A ANSI, L-Rectangle, LNCX Insert, Carbide, H13A
LNCX Milling Inserts
1254227
MFG #: 5735047
Sandvik Coromant
28.97000
/ ea
- Alternate Catalog Number: LNCX 18 06 AZ R-11 H13A
- ANSI Code: LNCX 18 06 AZ R-11 H13A
- Catalog Number: 5735047
- Corner Radius: 45 deg
- Country of Origin: JP
- Finish: Uncoated
- Gross Weight Per Pack: 0.0500 lb
- Hand of Insert: Right
- Hole Diameter: Right
- Includes: 10 mm
- ISO Code: LNCX 18 06 AZ R-11 H13A
- Item Group: 350
- Lead Angle: 45 deg
- Length: LNCX
- Material Application: Cast Iron, Non-Ferrous Metals and Super Alloy
- Series: T-Max® 45
- Thickness: 0.2519 in
- Type: K, N, S
- UPC 11: 69826270250
- Warranty: L - Rectangle
- Width: 0.3937 in
- Width UOM: in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: R11
- Inscribed Circle: 0.709 in
- Insert Size: 6.4 mm
- Insert Style: LNCX
- Manufacturer's Grade: H13A
- Material: Carbide
- Material Grade: K/N/S
- Rake: 0 deg
- Shape: L-Rectangle
Sandvik Coromant Milling Insert, Series: T-Max® 45, LNCX Insert, L-Rectangle, 0.709 in Inscribed Circle, 0.2519 in Thickness, 0.3937 in Width, R11 Chipbreaker, 0 deg Rake, 45 deg Lead Angle, Manufacturer's Grade: H13A, ANSI Code: LNCX 18 06 AZ R-11 H13A, ISO Code: LNCX 18 06 AZ R-11 H13A, Right Hand, Carbide, Uncoated, Material Grade: K/N/S
- Features
| Flat surface clamping interface |
| 0 deg clearance |
| 12 mm D cutting |
| 2 mm L wiper edge |
| 125 mm wiper edge radius |
| 90 deg included |
| 44 deg major cutting edge |
| 18.77 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 4 cutting edge |
| Without fixing hole mounting |
| 0.1 - 0.99 mm/r cutting feed |
