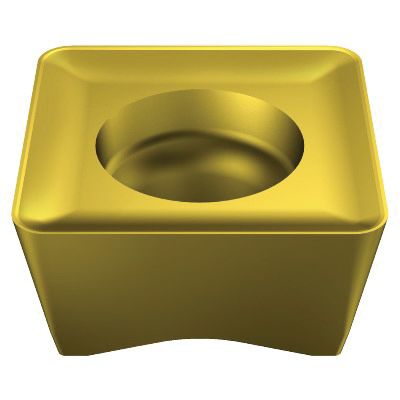

Sandvik Coromant 5764914 CoroMill® 690 Milling Insert, 690-140610M-P-SL 2040, S-Square, 690..P-SL Insert, Carbide, 2040, 690-140610M-P-SL 2040
690 Milling Inserts
1252370
MFG #: 5764914
Sandvik Coromant
29.38000
/ ea
- Alternate Catalog Number: 690-140610M-P-SL 2040
- ANSI Code: 690-140610M-P-SL 2040
- Catalog Number: 5764914
- Corner Radius: 0.0393 in
- Country of Origin: SE
- Finish: MTCVD Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.2165 in
- ISO Code: 690-140610M-P-SL 2040
- Item Group: 350
- Lead Angle: 90 deg
- Length: 0.5708 in
- Material Application: Heat Resistant Alloys
- Relief Angle: 6.35 mm
- Series: CoroMill® 690
- Thickness: 1/4 in
- Type: 690-140610M-P-SL 2040
- UPC 11: 69826245346
- Width: Neutral
- Width UOM: in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: SL
- Inscribed Circle: 0.5708 in
- Insert Size: MTCVD Coated
- Insert Style: 690..P-SL
- Manufacturer's Grade: 2040
- Material: Carbide
- Material Grade: S
- Rake: Positive
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: CoroMill® 690, 690..P-SL Insert, S-Square, 0.5708 in Inscribed Circle, 1/4 in Thickness, 0.5708 in Length, SL Chipbreaker, 0.0393 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.2165 in Hole Dia, Manufacturer's Grade: 2040, ANSI Code: 690-140610M-P-SL 2040, ISO Code: 690-140610M-P-SL 2040, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 90 deg included |
| 90 deg major cutting edge |
| 13.5 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.2 mm/r cutting feed |
