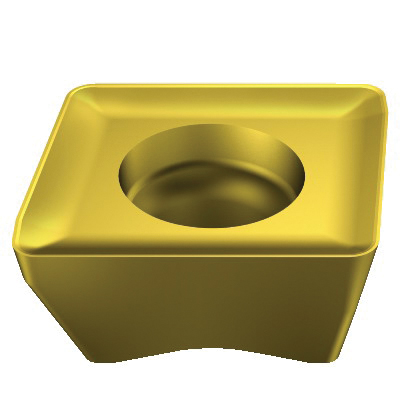

Sandvik Coromant 5764908 CoroMill® 690 Milling Insert, 690-140608M-E-SL 2040, S-Square, 690..E-SL Insert, Carbide, 2040, 690-140608M-E-SL 2040
690 Milling Inserts
1252371
MFG #: 5764908
Sandvik Coromant
29.38000
/ ea
- Alternate Catalog Number: 690-140608M-E-SL 2040
- ANSI Code: 690-140608M-E-SL 2040
- Catalog Number: 5764908
- Corner Radius: 0.0314 in
- Country of Origin: SE
- Finish: MTCVD Coated
- Gross Weight Per Pack: 0.0300 lb
- Hand of Insert: Right
- Hole Diameter: 0.2165 in
- Included Angle: S - Square
- ISO Code: 690-140608M-E-SL 2040
- Item Group: 350
- Lead Angle: 90 deg
- Length: 0.714 in
- Material Application: Heat Resistant Alloys
- Series: CoroMill® 690
- Thickness: 1/4 in
- Type: 90 deg
- UPC 11: 69826245344
- Width: 0.5708 in
- Width UOM: IN
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: SL
- Inscribed Circle: 0.3937 in
- Insert Size: 6.35 mm
- Insert Style: 690..E-SL
- Manufacturer's Grade: 2040
- Material: Carbide
- Material Grade: S
- Maximum Depth of Cut: 14.5 mm
- Rake: Positive
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: CoroMill® 690, 690..E-SL Insert, S-Square, 0.3937 in Inscribed Circle, 1/4 in Thickness, 0.5708 in Width, 0.714 in Length, SL Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.2165 in Hole Dia, Manufacturer's Grade: 2040, ANSI Code: 690-140608M-E-SL 2040, ISO Code: 690-140608M-E-SL 2040, Right Hand, Carbide, MTCVD Coated, Material Grade: S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 1 mm L wiper edge |
| 90 deg major cutting edge |
| 14.75 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.2 mm/r cutting feed |
