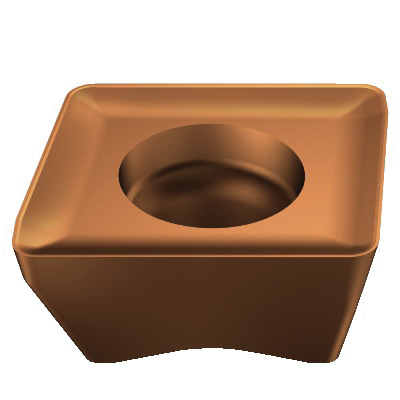

Sandvik Coromant 5764805 CoroMill® 690 Milling Insert, 690-140660M-E-SL 1030 ANSI, S-Square, 690..E-SL Insert, Carbide, 1030
Custom_Product_Images_Illustration
Sandvik Coromant 5764805 CoroMill® 690 Milling Insert, 690-140660M-E-SL 1030 ANSI, S-Square, 690..E-SL Insert, Carbide, 1030
SKU1252330
MFGR #5764805
Your Cost: $26.76/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 690, 690..E-SL Insert, S-Square, 0.5708 in Inscribed Circle, 1/4 in Thickness, 0.5708 in Width, 1/2 in Length, SL Chipbreaker, 0.2362 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.2165 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 690-140660M-E-SL 1030, ISO Code: 690-140660M-E-SL 1030, Right Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Milling Insert, Series: CoroMill® 690, 690..E-SL Insert, S-Square, 0.5708 in Inscribed Circle, 1/4 in Thickness, 0.5708 in Width, 1/2 in Length, SL Chipbreaker, 0.2362 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.2165 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 690-140660M-E-SL 1030, ISO Code: 690-140660M-E-SL 1030, Right Hand, Carbide, PVD Coated, Material Grade: S
ANSI Code 690-140660M-E-SL 1030 Catalog Number 5764805 Corner Radius 0.2362 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0300 lb Hand of Insert Right Hole Diameter 0.2165 in ISO Code 690-140660M-E-SL 1030 Lead Angle 90 deg Length 1/2 in Relief Angle 6.35 mm Series CoroMill® 690 Thickness 1/4 in Type 690..E-SL UPC 11 69826249725 Width 0.5708 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SL Inscribed Circle 0.5708 in Insert Size S to Square Insert Style 690..E-SL Manufacturer's Grade 1030 Material Carbide Material Grade S Maximum Depth of Cut S - Square Rake Positive Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 11 deg clearance 1 mm L wiper edge 90 deg major cutting edge 16.5 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting 0.05 to 0.2 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 690-140660M-E-SL 1030 |
| Catalog Number | 5764805 |
| Corner Radius | 0.2362 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0300 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.2165 in |
| ISO Code | 690-140660M-E-SL 1030 |
| Lead Angle | 90 deg |
| Length | 1/2 in |
| Relief Angle | 6.35 mm |
| Series | CoroMill® 690 |
| Thickness | 1/4 in |
| Type | 690..E-SL |
| UPC 11 | 69826249725 |
| Width | 0.5708 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SL |
| Inscribed Circle | 0.5708 in |
| Insert Size | S to Square |
| Insert Style | 690..E-SL |
| Manufacturer's Grade | 1030 |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | S - Square |
| Rake | Positive |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 1 mm L wiper edge |
| 90 deg major cutting edge |
| 16.5 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.2 mm/r cutting feed |
