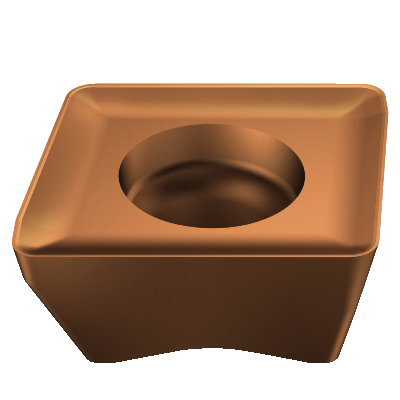

Sandvik Coromant 5764732 CoroMill® 690 Milling Insert, 690-100520M-E-SL 1030, S-Square, 690..E-SL Insert, Carbide, 1030, 690-100520M-E-SL 1030
690 Milling Inserts
1251922
MFG #: 5764732
Sandvik Coromant
26.45000
/ ea
- Alternate Catalog Number: 690-100520M-E-SL 1030
- ANSI Code: 690-100520M-E-SL 1030
- Catalog Number: 5764732
- Corner Radius: 0.0787 in
- Country of Origin: SE
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- Hole Diameter: 0.1771 in
- Included Angle: 5.2 mm
- ISO Code: 690-100520M-E-SL 1030
- Item Group: 350
- Lead Angle: 90 deg
- Length: 0.5232 in
- Material Application: Heat Resistant Alloys
- Relief Angle: 10 mm
- Series: CoroMill® 690
- Thickness: 0.1377 in
- Type: S - Square
- UPC 11: 69826247762
- Width: 0.3937 in
- Width UOM: IN
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: SL
- Inscribed Circle: 0.3937 in
- Insert Size: 10 mm
- Insert Style: 690..E-SL
- Manufacturer's Grade: 1030
- Material: Carbide
- Material Grade: S
- Rake: Positive
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: CoroMill® 690, 690..E-SL Insert, S-Square, 0.3937 in Inscribed Circle, 0.1377 in Thickness, 0.3937 in Width, 0.5232 in Length, SL Chipbreaker, 0.0787 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1771 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 690-100520M-E-SL 1030, ISO Code: 690-100520M-E-SL 1030, Right Hand, Carbide, PVD Coated, Material Grade: S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 1 mm L wiper edge |
| 90 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.2 mm/r cutting feed |
