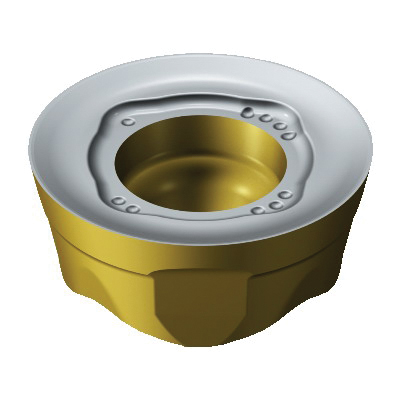

Sandvik Coromant 6252750 CoroMill® 600 Milling Insert, 600-1252E-ML M30B ANSI, R-Round, 600..E-ML Insert, 600-1252E-ML M30B ISO
Custom_Product_Images_Illustration
Sandvik Coromant 6252750 CoroMill® 600 Milling Insert, 600-1252E-ML M30B ANSI, R-Round, 600..E-ML Insert, 600-1252E-ML M30B ISO
SKU1240133
MFGR #6252750
Your Cost: $16.75/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 600, 600..E-ML Insert, R-Round, 0.4724 in Inscribed Circle, 0.1377 in Thickness, ML Chipbreaker, 0.2362 in Corner Radius, 0.1771 in Hole Dia, Manufacturer's Grade: M30B, ANSI Code: 600-1252E-ML M30B, ISO Code: 600-1252E-ML M30B, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Milling Insert, Series: CoroMill® 600, 600..E-ML Insert, R-Round, 0.4724 in Inscribed Circle, 0.1377 in Thickness, ML Chipbreaker, 0.2362 in Corner Radius, 0.1771 in Hole Dia, Manufacturer's Grade: M30B, ANSI Code: 600-1252E-ML M30B, ISO Code: 600-1252E-ML M30B, Neutral Hand, Carbide, CVD Coated, Material Grade: M
ANSI Code 600-1252E-ML M30B Catalog Number 6252750 Corner Radius 0.236 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1200 lb Hand of Insert Neutral Hole Diameter 0.177 in ISO Code 600-1252E-ML M30B Material Application Stainless Steel Series CoroMill® 600 Thickness 0.205 in UPC 11 69826271263 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker ML Inscribed Circle 0.472 in Insert Size 1252 Insert Style 600..E-ML Manufacturer's Grade M30B Material Carbide Material Grade M Shape Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 11 deg clearance 6 mm D cutting 1-side cutting 20 life cycle state 4 corner F cutting edge condition 4 cutting edge
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 600-1252E-ML M30B |
| Catalog Number | 6252750 |
| Corner Radius | 0.236 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.177 in |
| ISO Code | 600-1252E-ML M30B |
| Material Application | Stainless Steel |
| Series | CoroMill® 600 |
| Thickness | 0.205 in |
| UPC 11 | 69826271263 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | ML |
| Inscribed Circle | 0.472 in |
| Insert Size | 1252 |
| Insert Style | 600..E-ML |
| Manufacturer's Grade | M30B |
| Material | Carbide |
| Material Grade | M |
| Shape | Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 6 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| F cutting edge condition |
| 4 cutting edge |
