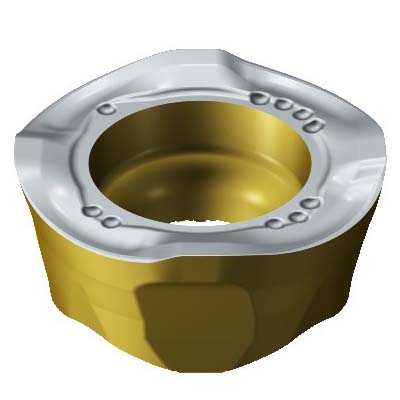

Sandvik Coromant 6252746 CoroMill® 600 Milling Insert, 600R-1045M-MM M30B ANSI, R-Round, 600..M-MM Insert, Carbide, M30B
Custom_Product_Images_Illustration
Sandvik Coromant 6252746 CoroMill® 600 Milling Insert, 600R-1045M-MM M30B ANSI, R-Round, 600..M-MM Insert, Carbide, M30B
SKU1240120
MFGR #6252746
Your Cost: $11.13/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 600, 600..M-MM Insert, R-Round, 0.3937 in Inscribed Circle, 0.1771 in Thickness, MM Chipbreaker, 0.1968 in Corner Radius, 0.1771 in Hole Dia, Manufacturer's Grade: M30B, ANSI Code: 600R-1045M-MM M30B, ISO Code: 600R-1045M-MM M30B, Right Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Milling Insert, Series: CoroMill® 600, 600..M-MM Insert, R-Round, 0.3937 in Inscribed Circle, 0.1771 in Thickness, MM Chipbreaker, 0.1968 in Corner Radius, 0.1771 in Hole Dia, Manufacturer's Grade: M30B, ANSI Code: 600R-1045M-MM M30B, ISO Code: 600R-1045M-MM M30B, Right Hand, Carbide, CVD Coated, Material Grade: M
ANSI Code 600R-1045M-MM M30B Catalog Number 6252746 Corner Radius 0.197 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.0800 lb Hand of Insert Right Hole Diameter 0.177 in ISO Code 600R-1045M-MM M30B Material Application Stainless Steel Series CoroMill® 600 Thickness 0.1771 in UPC 11 69826271269 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Inscribed Circle 0.394 in Insert Size 1045 Insert Style 600..M-MM Manufacturer's Grade M30B Material Carbide Material Grade M Shape Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 11 deg clearance 3.6 mm D cutting 0.8 mm L wiper edge 100 mm wiper edge radius 1-side cutting 20 life cycle state 4 corner E cutting edge condition 4 cutting edge
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 600R-1045M-MM M30B |
| Catalog Number | 6252746 |
| Corner Radius | 0.197 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.0800 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.177 in |
| ISO Code | 600R-1045M-MM M30B |
| Material Application | Stainless Steel |
| Series | CoroMill® 600 |
| Thickness | 0.1771 in |
| UPC 11 | 69826271269 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Inscribed Circle | 0.394 in |
| Insert Size | 1045 |
| Insert Style | 600..M-MM |
| Manufacturer's Grade | M30B |
| Material | Carbide |
| Material Grade | M |
| Shape | Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 3.6 mm D cutting |
| 0.8 mm L wiper edge |
| 100 mm wiper edge radius |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
