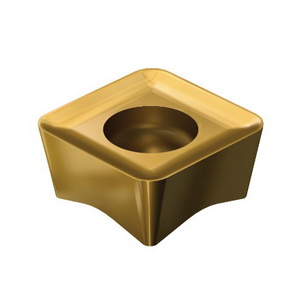

Sandvik Coromant 7188313 CoroMill® 415 Milling Insert, 415N-07 03 10M-M30 1030 ANSI, S-Square, 415N-07 03 10M-M30 1030 ISO
415N Milling Inserts
1232810
MFG #: 7188313
Sandvik Coromant
16.66000
/ ea
- ANSI Code: 415N-07 03 10M-M30 1030
- Catalog Number: 7188313
- Corner Radius: 0.039 in
- Country of Origin: US
- Finish: PVD Coated
- Gross Weight Per Pack: 1 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.276 in
- ISO Code: 415N-07 03 10M-M30 1030
- Lead Angle: 11 deg
- Length: 0.5232 in
- Series: CoroMill® 415
- Thickness: 0.121 in
- Type: CoroMill® 415
- Warranty: S - Square
- Width: 0.276 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: M30
- Inscribed Circle: 0.276 in
- Insert Size: 0.121 in
- Insert Style: 0.276 in
- Manufacturer's Grade: 1030
- Material: Carbide
- Material Grade: CoroMill® 415
- Rake: 415N-07 03 10M-M30 1030
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: CoroMill® 415, S-Square, 0.276 in Inscribed Circle, 0.121 in Thickness, 0.276 in Width, 0.5232 in Length, M30 Chipbreaker, 0.039 in Corner Radius, 11 deg Lead Angle, Manufacturer's Grade: 1030, ANSI Code: 415N-07 03 10M-M30 1030, ISO Code: 415N-07 03 10M-M30 1030, Neutral Hand, Carbide, PVD Coated
- Features
| 15 deg major cutting edge |
| 0.197 in L effective cutting edge |
| 20 life cycle state |
