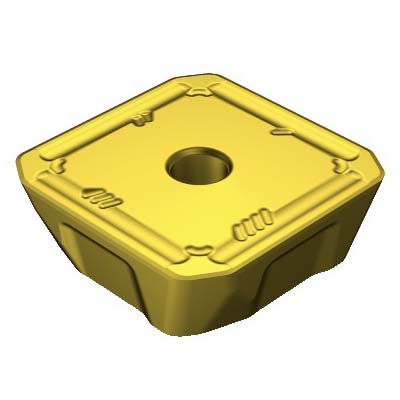

Sandvik Coromant 5759205 CoroMill® 360 Milling Insert, 360R-19 06M-MH 2040, S-Square, 360R/L..M-MH Insert, Carbide, 2040, 360R-19 06M-MH 2040
360R/360L Milling Inserts
1242062
MFG #: 5759205
Sandvik Coromant
36.86000
/ ea
- Alternate Catalog Number: 360R-19 06M-MH 2040
- ANSI Code: 360R-19 06M-MH 2040
- Catalog Number: 5759205
- Corner Radius: 0.063 in
- Country of Origin: SE
- Finish: MTCVD-TiCN+Al2O3+TiN Coated
- Gross Weight Per Pack: 0.6200 lb
- Hand of Insert: Right
- Hole Diameter: 0.1496 in
- ISO Code: 360R-19 06M-MH 2040
- Item Group: 350
- Lead Angle: 60 °
- Length: 0.746 in
- Material Application: Stainless Steel
- Series: CoroMill® 360
- Thickness: 1/4 in
- UPC 11: 69826247641
- Width: 0.746 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: MH
- Inscribed Circle: 0.746 in
- Insert Size: 1906
- Insert Style: 360R/L..M-MH
- Manufacturer's Grade: 2040
- Material: Carbide
- Material Grade: M
- Shape: Square
Sandvik Coromant Milling Insert, Series: CoroMill® 360, 360R/L..M-MH Insert, S-Square, 0.7456 in Inscribed Circle, 1/4 in Thickness, 0.7456 in Length, MH Chipbreaker, 0.0629 in Corner Radius, 0 deg Rake, 30 deg Lead Angle, 0.1496 in Hole Dia, Manufacturer's Grade: 2040, ANSI Code: 360R-19 06M-MH 2040, ISO Code: 360R-19 06M-MH 2040, Right Hand, Carbide, MTCVD Coated, Material Grade: M
- Features
| Flat surface clamping interface |
| 13 mm D cutting |
| 2.2 mm L wiper edge |
| 200 mm wiper edge radius |
| 90 deg included |
| 60 deg major cutting edge |
| 15 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 4 cutting edge |
| Without fixing hole mounting |
| 0.3 to 0.69 mm/r cutting feed |
