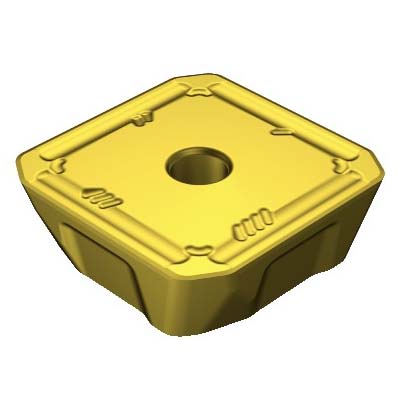

Sandvik Coromant 5759032 CoroMill® 360 Milling Insert, 360L-2807M-MH 2040, S-Square, 360R/L..M-MH Insert, Carbide, 2040, 360L-2807M-MH 2040
360R/360L Milling Inserts
1242134
MFG #: 5759032
Sandvik Coromant
64.84000
/ ea
- Alternate Catalog Number: 360L-2807M-MH 2040
- ANSI Code: 360L-2807M-MH 2040
- Catalog Number: 5759032
- Corner Radius: 0.067 in
- Country of Origin: SE
- Finish: MTCVD-TiCN+Al2O3+TiN Coated
- Gross Weight Per Pack: 0.9600 lb
- Hand of Insert: Left
- Hole Diameter: 0.1496 in
- ISO Code: 360L-2807M-MH 2040
- Item Group: 350
- Lead Angle: 60 °
- Length: 1.121 in
- Material Application: Stainless Steel
- Series: CoroMill® 360
- Thickness: 5/16 in
- UPC 11: 69826249619
- Width: 1.121 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: MH
- Inscribed Circle: 1.121 in
- Insert Size: 2807
- Insert Style: 360R/L..M-MH
- Manufacturer's Grade: 2040
- Material: Carbide
- Material Grade: M
- Shape: Square
Sandvik Coromant Milling Insert, Series: CoroMill® 360, 360R/L..M-MH Insert, S-Square, 0.3346 in Inscribed Circle, 5/16 in Thickness, 1/2 in Length, MH Chipbreaker, 0.0669 in Corner Radius, 0 deg Rake, 90 deg Lead Angle, 0.1496 in Hole Dia, Manufacturer's Grade: 2040, ANSI Code: 360L-2807M-MH 2040, ISO Code: 360L-2807M-MH 2040, Left Hand, Carbide, MTCVD Coated, Material Grade: M
- Features
| Flat surface clamping interface |
| 18 mm D cutting |
| 4.6 mm L wiper edge |
| 200 mm wiper edge radius |
| 90 deg included |
| 60 deg major cutting edge |
| 20 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 4 cutting edge |
| Without fixing hole mounting |
| 0.3 to 0.69 mm/r cutting feed |
