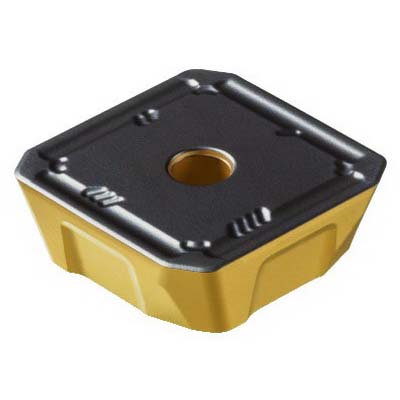

Sandvik Coromant 5759029 CoroMill® 360 Milling Insert, 360L-19 06M-PH 4230 ANSI, S-Square, 360R/L..P-MH Insert, Carbide, 4230
Custom_Product_Images_Illustration
Sandvik Coromant 5759029 CoroMill® 360 Milling Insert, 360L-19 06M-PH 4230 ANSI, S-Square, 360R/L..P-MH Insert, Carbide, 4230
SKU1242136
MFGR #5759029
Your Cost: $32.60/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 360, 360R/L..P-MH Insert, S-Square, 0.7456 in Inscribed Circle, 1/4 in Thickness, 0.7456 in Length, PH Chipbreaker, 0.0629 in Corner Radius, 0 deg Rake, 90 deg Lead Angle, 0.1496 in Hole Dia, Manufacturer's Grade: 4230, ANSI Code: 360L-19 06M-PH 4230, ISO Code: 360L-19 06M-PH 4230, Left Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Milling Insert, Series: CoroMill® 360, 360R/L..P-MH Insert, S-Square, 0.7456 in Inscribed Circle, 1/4 in Thickness, 0.7456 in Length, PH Chipbreaker, 0.0629 in Corner Radius, 0 deg Rake, 90 deg Lead Angle, 0.1496 in Hole Dia, Manufacturer's Grade: 4230, ANSI Code: 360L-19 06M-PH 4230, ISO Code: 360L-19 06M-PH 4230, Left Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code 360L-1906M-PH 4230 Catalog Number 5759029 Corner Radius 0.063 in Country of Origin SE Finish MTCVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.6300 lb Hand of Insert Left Hole Diameter 0.1496 in ISO Code 360L-1906M-PH 4230 Lead Angle 60 ° Length 0.746 in Material Application Steel Series CoroMill® 360 Thickness 1/4 in UPC 11 69826249617 Width 0.746 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PH Inscribed Circle 0.746 in Insert Size 1906 Insert Style 360R/L..P-MH Manufacturer's Grade 4230 Material Carbide Material Grade P Shape Square Flat surface clamping interface 13 mm D cutting 2.2 mm L wiper edge 200 mm wiper edge radius 90 deg included 60 deg major cutting edge 15 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner S cutting edge condition 4 cutting edge Without fixing hole mounting 0.3 to 0.69 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | 360L-1906M-PH 4230 |
| Catalog Number | 5759029 |
| Corner Radius | 0.063 in |
| Country of Origin | SE |
| Finish | MTCVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.6300 lb |
| Hand of Insert | Left |
| Hole Diameter | 0.1496 in |
| ISO Code | 360L-1906M-PH 4230 |
| Lead Angle | 60 ° |
| Length | 0.746 in |
| Material Application | Steel |
| Series | CoroMill® 360 |
| Thickness | 1/4 in |
| UPC 11 | 69826249617 |
| Width | 0.746 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PH |
| Inscribed Circle | 0.746 in |
| Insert Size | 1906 |
| Insert Style | 360R/L..P-MH |
| Manufacturer's Grade | 4230 |
| Material | Carbide |
| Material Grade | P |
| Shape | Square |
| Flat surface clamping interface |
| 13 mm D cutting |
| 2.2 mm L wiper edge |
| 200 mm wiper edge radius |
| 90 deg included |
| 60 deg major cutting edge |
| 15 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 4 cutting edge |
| Without fixing hole mounting |
| 0.3 to 0.69 mm/r cutting feed |
