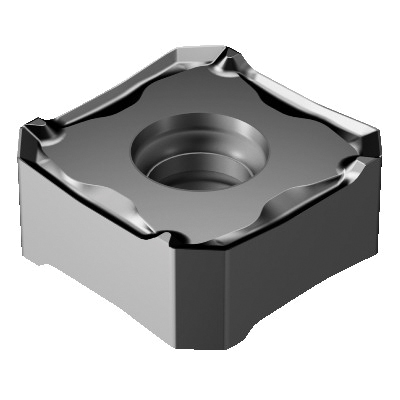

Sandvik Coromant 5758909 CoroMill® 345 Milling Insert, 345R-1305M-PL 1010, S-Square, 345R/L..M-PL Insert, Carbide, 1010, 345R-1305M-PL 1010
345R/345L Milling Inserts
1242084
MFG #: 5758909
Sandvik Coromant
26.06000
/ ea
- Alternate Catalog Number: 345R-1305M-PL 1010
- ANSI Code: 345R-1305M-PL 1010
- Catalog Number: 5758909
- Corner Radius: 0.031 in
- Country of Origin: JP
- Finish: PVD-TiAlN2 Coated
- Gross Weight Per Pack: 0.2500 lb
- Hand of Insert: Right
- Hole Diameter: 0.189 in
- ISO Code: 345R-1305M-PL 1010
- Item Group: 355
- Lead Angle: 45 °
- Length: 0.512 in
- Material Application: Hardened Steel
- Series: CoroMill® 345
- Thickness: 0.199 in
- UPC 11: 69826253895
- Width: 0.512 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PL
- Inscribed Circle: 0.512 in
- Insert Size: 1305
- Insert Style: 345R/L..M-PL
- Manufacturer's Grade: 1010
- Material: Carbide
- Material Grade: H
- Shape: Square
Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345R/L..M-PL Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, PL Chipbreaker, 0.0314 in Corner Radius, 30 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 1010, ANSI Code: 345R-1305M-PL 1010, ISO Code: 345R-1305M-PL 1010, Right Hand, Carbide, PVD Coated, Material Grade: H
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 2 mm L wiper edge |
| 107 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 8.8 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 4 corner |
| T cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.07 to 0.23 mm/r cutting feed |
