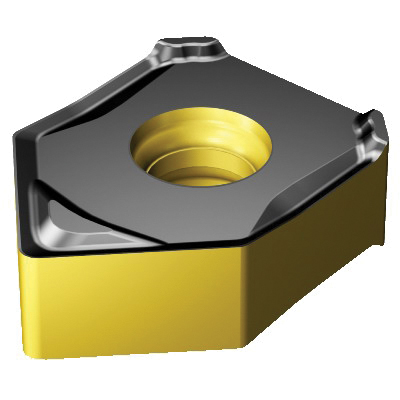

Sandvik Coromant 6428125 CoroMill® 345 Milling Insert, 345N-1305E-KW8 3330, S-Square, 345N-KW8 Insert, Carbide, 3330, 345N-1305E-KW8 3330
Custom_Product_Images_Illustration
Sandvik Coromant 6428125 CoroMill® 345 Milling Insert, 345N-1305E-KW8 3330, S-Square, 345N-KW8 Insert, Carbide, 3330, 345N-1305E-KW8 3330
SKU1232709
MFGR #6428125
Your Cost: $38.34/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345N-KW8 Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, KW8 Chipbreaker, 0.0393 in Corner Radius, 22 deg Positive Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 3330, ANSI Code: 345N-1305E-KW8 3330, ISO Code: 345N-1305E-KW8 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345N-KW8 Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, KW8 Chipbreaker, 0.0393 in Corner Radius, 22 deg Positive Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 3330, ANSI Code: 345N-1305E-KW8 3330, ISO Code: 345N-1305E-KW8 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
Alternate Catalog Number 345N-1305E-KW8 3330 ANSI Code 345N-1305E-KW8 3330 Catalog Number 6428125 Corner Radius 0.0393 in Country of Origin SE Finish CVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.1889 in ISO Code 345N-1305E-KW8 3330 Item Group 355 Lead Angle 45 deg Length 0.5118 in Series CoroMill® 345 Thickness 0.2204 in Type 13 mm Width Neutral Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KW8 Inscribed Circle 0.5118 in Insert Size KW8 Insert Style 345N-KW8 Manufacturer's Grade 3330 Material Carbide Material Grade K Rake 22 deg Positive Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 0 deg clearance 6 mm D cutting 8 mm L wiper edge 500 mm wiper edge radius 90 deg included 45 deg major cutting edge 8.8 mm L effective cutting edge 2-side cutting 20 life cycle state 1 corner T cutting edge condition 2 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 345N-1305E-KW8 3330 |
| ANSI Code | 345N-1305E-KW8 3330 |
| Catalog Number | 6428125 |
| Corner Radius | 0.0393 in |
| Country of Origin | SE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1889 in |
| ISO Code | 345N-1305E-KW8 3330 |
| Item Group | 355 |
| Lead Angle | 45 deg |
| Length | 0.5118 in |
| Series | CoroMill® 345 |
| Thickness | 0.2204 in |
| Type | 13 mm |
| Width | Neutral |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KW8 |
| Inscribed Circle | 0.5118 in |
| Insert Size | KW8 |
| Insert Style | 345N-KW8 |
| Manufacturer's Grade | 3330 |
| Material | Carbide |
| Material Grade | K |
| Rake | 22 deg Positive |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 8 mm L wiper edge |
| 500 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 8.8 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 1 corner |
| T cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
