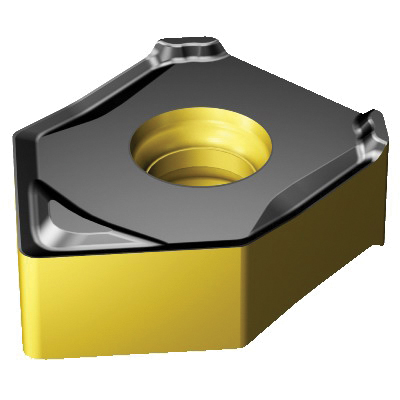

Sandvik Coromant 5910466 CoroMill® 345 Milling Insert, 345N-1305E-KW8 3220, S-Square, 345N-KW8 Insert, Carbide, 3220, 345N-1305E-KW8 3220
Custom_Product_Images_Illustration
Sandvik Coromant 5910466 CoroMill® 345 Milling Insert, 345N-1305E-KW8 3220, S-Square, 345N-KW8 Insert, Carbide, 3220, 345N-1305E-KW8 3220
SKU1242250
MFGR #5910466
Your Cost: $38.34/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345N-KW8 Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, KW8 Chipbreaker, 0.0393 in Corner Radius, 22 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 3220, ANSI Code: 345N-1305E-KW8 3220, ISO Code: 345N-1305E-KW8 3220, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345N-KW8 Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, KW8 Chipbreaker, 0.0393 in Corner Radius, 22 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 3220, ANSI Code: 345N-1305E-KW8 3220, ISO Code: 345N-1305E-KW8 3220, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number 345N-1305E-KW8 3220 ANSI Code 345N-1305E-KW8 3220 Catalog Number 5910466 Corner Radius 0.039 in Country of Origin SE Finish MTCVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.3000 lb Hand of Insert Neutral Hole Diameter 0.189 in ISO Code 345N-1305E-KW8 3220 Item Group 355 Lead Angle 45 ° Length 0.512 in Material Application Cast Iron Series CoroMill® 345 Thickness 0.199 in UPC 11 69826253871 Width 0.512 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KW8 Inscribed Circle 0.512 in Insert Size 1305 Insert Style 345N-KW8 Manufacturer's Grade 3220 Material CARBIDE Material Grade K Shape Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 0 deg clearance 6 mm D cutting 8 mm L wiper edge 500 mm wiper edge radius 90 deg included 45 deg major cutting edge 8.8 mm L effective cutting edge 2-side cutting 20 life cycle state 1 corner T cutting edge condition 2 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 345N-1305E-KW8 3220 |
| ANSI Code | 345N-1305E-KW8 3220 |
| Catalog Number | 5910466 |
| Corner Radius | 0.039 in |
| Country of Origin | SE |
| Finish | MTCVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.3000 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.189 in |
| ISO Code | 345N-1305E-KW8 3220 |
| Item Group | 355 |
| Lead Angle | 45 ° |
| Length | 0.512 in |
| Material Application | Cast Iron |
| Series | CoroMill® 345 |
| Thickness | 0.199 in |
| UPC 11 | 69826253871 |
| Width | 0.512 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KW8 |
| Inscribed Circle | 0.512 in |
| Insert Size | 1305 |
| Insert Style | 345N-KW8 |
| Manufacturer's Grade | 3220 |
| Material | CARBIDE |
| Material Grade | K |
| Shape | Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 8 mm L wiper edge |
| 500 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 8.8 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 1 corner |
| T cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
