Sandvik Coromant

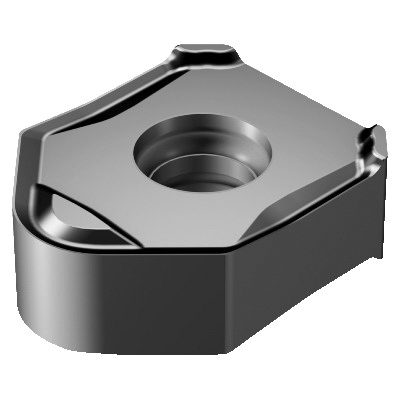

Sandvik Coromant 5906227 CoroMill® 345 Milling Insert, 345N-1305E-PW5 1010, S-Square, 345N-PW5 Insert, Carbide, 1010, 345N-1305E-PW5 1010
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5906227 CoroMill® 345 Milling Insert, 345N-1305E-PW5 1010, S-Square, 345N-PW5 Insert, Carbide, 1010, 345N-1305E-PW5 1010
SKU1242303
MFGR #5906227
Your Cost: $38.34/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345N-PW5 Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, PW5 Chipbreaker, 0.0393 in Corner Radius, 22 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 1010, ANSI Code: 345N-1305E-PW5 1010, ISO Code: 345N-1305E-PW5 1010, Neutral Hand, Carbide, PVD Coated, Material Grade: H
Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345N-PW5 Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, PW5 Chipbreaker, 0.0393 in Corner Radius, 22 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 1010, ANSI Code: 345N-1305E-PW5 1010, ISO Code: 345N-1305E-PW5 1010, Neutral Hand, Carbide, PVD Coated, Material Grade: H
Alternate Catalog Number 345N-1305E-PW5 1010 ANSI Code 345N-1305E-PW5 1010 Catalog Number 5906227 Corner Radius 0.039 in Country of Origin SE Finish PVD-TiAlN2 Coated Gross Weight Per Pack 0.3000 lb Hand of Insert Neutral Hole Diameter 0.189 in ISO Code 345N-1305E-PW5 1010 Item Group 355 Lead Angle 45 ° Length 0.512 in Material Application Hardened Steel Series CoroMill® 345 Thickness 0.199 in UPC 11 69826253872 Width 0.512 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PW5 Inscribed Circle 0.512 in Insert Size 1305 Insert Style 345N-PW5 Manufacturer's Grade 1010 Material Carbide Material Grade H Shape Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 0 deg clearance 6 mm D cutting 5 mm L wiper edge 500 mm wiper edge radius 90 deg included 45 deg major cutting edge 8.8 mm L effective cutting edge 2-side cutting 20 life cycle state 1 corner T cutting edge condition 2 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 345N-1305E-PW5 1010 |
| ANSI Code | 345N-1305E-PW5 1010 |
| Catalog Number | 5906227 |
| Corner Radius | 0.039 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN2 Coated |
| Gross Weight Per Pack | 0.3000 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.189 in |
| ISO Code | 345N-1305E-PW5 1010 |
| Item Group | 355 |
| Lead Angle | 45 ° |
| Length | 0.512 in |
| Material Application | Hardened Steel |
| Series | CoroMill® 345 |
| Thickness | 0.199 in |
| UPC 11 | 69826253872 |
| Width | 0.512 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PW5 |
| Inscribed Circle | 0.512 in |
| Insert Size | 1305 |
| Insert Style | 345N-PW5 |
| Manufacturer's Grade | 1010 |
| Material | Carbide |
| Material Grade | H |
| Shape | Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 5 mm L wiper edge |
| 500 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 8.8 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 1 corner |
| T cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
