Sandvik Coromant

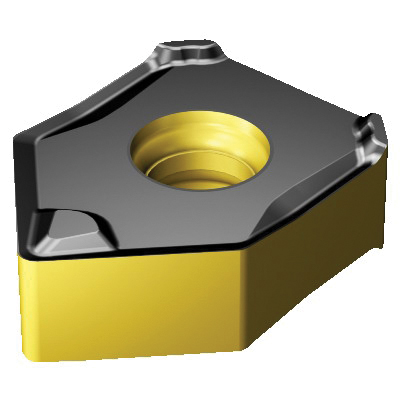

Sandvik Coromant 5861280 CoroMill® 345 Milling Insert, 345N-1305E-PW8 4230 ANSI, S-Square, 345N-PW8 Insert, Carbide, 4230
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5861280 CoroMill® 345 Milling Insert, 345N-1305E-PW8 4230 ANSI, S-Square, 345N-PW8 Insert, Carbide, 4230
SKU1242283
MFGR #5861280
Your Cost: $31.38/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345N-PW8 Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, PW8 Chipbreaker, 0.0393 in Corner Radius, 22 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 4230, ANSI Code: 345N-1305E-PW8 4230, ISO Code: 345N-1305E-PW8 4230, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345N-PW8 Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, PW8 Chipbreaker, 0.0393 in Corner Radius, 22 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 4230, ANSI Code: 345N-1305E-PW8 4230, ISO Code: 345N-1305E-PW8 4230, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code 345N-1305E-PW8 4230 Catalog Number 5861280 Corner Radius 0.039 in Country of Origin SE Finish MTCVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.3000 lb Hand of Insert Neutral Hole Diameter 0.189 in ISO Code 345N-1305E-PW8 4230 Lead Angle 45 ° Length 0.512 in Material Application Steel Series CoroMill® 345 Thickness 0.199 in UPC 11 69826252522 Width 0.512 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PW8 Inscribed Circle 0.512 in Insert Size 1305 Insert Style 345N-PW8 Manufacturer's Grade 4230 Material Carbide Material Grade P Shape Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 0 deg clearance 6 mm D cutting 8 mm L wiper edge 500 mm wiper edge radius 90 deg included 45 deg major cutting edge 8.8 mm L effective cutting edge 2-side cutting 20 life cycle state 4 corner T cutting edge condition 8 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 345N-1305E-PW8 4230 |
| Catalog Number | 5861280 |
| Corner Radius | 0.039 in |
| Country of Origin | SE |
| Finish | MTCVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.3000 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.189 in |
| ISO Code | 345N-1305E-PW8 4230 |
| Lead Angle | 45 ° |
| Length | 0.512 in |
| Material Application | Steel |
| Series | CoroMill® 345 |
| Thickness | 0.199 in |
| UPC 11 | 69826252522 |
| Width | 0.512 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PW8 |
| Inscribed Circle | 0.512 in |
| Insert Size | 1305 |
| Insert Style | 345N-PW8 |
| Manufacturer's Grade | 4230 |
| Material | Carbide |
| Material Grade | P |
| Shape | Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 8 mm L wiper edge |
| 500 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 8.8 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 4 corner |
| T cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
