Sandvik Coromant
Sandvik Coromant 5758890 T-Max® Q-Cut Slitting Insert, 330.20-40-AA H13A, 330.20-AA Insert, Carbide, H13A, 330.20-40-AA H13A

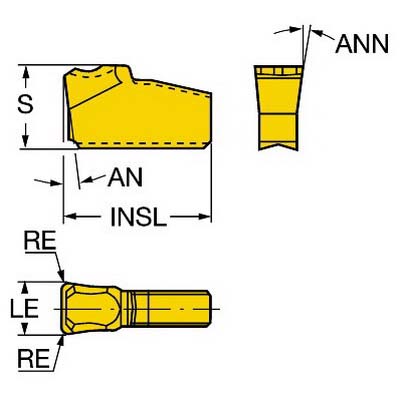

Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5758890 T-Max® Q-Cut Slitting Insert, 330.20-40-AA H13A, 330.20-AA Insert, Carbide, H13A, 330.20-40-AA H13A
SKU1229171
MFGR #5758890
Your Cost: $12.88/ea
List: Sandvik Coromant Slitting Insert, Series: T-Max® Q-Cut, 330.20-AA Insert, 0.3191 in Thickness, 0.5039 in Length, AA Chipbreaker, 0.0118 in Corner Radius, Manufacturer's Grade: H13A, ANSI Code: 330.20-40-AA H13A, ISO Code: 330.20-40-AA H13A, Neutral Hand, Carbide, Uncoated, Material Grade: K/N/S
Sandvik Coromant Slitting Insert, Series: T-Max® Q-Cut, 330.20-AA Insert, 0.3191 in Thickness, 0.5039 in Length, AA Chipbreaker, 0.0118 in Corner Radius, Manufacturer's Grade: H13A, ANSI Code: 330.20-40-AA H13A, ISO Code: 330.20-40-AA H13A, Neutral Hand, Carbide, Uncoated, Material Grade: K/N/S
ANSI Code 330.20-40-AA H13A Catalog Number 5758890 Corner Radius 0.0118 in Country of Origin JP Finish Uncoated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral ISO Code 330.20-40-AA H13A Lead Angle T-Max® Q-Cut Length 0.5039 in Material Application Cast Iron, Non-Ferrous Metals and Super Alloy Series T-Max® Q-Cut Thickness 0.3191 in Type Carbide Width Neutral Width UOM in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker AA Inscribed Circle 8.106 mm Insert Size 330.20-40-AA H13A Insert Style 330.20-AA Manufacturer's Grade H13A Material Carbide Material Grade K/N/S Rake K, N, S Shape 0.3 mm Concave clamping interface 7 deg clearance E cutting edge condition 4.12 mm W cutting 1-side cutting +/-0.1 mm corner radius tolerance 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | 330.20-40-AA H13A |
| Catalog Number | 5758890 |
| Corner Radius | 0.0118 in |
| Country of Origin | JP |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| ISO Code | 330.20-40-AA H13A |
| Lead Angle | T-Max® Q-Cut |
| Length | 0.5039 in |
| Material Application | Cast Iron, Non-Ferrous Metals and Super Alloy |
| Series | T-Max® Q-Cut |
| Thickness | 0.3191 in |
| Type | Carbide |
| Width | Neutral |
| Width UOM | in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | AA |
| Inscribed Circle | 8.106 mm |
| Insert Size | 330.20-40-AA H13A |
| Insert Style | 330.20-AA |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | K/N/S |
| Rake | K, N, S |
| Shape | 0.3 mm |
| Concave clamping interface |
| 7 deg clearance |
| E cutting edge condition |
| 4.12 mm W cutting |
| 1-side cutting |
| +/-0.1 mm corner radius tolerance |
| 20 life cycle state |
