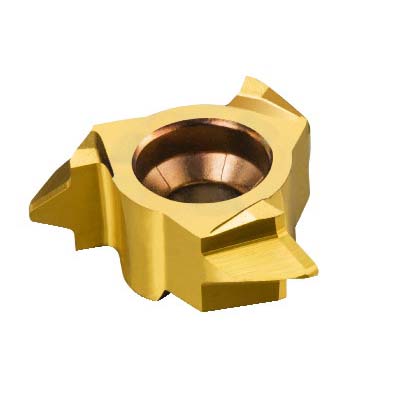

Sandvik Coromant 5758775 CoroMill® 327 Thread Milling Head, 327R06-12 19WH-TH 1025, 327..WH-TH Insert, Carbide, 1025, 327R06-12 19WH-TH 1025
327 Milling Inserts
1231314
MFG #: 5758775
Sandvik Coromant
93.58000
/ ea
- Alternate Catalog Number: 327R06-12 19WH-TH 1025
- ANSI Code: 327R06-12 19WH-TH 1025
- Catalog Number: 5758775
- Corner Radius: P30
- Country of Origin: TH
- Finish: PVD Coated
- Gross Weight Per Pack: 1 lb
- Hand of Insert: Right
- Hole Diameter: 3.6 mm
- Included Angle: 55
- ISO Code: 327R06-12 19WH-TH 1025
- Item Group: 350
- Lead Angle: TiCN + TiN
- Length: 0.1417 in
- Series: CoroMill® 327
- Thickness: 327R06-12 19WH-TH 1025
- Thread Standard: WH
- Thread Type: Internal
- Threads Per Inch: 19
- Type: Carbide
- UPC 11: 69826244994
- Width: 327..WH-TH
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: 327R06-12 19WH-TH 1025
- Cutting Direction: Right Hand
- Inscribed Circle: 3.6 mm in
- Insert Size: PVD Coated
- Insert Style: 327..WH-TH
- Manufacturer's Grade: 1025
- Material: Carbide
- Material Grade: K/M/N/P/S
- Rake: 327..WH-TH
- Shape: K, M, N, P, S
Sandvik Coromant Thread Milling Head, Series: CoroMill® 327, 327..WH-TH Insert, 0.1417 in Length, Manufacturer's Grade: 1025, ANSI Code: 327R06-12 19WH-TH 1025, ISO Code: 327R06-12 19WH-TH 1025, Right Hand, Carbide, PVD Coated, Material Grade: K/M/N/P/S
- Features
| 9.98 mm Dia neck |
| CoroMill® 327 adaptive interface |
| 0.86 mm D maximum cutting |
| 9.98 mm Dia body |
| 0 deg body half taper |
| 7.02 mm Dia core at face |
| Without coolant entry |
| 11.7 mm Dia cutting |
| Standard flute |
| EFW feed direction |
| 0 deg neutral helix flute |
| 90 deg cutting edge |
| 2.45 mm L body |
| 2.45 mm L functional |
| 3.6 mm L usable |
| 3.6 mm maximum overhang |
| WH55 thread form |
| 19 TPI |
| INT thread |
| 3 effective cutting edge |
