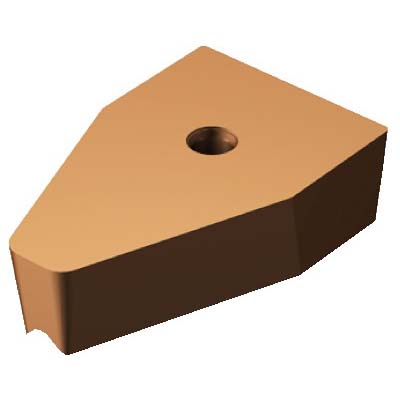

Sandvik Coromant 6155314 CoroMill® 170 Gear Milling Insert, 176M70-N170614E-PM 1030, L-Rectangle, 176M..-PM Insert, Carbide, 1030, 176M70-N170614E-PM 1030
176M Milling Inserts
1240827
MFG #: 6155314
Sandvik Coromant
47.70000
/ ea
- ANSI Code: 176M70-N170614E-PM 1030
- Catalog Number: 6155314
- Corner Radius: 0.0551 in
- Country of Origin: SE
- Finish: PVD-TiAlN Coated
- Gross Weight Per Pack: 0.6400 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.0866 in
- ISO Code: 176M70-N170614E-PM 1030
- Material Application: Steel
- Series: CoroMill® 176
- Thickness: 0.217 in
- UPC 11: 69826264552
- Width: 0.674 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PM
- Inscribed Circle: 0.673 in
- Insert Size: 70
- Insert Style: 176
- Manufacturer's Grade: 1030
- Material: Carbide
- Material Grade: P
- Shape: Rectangle
Sandvik Coromant Gear Milling Insert, Series: CoroMill® 170, 176M..-PM Insert, L-Rectangle, 0.673 in Inscribed Circle, 0.2165 in Thickness, 0.6736 in Width, PM Chipbreaker, 0.0551 in Corner Radius, 0 deg Rake, 0.0866 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 176M70-N170614E-PM 1030, ISO Code: 176M70-N170614E-PM 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: P
- Features
| 7 deg clearance |
| 18.2 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 1 corner |
| 1 cutting edge |
