Sandvik Coromant 5908572 CoroMill® 170 Gear Milling Insert, 170-12-240740E-PRHN 1030, L-Rectangle, 170..E-PRHN Insert, Carbide, 1030, 170-12-240740E-PRHN 1030

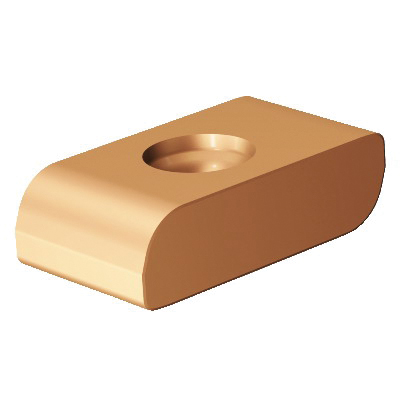

Custom_Product_Images_Illustration
Sandvik Coromant 5908572 CoroMill® 170 Gear Milling Insert, 170-12-240740E-PRHN 1030, L-Rectangle, 170..E-PRHN Insert, Carbide, 1030, 170-12-240740E-PRHN 1030
SKU1227862
MFGR #5908572
Your Cost: $46.82/ea
List: Sandvik Coromant Gear Milling Insert, Series: CoroMill® 170, 170..E-PRHN Insert, L-Rectangle, 0.551 in Inscribed Circle, 0.5511 in Thickness, 0.2755 in Width, 1/2 in Length, PRHN Chipbreaker, 0.1574 in Corner Radius, 0 deg Rake, 0.2362 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 170-12-240740E-PRHN 1030, ISO Code: 170-12-240740E-PRHN 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: P
Sandvik Coromant Gear Milling Insert, Series: CoroMill® 170, 170..E-PRHN Insert, L-Rectangle, 0.551 in Inscribed Circle, 0.5511 in Thickness, 0.2755 in Width, 1/2 in Length, PRHN Chipbreaker, 0.1574 in Corner Radius, 0 deg Rake, 0.2362 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 170-12-240740E-PRHN 1030, ISO Code: 170-12-240740E-PRHN 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: P
ANSI Code 170-12-240740E-PRHN 1030 Catalog Number 5908572 Corner Radius 0.1574 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0600 lb Hand of Insert Neutral Hole Diameter 0.2362 in Includes L - Rectangle ISO Code 170-12-240740E-PRHN 1030 Lead Angle 7 mm Length 1/2 in Material Application Steel Series CoroMill® 170 Thickness 0.5511 in Type 6 mm UPC 11 69826253704 Warranty 7 mm Width 0.2755 in Width UOM in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PRHN Inscribed Circle 0.551 in Insert Size P Insert Style 170..E-PRHN Manufacturer's Grade 1030 Material Carbide Material Grade P Rake 0 deg Shape L-Rectangle 0 deg clearance 24 mm L effective cutting edge 2-side cutting 20 life cycle state 2 corner 4 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | 170-12-240740E-PRHN 1030 |
| Catalog Number | 5908572 |
| Corner Radius | 0.1574 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0600 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2362 in |
| Includes | L - Rectangle |
| ISO Code | 170-12-240740E-PRHN 1030 |
| Lead Angle | 7 mm |
| Length | 1/2 in |
| Material Application | Steel |
| Series | CoroMill® 170 |
| Thickness | 0.5511 in |
| Type | 6 mm |
| UPC 11 | 69826253704 |
| Warranty | 7 mm |
| Width | 0.2755 in |
| Width UOM | in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PRHN |
| Inscribed Circle | 0.551 in |
| Insert Size | P |
| Insert Style | 170..E-PRHN |
| Manufacturer's Grade | 1030 |
| Material | Carbide |
| Material Grade | P |
| Rake | 0 deg |
| Shape | L-Rectangle |
| 0 deg clearance |
| 24 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 2 corner |
| 4 cutting edge |
| Screw clamp mounting |
