Sandvik Coromant

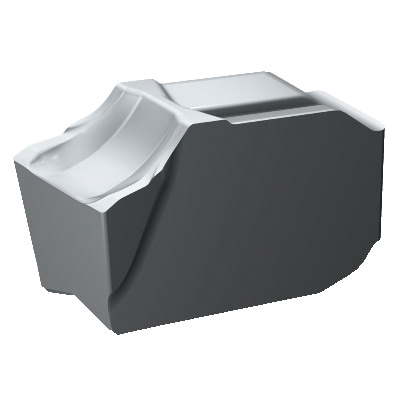

Sandvik Coromant 6917032 CoroMill® QD Grooving Insert, QD-NF-0250-010E-NL H13A, QD-N..E-NL Insert, 0.0984 in W Cutting, H13A, QD-NF-0250-010E-NL H13A
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6917032 CoroMill® QD Grooving Insert, QD-NF-0250-010E-NL H13A, QD-N..E-NL Insert, 0.0984 in W Cutting, H13A, QD-NF-0250-010E-NL H13A
SKU1254385
MFGR #6917032
Your Cost: $22.44/ea
List: Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..E-NL Insert, 0.0984 in Cutting Width, NL Chipbreaker, 0.0039 in Corner Radius, 0.122 in Thickness, 0.3937 in Length, Manufacturers Grade: H13A, ANSI Code: QD-NF-0250-010E-NL H13A, ISO Code: QD-NF-0250-010E-NL H13A, Neutral Hand, Carbide, Uncoated, Material Grade: N
Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..E-NL Insert, 0.0984 in Cutting Width, NL Chipbreaker, 0.0039 in Corner Radius, 0.122 in Thickness, 0.3937 in Length, Manufacturers Grade: H13A, ANSI Code: QD-NF-0250-010E-NL H13A, ISO Code: QD-NF-0250-010E-NL H13A, Neutral Hand, Carbide, Uncoated, Material Grade: N
Alternate Catalog Number QD-NF-0250-010E-NL H13A ANSI Code QD-NF-0250-010E-NL H13A Catalog Number 6917032 Country of Origin SE Finish Uncoated Gross Weight Per Pack 1 lb Hand of Insert Neutral Hole Diameter Carbide ISO Code QD-NF-0250-010E-NL H13A Item Group 350 Length 0.3937 in Material Grade N Series CoroMill® QD Shape Uncoated Thickness 0.122 in Type 0.1 mm Width 2.5 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker NL Corner Radius 0.0039 in Insert Size QD-NF-0250-010E-NL H13A Insert Style QD-N..E-NL Lead Angle N Manufacturer's Grade H13A Material Carbide Maximum Depth of Cut 10 mm Rake Carbide 7 deg clearance 20 life cycle state 0 deg body machine side 0.005 mm W cutting lower tolerance 0.055 mm W cutting upper tolerance Light operation Concave clamping F cutting edge condition 1-side cutting 0.01 - 0.25 mm/r cutting feed 7 insert mounting style code F insert seat size code E tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QD-NF-0250-010E-NL H13A |
| ANSI Code | QD-NF-0250-010E-NL H13A |
| Catalog Number | 6917032 |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Neutral |
| Hole Diameter | Carbide |
| ISO Code | QD-NF-0250-010E-NL H13A |
| Item Group | 350 |
| Length | 0.3937 in |
| Material Grade | N |
| Series | CoroMill® QD |
| Shape | Uncoated |
| Thickness | 0.122 in |
| Type | 0.1 mm |
| Width | 2.5 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | NL |
| Corner Radius | 0.0039 in |
| Insert Size | QD-NF-0250-010E-NL H13A |
| Insert Style | QD-N..E-NL |
| Lead Angle | N |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Maximum Depth of Cut | 10 mm |
| Rake | Carbide |
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| 0.005 mm W cutting lower tolerance |
| 0.055 mm W cutting upper tolerance |
| Light operation |
| Concave clamping |
| F cutting edge condition |
| 1-side cutting |
| 0.01 - 0.25 mm/r cutting feed |
| 7 insert mounting style code |
| F insert seat size code |
| E tolerance class insert |
