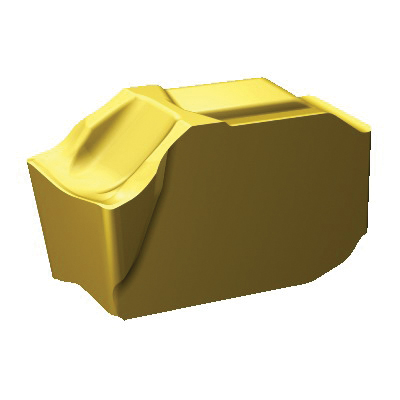

Sandvik Coromant 6718923 CoroMill® QD Grooving Insert, QD-NG-0300-020E-SM S40T ANSI, QD-N..E-SM Insert, 0.1181 in W Cutting
Custom_Product_Images_Illustration
Sandvik Coromant 6718923 CoroMill® QD Grooving Insert, QD-NG-0300-020E-SM S40T ANSI, QD-N..E-SM Insert, 0.1181 in W Cutting
SKU1254379
MFGR #6718923
Your Cost: $28.80/ea
List: Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..E-SM Insert, 0.1181 in Cutting Width, SM Chipbreaker, 0.0078 in Corner Radius, 0.122 in Thickness, 0.3937 in Length, Manufacturers Grade: S40T, ANSI Code: QD-NG-0300-020E-SM S40T, ISO Code: QD-NG-0300-020E-SM S40T, Neutral Hand, Carbide, CVD Coated, Material Grade: M/S
Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..E-SM Insert, 0.1181 in Cutting Width, SM Chipbreaker, 0.0078 in Corner Radius, 0.122 in Thickness, 0.3937 in Length, Manufacturers Grade: S40T, ANSI Code: QD-NG-0300-020E-SM S40T, ISO Code: QD-NG-0300-020E-SM S40T, Neutral Hand, Carbide, CVD Coated, Material Grade: M/S
Alternate Catalog Number QD-NG-0300-020E-SM S40T ANSI Code QD-NG-0300-020E-SM S40T Catalog Number 6718923 Country of Origin SE Finish CVD Coated Gross Weight Per Pack 1 lb Hand of Insert Neutral Hole Diameter Carbide ISO Code QD-NG-0300-020E-SM S40T Item Group 350 Length 0.3937 in Material Grade M/S Series CoroMill® QD Shape 3 mm Thickness 0.122 in Type QD-N..E-SM Width 10 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SM Corner Radius 0.0078 in Cutting Direction Neutral Cutting Width 0.0000 Insert Size SM Insert Style QD-N..E-SM Lead Angle Neutral Manufacturer's Grade S40T Material Carbide Maximum Depth of Cut Carbide Rake M, S 7 deg clearance 20 life cycle state 0 deg body machine side 0.005 mm W cutting lower tolerance 0.055 mm W cutting upper tolerance Medium operation Concave clamping E cutting edge condition 1-side cutting 0.04 - 0.12 mm/r cutting feed 7 insert mounting style code G insert seat size code E tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QD-NG-0300-020E-SM S40T |
| ANSI Code | QD-NG-0300-020E-SM S40T |
| Catalog Number | 6718923 |
| Country of Origin | SE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Neutral |
| Hole Diameter | Carbide |
| ISO Code | QD-NG-0300-020E-SM S40T |
| Item Group | 350 |
| Length | 0.3937 in |
| Material Grade | M/S |
| Series | CoroMill® QD |
| Shape | 3 mm |
| Thickness | 0.122 in |
| Type | QD-N..E-SM |
| Width | 10 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SM |
| Corner Radius | 0.0078 in |
| Cutting Direction | Neutral |
| Cutting Width | 0.0000 |
| Insert Size | SM |
| Insert Style | QD-N..E-SM |
| Lead Angle | Neutral |
| Manufacturer's Grade | S40T |
| Material | Carbide |
| Maximum Depth of Cut | Carbide |
| Rake | M, S |
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| 0.005 mm W cutting lower tolerance |
| 0.055 mm W cutting upper tolerance |
| Medium operation |
| Concave clamping |
| E cutting edge condition |
| 1-side cutting |
| 0.04 - 0.12 mm/r cutting feed |
| 7 insert mounting style code |
| G insert seat size code |
| E tolerance class insert |
