Sandvik Coromant

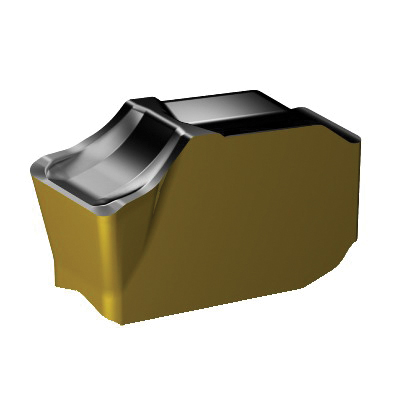

Sandvik Coromant 6657053 CoroMill® QD Grooving Insert, QD-NF-0250-035M-KM 3330 ANSI, QD-N..M-KM Insert, 0.0984 in W Cutting
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6657053 CoroMill® QD Grooving Insert, QD-NF-0250-035M-KM 3330 ANSI, QD-N..M-KM Insert, 0.0984 in W Cutting
SKU1243778
MFGR #6657053
Your Cost: $21.55/ea
List: Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..M-KM Insert, 0.0984 in Cutting Width, KM Chipbreaker, 0.0137 in Corner Radius, 0.122 in Thickness, Manufacturers Grade: 3330, ANSI Code: QD-NF-0250-035M-KM 3330, ISO Code: QD-NF-0250-035M-KM 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..M-KM Insert, 0.0984 in Cutting Width, KM Chipbreaker, 0.0137 in Corner Radius, 0.122 in Thickness, Manufacturers Grade: 3330, ANSI Code: QD-NF-0250-035M-KM 3330, ISO Code: QD-NF-0250-035M-KM 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
Alternate Catalog Number QD-NF-0250-035M-KM 3330 ANSI Code QD-NF-0250-035M-KM 3330 Catalog Number 6657053 Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 4.8500 lb ISO Code QD-NF-0250-035M-KM 3330 Item Group 350 Material Grade K Series CoroMill® QD Thickness 0.122 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KM Corner Radius 0.014 in Cutting Direction Neutral Cutting Width 0.0000 in Insert Size F Insert Style QD-N Manufacturer's Grade 3330 Material Carbide 7 deg clearance 10 life cycle state 0 deg body machine side 0.005 mm W cutting lower tolerance 0.105 mm W cutting upper tolerance Medium operation Concave clamping E cutting edge condition 1-side cutting 0.04 - 0.15 mm/r cutting feed 7 insert mounting style code F insert seat size code M tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QD-NF-0250-035M-KM 3330 |
| ANSI Code | QD-NF-0250-035M-KM 3330 |
| Catalog Number | 6657053 |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 4.8500 lb |
| ISO Code | QD-NF-0250-035M-KM 3330 |
| Item Group | 350 |
| Material Grade | K |
| Series | CoroMill® QD |
| Thickness | 0.122 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KM |
| Corner Radius | 0.014 in |
| Cutting Direction | Neutral |
| Cutting Width | 0.0000 in |
| Insert Size | F |
| Insert Style | QD-N |
| Manufacturer's Grade | 3330 |
| Material | Carbide |
| 7 deg clearance |
| 10 life cycle state |
| 0 deg body machine side |
| 0.005 mm W cutting lower tolerance |
| 0.105 mm W cutting upper tolerance |
| Medium operation |
| Concave clamping |
| E cutting edge condition |
| 1-side cutting |
| 0.04 - 0.15 mm/r cutting feed |
| 7 insert mounting style code |
| F insert seat size code |
| M tolerance class insert |
