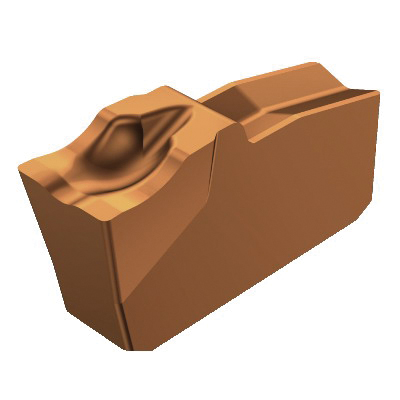

Sandvik Coromant 5736917 T-Max® Q-Cut, N151.2-200-5F 1125, N151.2-5F Insert, Carbide, 1125, N151.2-200-5F 1125
N151 Cut-off & Parting Inserts
996252
MFG #: 5736917
Sandvik Coromant
16.76000
/ ea
- Alternate Catalog Number: N151.2-200-5F 1125
- ANSI Code: N151.2-200-5F 1125
- Catalog Number: 5736917
- Country of Origin: JP
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0300 lb
- Hand of Insert: Neutral
- Hole Diameter: Neutral
- Included Angle: K, M, P, S
- Inscribed Circle: Carbide
- ISO Code: N151.2-200-5F 1125
- Item Group: 310
- Length: 0.174 in
- Material Grade: K/M/P/S
- Series: T-Max® Q-Cut
- Shape: N151.2-5F
- Thickness: 0.2211 in
- Type: 2 mm
- UPC 11: 69826242300
- UPC 12: 69826242300
- Width: 0.0078 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: 5F
- Corner Radius: 0.007 in
- Insert Size: K, M, P, S
- Insert Style: N151.2-5F
- Manufacturer's Grade: 1125
- Material: Carbide
Sandvik Coromant Parting Insert, Series: T-Max® Q-Cut, N151.2-5F Insert, 0.2211 in Thickness, 0.0078 in Width, 0.174 in Length, 5F Chipbreaker, 0.007 in Corner Radius, Manufacturer's Grade: 1125, ANSI Code: N151.2-200-5F 1125, ISO Code: N151.2-200-5F 1125, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
- Features
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| Finishing operation |
| Concave clamping |
| -0.03 mm W cutting lower tolerance |
| 0.03 mm W cutting upper tolerance |
| -0.05 mm corner radius lower tolerance |
| 0.05 mm corner radius upper tolerance |
| E cutting edge condition |
| 0 deg lead |
| 1 edge |
| V or rail clamp with screw mounting |
| Positive rake |
| 0.03 - 0.15 mm/r cutting feed |
| 7 insert mounting style code |
| 20 insert seat size code |
