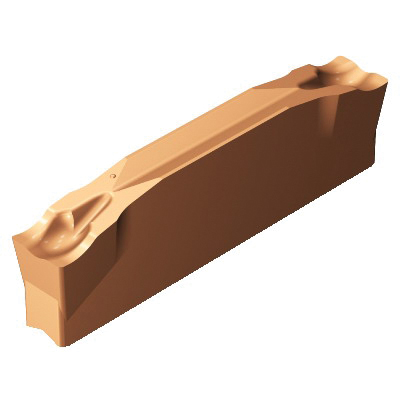

Sandvik Coromant 5736611 CoroCut® 1-2, N123J2-0500-0002-CM 1125, N123x2-CM Insert, Carbide, 1125, N123J2-0500-0002-CM 1125
N123 Cut-off & Parting Inserts
407565
MFG #: 5736611
Sandvik Coromant
38.41000
/ ea
- Alternate Catalog Number: N123J2-0500-0002-CM 1125
- ANSI Code: N123J2-0500-0002-CM 1125
- Catalog Number: 5736611
- Country of Origin: SE
- Finish: PVD-TiAlN Coated
- Gross Weight Per Pack: 0.2300 lb
- Hand of Insert: Neutral
- ISO Code: N123J2-0500-0002-CM 1125
- Item Group: 320
- Length: 0.97 in
- Material Grade: K, M, N, P, S
- Series: CoroCut® 1-2
- Thickness: 0.1712 in
- UPC 11: 69826239819
- UPC 12: 69826239819
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: CM
- Corner Radius: 0.008 in
- Cutting Width: 0.0000 in
- Insert Size: J
- Insert Style: N123x2
- Lead Angle: 0 °
- Manufacturer's Grade: 1125
- Material: Carbide
- Relief Angle: 7 °
Sandvik Coromant Parting Insert, Series: CoroCut® 1-2, N123x2-CM Insert, 0.1712 in Thickness, 0.1968 in Width, 0.97 in Length, CM Chipbreaker, 0.007 in Corner Radius, Manufacturer's Grade: 1125, ANSI Code: N123J2-0500-0002-CM 1125, ISO Code: N123J2-0500-0002-CM 1125, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
- Features
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| Medium operation |
| Concave clamping |
| 0 mm cutting width lower tolerance |
| 0.1 mm W cutting upper tolerance |
| -0.1 mm corner radius lower tolerance |
| 0.1 mm corner radius upper tolerance |
| E cutting edge condition |
| 0 deg lead |
| 2 edges |
| V or rail clamp with screw mounting |
| Positive rake |
| 0.07 - 0.3 mm/r cutting feed |
| 7 insert mounting style code |
| J insert seat size code |
