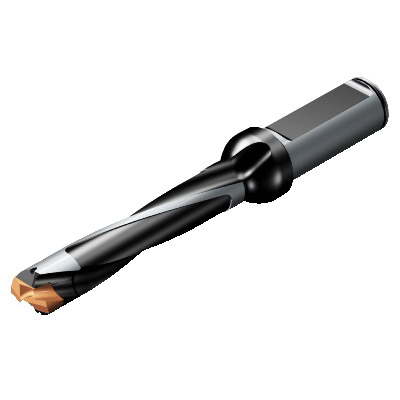

Sandvik Coromant 6035645 CoroDrill® 870 Exchangeable Tip Drill, 870-1250-11LX063-5
Replaceable-Tip Drills
1200848
MFG #: 6035645
Sandvik Coromant
422.06000
/ ea
- Alternate Catalog Number: 870-1250-11LX063-5
- ANSI Code: 870-1250-11LX063-5
- Catalog Number: 6035645
- Country of Origin: SE
- Gross Weight Per Pack: 0.3600 lb
- Insert Size: 0.2952 in
- Item Group: 446
- Material: Steel
- Number of Cutting Edges: 2
- UPC 11: 69826265914
- UPC 12: 69826265914
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Cutting Direction: Right Hand
- Series: CoroDrill® 870
Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill® 870, ANSI Code: 870-1250-11LX063-5, 0.2952 in Insert, 2 Edges, Right Hand Cutting, Steel
- Features
| 870..LX-5 tool style |
| 0 deg body half taper |
| 20 life cycle state |
| Cylindrical/clamping shank |
| Axial concentric entry |
| 10 bar coolant |
| Integrated screw clamping |
| Axial inclined exit |
| 12.9 mm Dia cutting |
| 15.875 mm Dia connection |
| 20 deg right hand flute |
| 69 mm L body |
| 80.02 mm maximum overhang |
| 1.98 mm L point |
| 15000 r/min |
| H9 achievable hole tolerance |
| 13.9 mm H shank |
| EFW feed direction |
| 12.5 - 12.99 mm drill |
| 5/8 in Dia x 48 mm shank |
