Sandvik Coromant 5742818 U-Max®, 1.0681 in Cutter Head, 6.8897 in OAL, Steel

Chamfer Mills
786426 MFG #: 5742818
Sandvik Coromant
406.43000 / ea
Sandvik_5742818
  • Alternate Catalog Number: R215.64-12A20-4512
  • Catalog Number: 5742818
  • Country of Origin: SE
  • Cutting Diameter: 0.4606 in
  • Cutting Direction: Right Hand
  • Gross Weight Per Pack: 0.19800 lb
  • Item Group: 440
  • Length of Cut: 0.1574 to 0.3094 in
  • Series: U-Max®
  • Shank Diameter: 0.7874 in
  • Shank Type: Cylinder
  • UPC 11: 69826212956
  • UPC 12: 69826212956
  • Stock Status: NONSTOCK
  • Brand: Sandvik Coromant
  • Manufacturer: Sandvik Coromant
  • Cutter Head Diameter: 1.0681 in
  • Material: Steel
  • Overall Length: 6.8897 in

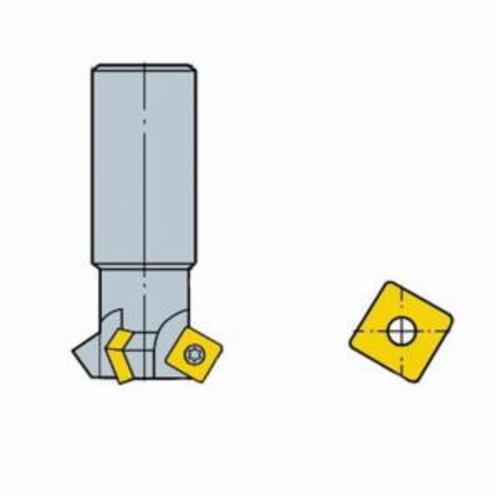

Sandvik Coromant Chamfer Milling Cutter, Series: U-Max®, 1.0681 in Cutter Head Dia, 6.8897 in Overall Length, Cylinder Shank, 0.7874 in Shank Dia, Right Hand Cutting, 0.4606 in Cutting Dia, 0.1574 to 0.3094 in Length of Cut, Steel
QTY
Add to Wishlist
  • Features
Cylindrical shank machine side adaptive interface without clamping
19.4 mm Dia body
1 cutting item
Without coolant entry
40 - 60 deg insert screw clamping interface
45 deg cutting edge
37.8 mm Dia body
20 life cycle state
175 mm L functional
SPMT 12 04 08 compatible insert
37.8 mm overhang
25200 r/min
3 Nm torque
R215.64-..A tool style
1 effective cutting edge
ANSI Code: R215.64-12A20-4512
ISO Code: R215.64-12A20-4512
