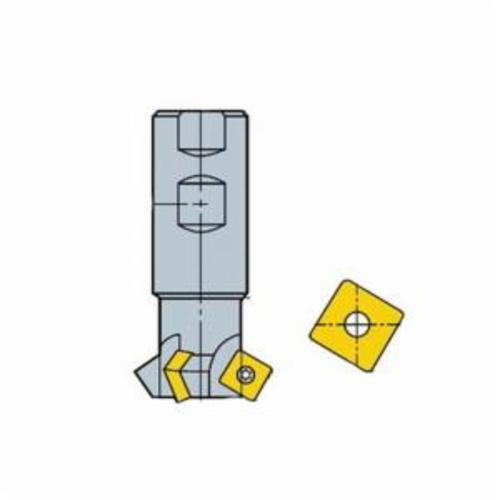

Sandvik Coromant 5740211 U-Max®, 0.9027 in Cutter Head, 4.5275 in OAL, Steel
Custom_Product_Images_Illustration
Sandvik Coromant 5740211 U-Max®, 0.9027 in Cutter Head, 4.5275 in OAL, Steel
SKU198751
MFGR #5740211
Your Cost: $416.20/ea
Sandvik Coromant Chamfer Milling Cutter, Series: U-Max®, 0.9027 in Cutter Head Dia, 4.5275 in Overall Length, Weldon Shank, 3/4 in Shank Dia, Right Hand Cutting, 0.4724 in Cutting Dia, 0.2362 to 0.3787 in Length of Cut, Steel
Sandvik Coromant Chamfer Milling Cutter, Series: U-Max®, 0.9027 in Cutter Head Dia, 4.5275 in Overall Length, Weldon Shank, 3/4 in Shank Dia, Right Hand Cutting, 0.4724 in Cutting Dia, 0.2362 to 0.3787 in Length of Cut, Steel
Alternate Catalog Number RA215.64-12M19-6012 Catalog Number 5740211 Country of Origin SE Cutting Diameter 0.4724 in Cutting Direction Right Hand Gross Weight Per Pack 0.6200 lb Item Group 440 Length of Cut 0.2362 to 0.3787 in Series U-Max® Shank Diameter 3/4 in Shank Type Weldon UPC 11 69826250144 UPC 12 69826250144 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutter Head Diameter 0.9027 in Material Steel Overall Length 4.5275 in Weldon (DIN1835-B / DIN6535-HB) machine side adaptive interface 17.4 mm Dia body 1 cutting item Without coolant entry 40 - 60 deg insert screw clamping interface 17.15 mm H shank 30 - 60 deg cutting edge 27.7 mm Dia body 20 life cycle state 115 mm L functional SPMT 12 04 08 compatible insert 27.7 mm overhang 25200 r/min 3 Nm torque RA215.64..Mxx tool style 1 effective cutting edge ANSI Code: RA215.64-12M19-6012 ISO Code: RA215.64-12M19-6012
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RA215.64-12M19-6012 |
| Catalog Number | 5740211 |
| Country of Origin | SE |
| Cutting Diameter | 0.4724 in |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.6200 lb |
| Item Group | 440 |
| Length of Cut | 0.2362 to 0.3787 in |
| Series | U-Max® |
| Shank Diameter | 3/4 in |
| Shank Type | Weldon |
| UPC 11 | 69826250144 |
| UPC 12 | 69826250144 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutter Head Diameter | 0.9027 in |
| Material | Steel |
| Overall Length | 4.5275 in |
| Weldon (DIN1835-B / DIN6535-HB) machine side adaptive interface |
| 17.4 mm Dia body |
| 1 cutting item |
| Without coolant entry |
| 40 - 60 deg insert screw clamping interface |
| 17.15 mm H shank |
| 30 - 60 deg cutting edge |
| 27.7 mm Dia body |
| 20 life cycle state |
| 115 mm L functional |
| SPMT 12 04 08 compatible insert |
| 27.7 mm overhang |
| 25200 r/min |
| 3 Nm torque |
| RA215.64..Mxx tool style |
| 1 effective cutting edge |
| ANSI Code: RA215.64-12M19-6012 |
| ISO Code: RA215.64-12M19-6012 |
