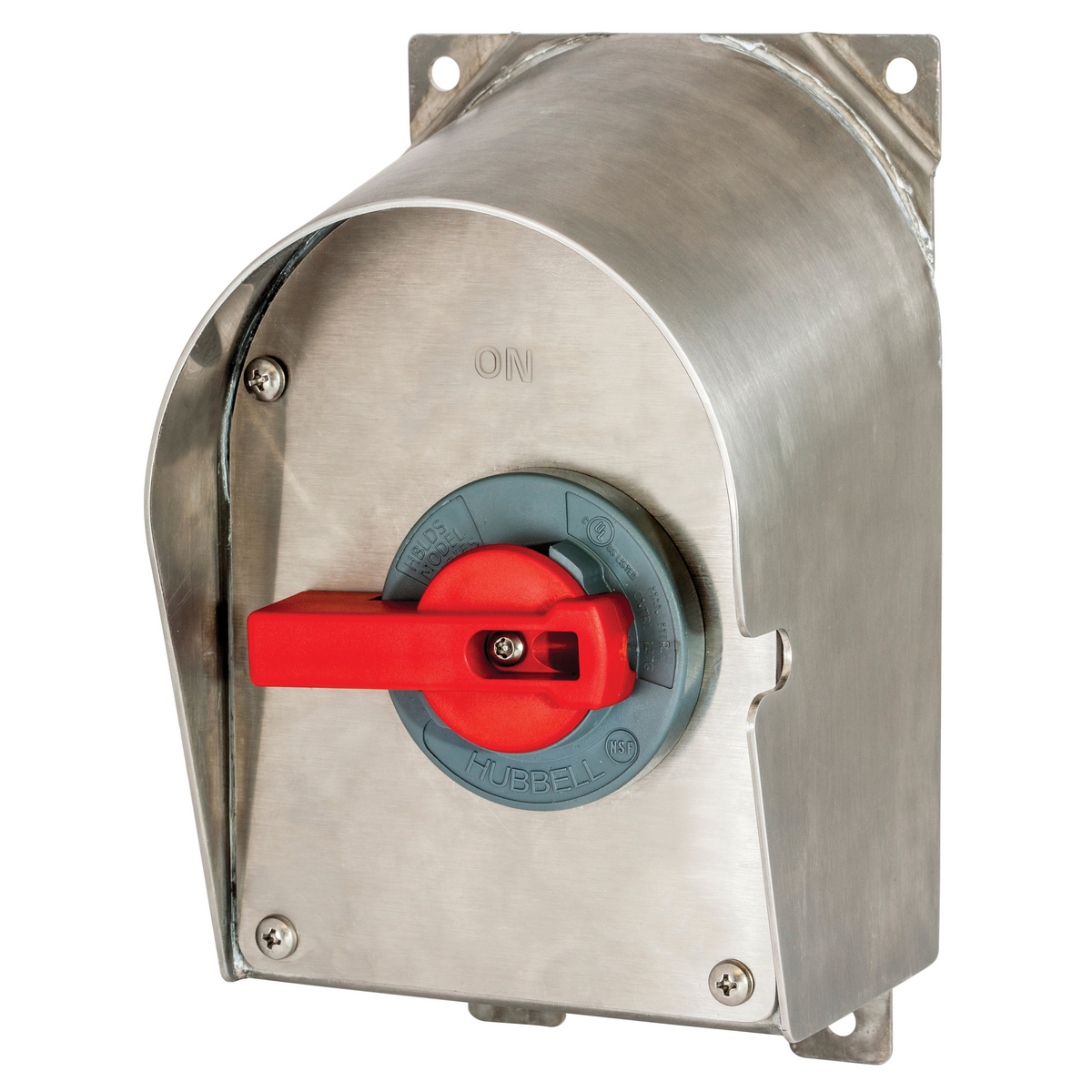

Hubbell Hubbell Wiring Device-Kellems Circuit-Lock® HBLDS10SSRVFD Sloped Top Standard Unfused Enclosed Disconnect Switch With AC2 Auxiliary Contacts, 600 V, 100 A, 50 hp, 3 Poles
Custom_Product_Images_Illustration
Hubbell Hubbell Wiring Device-Kellems Circuit-Lock® HBLDS10SSRVFD Sloped Top Standard Unfused Enclosed Disconnect Switch With AC2 Auxiliary Contacts, 600 V, 100 A, 50 hp, 3 Poles
SKU1411758
MFGR #HBLDS10SSRVFD
Your Cost: $1,488.26/ea
List: Wiring Device-Kellems Circuit-Lock® Enclosed Disconnect Switch, Sloped Top Standard Unfused, 600 V, 100 A, 50 hp, 3 ph, 3 Pole, 65 kA Short Circuit, Type 4X/IP69K Enclosure, Threaded Mounting, Screw Terminal, -40 deg C, 11.41 x 7.66 x 6.1 in, Stainless Steel
Wiring Device-Kellems Circuit-Lock® Enclosed Disconnect Switch, Sloped Top Standard Unfused, 600 V, 100 A, 50 hp, 3 ph, 3 Pole, 65 kA Short Circuit, Type 4X/IP69K Enclosure, Threaded Mounting, Screw Terminal, -40 deg C, 11.41 x 7.66 x 6.1 in, Stainless Steel
Application For use with variable frequency drives, motor starting without overload protection, indoor and outdoor applications ARRA Compliant C Buy American Compliant C Catalog Number HBLDS10SSRVFD Country of Origin PL Currency USD Current Rating 100;100 Enclosure Type Type 4X, IP69k EU RoHS Indicator C Gross Weight Per Pack 10.0000 lb Gross Weight per Pack Metric 5.35 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509025 Height 7.90 in Height [Metric] 20.0660 cm Length 13.10 in Length [Metric] 33.2740 cm Power Rating 36,000 W Returnable N UNSPSC 39121521 UPC 11 78358554165 UPC 12 783585541655 Width 9.40 in Width [Metric] 23.8760 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell For use with variable frequency drives, motor starting without overload protection, indoor and outdoor applications Fixed offset 1/4 in mounting feet meet NEC airspace requirements for metal enclosures Labelless markings on the cover Highly visible red handle which meets OSHA lockout/tagout capabilities Cover cannot be removed with switch in the "ON" position Sloped top design sheds water and debris Integrates a verified break before break auxiliary contact factory installed in HBLDS series Prevents downtime from out of sequence equipment shutdowns Accepts up to 2 Auxiliary contacts
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For use with variable frequency drives, motor starting without overload protection, indoor and outdoor applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBLDS10SSRVFD |
| Country of Origin | PL |
| Currency | USD |
| Current Rating | 100;100 |
| Enclosure Type | Type 4X, IP69k |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 10.0000 lb |
| Gross Weight per Pack Metric | 5.35 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509025 |
| Height | 7.90 in |
| Height [Metric] | 20.0660 cm |
| Length | 13.10 in |
| Length [Metric] | 33.2740 cm |
| Power Rating | 36,000 W |
| Returnable | N |
| UNSPSC | 39121521 |
| UPC 11 | 78358554165 |
| UPC 12 | 783585541655 |
| Width | 9.40 in |
| Width [Metric] | 23.8760 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| For use with variable frequency drives, motor starting without overload protection, indoor and outdoor applications |
| Fixed offset 1/4 in mounting feet meet NEC airspace requirements for metal enclosures |
| Labelless markings on the cover |
| Highly visible red handle which meets OSHA lockout/tagout capabilities |
| Cover cannot be removed with switch in the "ON" position |
| Sloped top design sheds water and debris |
| Integrates a verified break before break auxiliary contact factory installed in HBLDS series |
| Prevents downtime from out of sequence equipment shutdowns |
| Accepts up to 2 Auxiliary contacts |
