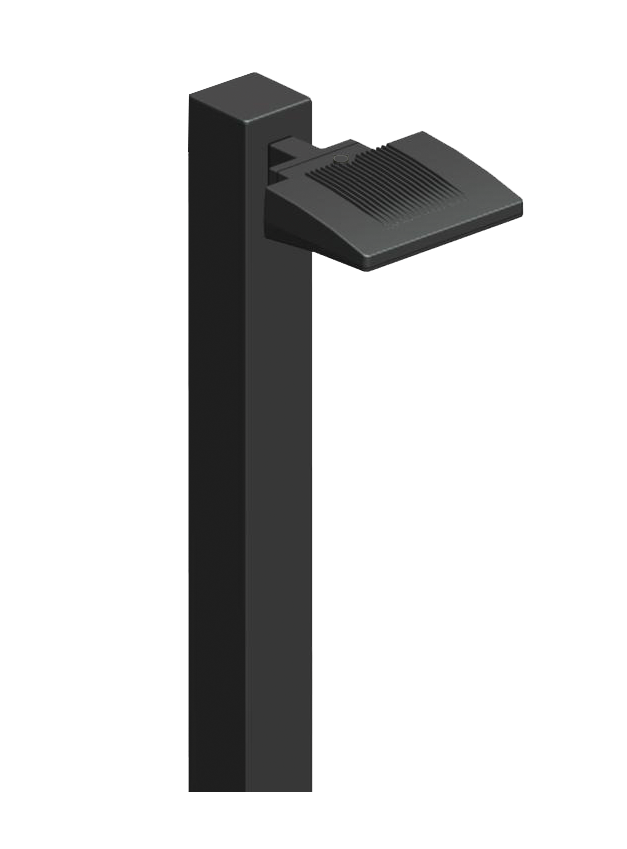

RAB Lighting ALED26 Area Lighting, LED Lamp, 30 W Fixture, 120/208/240/277 VAC, Bronze Housing
Area Lighting
669173
MFG #: ALED26
RAB
348.10000
/ ea
- Alternate Catalog Number: 00019813027296
- Amperage Rating: 0.26/0.16/0.14/0.12 A
- Application: Outdoor
- ARRA Compliant: X
- Average Life: 100000 hr
- Ballast Type: Class 2 Constant Current
- Buy American Compliant: C
- Catalog Number: ALED26
- Color Rendering Index [CRI]: 72
- Color Temperature: 5000 K
- Country of Origin: TW
- Currency: USD
- Dimensions: 11-1/4 in L x 9-1/2 in W x 2-7/8 in H
- Enclosure Type: IP66
- EU RoHS Indicator: N
- Gross Volume Per Pack: 0.21
- Gross Volume per Pack Metric: 0.01
- Gross Weight Per Pack: 6.5000 lb
- Gross Weight per Pack Metric: 2.95
- Gross Weight UOM Metric: kg
- Height: 2.80 in
- Height [Metric]: 7.1120 cm
- Housing Material: Die Cast Aluminum
- Lamp Wattage: 26 W
- Length: 12.80 in
- Length [Metric]: 32.5120 cm
- Light Color: Cool White
- Lumens: 1816 Lumens
- Mounting Type: Arm
- Series: ALED®
- Standards: UL ListedDark Sky Approved
- Type: Standard
- UNSPSC: 39112102
- UPC 11: 01981302729
- UPC 12: 019813027296
- Wattage: 26 W
- Width: 10.00 in
- Width [Metric]: 25.4000 cm
- Stock Status: NONSTOCK
- Brand: RAB
- Manufacturer: RAB Lighting Inc.
- Fixture Wattage: 30 W
- Housing Finish: Bronze
- Lamp Type: LED
- Voltage Rating: 120/208/240/277 VAC
RAB Area Lighting, 120/208/240/277 VAC, 30 W Fixture, 0.26/0.16/0.14/0.12 A, LED Lamp, 26 W Lamp, 100000 hr Average Life, 5000 K Color, 70 CRI CRI, 2662 Lumens, IP66, Arm Mount, Aluminum Housing, Bronze Housing, 11-1/4 in L x 9-1/2 in W x 2-7/8 in H
- http://www.rabweb.com(Seller Home Page URL)
- Install Instructions 1 URL - 11274_O75IFBK98WAZC1R2.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11274_RFQO9265UG14ZMSC.pdf(Spec Sheet URL)
- Tech Drawing URL - 11274_ID-DRW-v1-aled26_2.png(Tech Drawing URL)
- Video - https://youtube.com/embed/8qDURVbzqxY(Video)
- Warranty URL - 11274_ID-WAR-v2-Website_Terms_of_Use.pdf(Warranty URL)
- Warranty URL - Website_Terms_of_Use.pdf(Warranty URL)
- Applications
- Features
| OUTDOOR |
| LED |
| High temperature silicone gaskets |
| Suitable for use in 40 deg C ambient temperature |
| 0.27 effective projected area |
| High output LED light engine |
| Maintains 70% of initial lumens at 100000 hr |
| Weatherproof high temperature silicone gaskets |
| Superior heat sinking with die cast aluminum housing and external fins |
| Constant current bulb spacing |
| Cast aluminum thermal management system for optimal heat sinking, the LPACK is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature |
| LPACK complies with California title 24 building and electrical codes |
| Precision die cast aluminum housing, lens frame and mounting plate |
| RAB LEDs exceed industry standards for chromatic stability |
| RAB LEDs exceed industry standards for chromatic stability |
| 0.26 A at 120 VAC, 0.16 A at 208 VAC, 0.14 A at 240 VAC, 0.12 A at 277 VAC |
| RAB LEDs exceed industry standards for chromatic stability |
