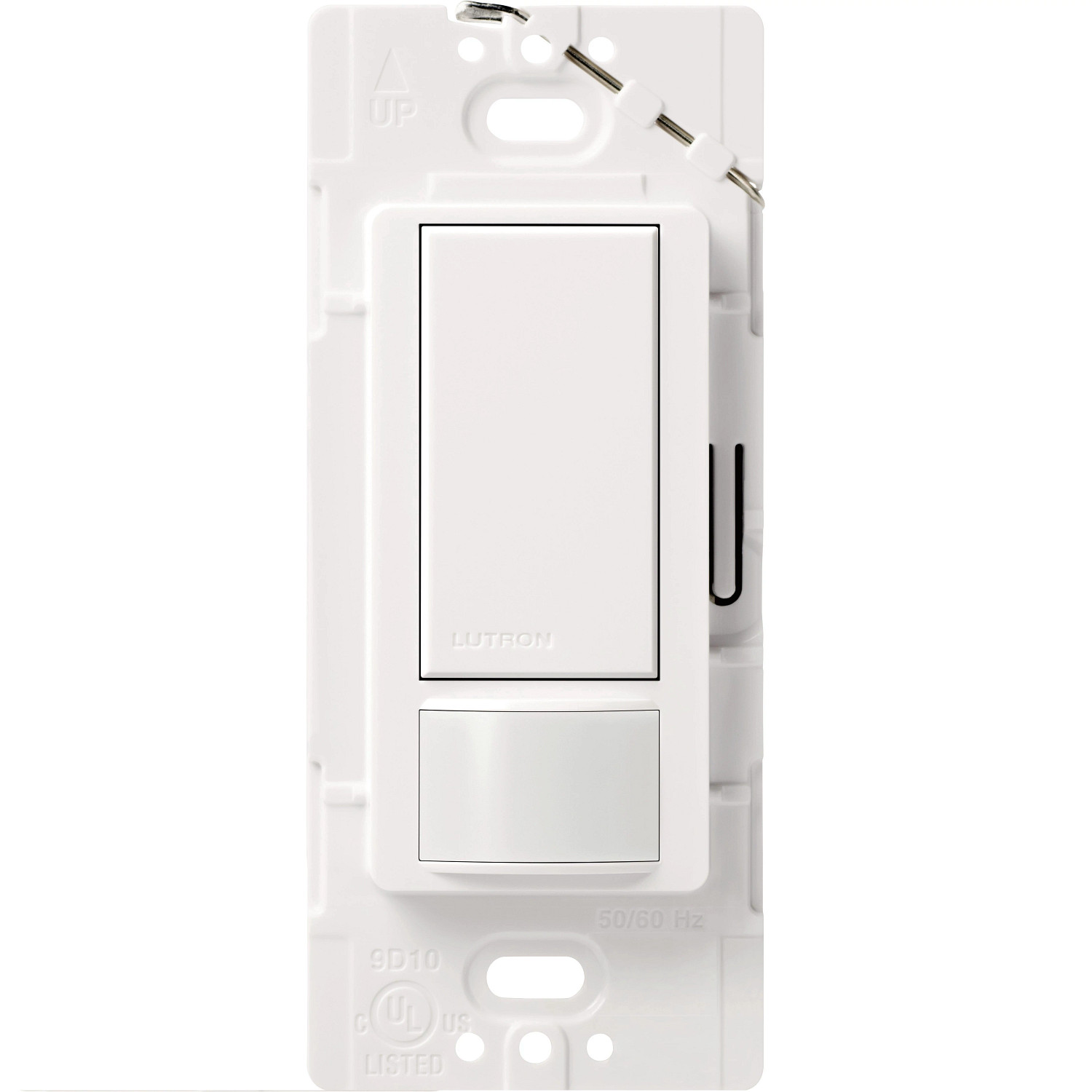

Maestro® MS-OPS2-WH Occupancy Sensor, 120/277 VAC, PIR Sensor, 30 x 30 ft Coverage, 180 deg, Wall Box Mount
Custom_Product_Images_Illustration
Maestro® MS-OPS2-WH Occupancy Sensor, 120/277 VAC, PIR Sensor, 30 x 30 ft Coverage, 180 deg, Wall Box Mount
SKU640860
MFGR #MS-OPS2-WH
$/ea
The Lutron® Maestro™ occupancy sensing switch combines a Maestro™ switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly.
The Lutron® Maestro™ occupancy sensing switch combines a Maestro™ switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly.
Application Lighting Control ARRA Compliant N Body PLASTIC Buy American Compliant N Catalog Number MS-OPS2-WH Connection Type Ground Control Output Manual On/Automatic Off/Automatic On/Automatic Off FullExport_EXPORT_ITEMS_013G66Z Country of Origin CN Currency USD Dimensions 4-11/16 in H x 2-15/16 in W x 1-1/8 in D FullExport_EXPORT_ITEMS_013G66Z Enclosure Plastic Enclosure Type NEMA WD7 Environmental Conditions 0 to 90% humidity, non-condensing. Indoor use only. EU RoHS Indicator N Gross Volume Per Pack 0.04 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.2150 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Height 4.60 in Height [Metric] 11.6840 cm Lamp Type ELV/Fluorescent/Halogen/Incandescent/LED/MLV Length 2.40 in Length [Metric] 6.0960 cm Load 2 A Mounting Wallbox Operating Temperature 32 to 104 °F Power Rating 240 W Response Frequency 50/60 Hz Sensing Range 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage Sensor Passive infrared motion detection with dependable Lutron XCT technology Series Maestro® Standard UL, cUL, NOM Standards UL Listed, NOM Certified Sub Brand Maestro Supply Voltage 120 VAC Temperature Rating 32 to 104 °F Time Delay 10 s Type 1-Pole UNSPSC 39122236 UPC 11 02755798282 UPC 12 027557982825 Width 2.40 in Width [Metric] 6.0960 cm Stock Status NORMALLY STOCKED Brand Lutron® Manufacturer Lutron Electronics Co., Inc Amperage Rating 2 A Color White Coverage 400 sq-ft Minor, 900 sq-ft Major FullExport_EXPORT_ITEMS_013G66Z Mounting Type Wall Sensor Type Passive Infrared Viewing Angle 180 ° Voltage Rating 120 V AC Lighting Control Combines a Maestro switch with a passive infrared occupancy sensor. Detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly. Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan. Ground wire required. Passive infrared sensors with exclusive Lutron® XCTTM technology for fine motion detection 180 deg sensor field-of-view Vacancy version available to meet CA Title 24 requirements Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment Standard zero cross-maximizes relay life by switching at the point of minimum energy on the AC power curve Adaptive zero cross maximizes relay life by switching at the point of minimum energy on the AC power curve Actively adapts to variations in relay timing Single-pole only Ground wire required for functionality Incandescent/halogen/ELV/MLV/CFL/LED/magnetic and electronic fluorescent/fan lamp
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Application | Lighting Control |
| ARRA Compliant | N |
| Body | PLASTIC |
| Buy American Compliant | N |
| Catalog Number | MS-OPS2-WH |
| Connection Type | Ground |
| Control Output | Manual On/Automatic Off/Automatic On/Automatic Off FullExport_EXPORT_ITEMS_013G66Z |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4-11/16 in H x 2-15/16 in W x 1-1/8 in D FullExport_EXPORT_ITEMS_013G66Z |
| Enclosure | Plastic |
| Enclosure Type | NEMA WD7 |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 0.04 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.2150 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Height | 4.60 in |
| Height [Metric] | 11.6840 cm |
| Lamp Type | ELV/Fluorescent/Halogen/Incandescent/LED/MLV |
| Length | 2.40 in |
| Length [Metric] | 6.0960 cm |
| Load | 2 A |
| Mounting | Wallbox |
| Operating Temperature | 32 to 104 °F |
| Power Rating | 240 W |
| Response Frequency | 50/60 Hz |
| Sensing Range | 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage |
| Sensor | Passive infrared motion detection with dependable Lutron XCT technology |
| Series | Maestro® |
| Standard | UL, cUL, NOM |
| Standards | UL Listed, NOM Certified |
| Sub Brand | Maestro |
| Supply Voltage | 120 VAC |
| Temperature Rating | 32 to 104 °F |
| Time Delay | 10 s |
| Type | 1-Pole |
| UNSPSC | 39122236 |
| UPC 11 | 02755798282 |
| UPC 12 | 027557982825 |
| Width | 2.40 in |
| Width [Metric] | 6.0960 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Lutron® |
| Manufacturer | Lutron Electronics Co., Inc |
| Amperage Rating | 2 A |
| Color | White |
| Coverage | 400 sq-ft Minor, 900 sq-ft Major FullExport_EXPORT_ITEMS_013G66Z |
| Mounting Type | Wall |
| Sensor Type | Passive Infrared |
| Viewing Angle | 180 ° |
| Voltage Rating | 120 V AC |
| Lighting Control |
| Combines a Maestro switch with a passive infrared occupancy sensor. Detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly. Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan. Ground wire required. |
| Passive infrared sensors with exclusive Lutron® XCTTM technology for fine motion detection |
| 180 deg sensor field-of-view |
| Vacancy version available to meet CA Title 24 requirements |
| Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment |
| Standard zero cross-maximizes relay life by switching at the point of minimum energy on the AC power curve |
| Adaptive zero cross maximizes relay life by switching at the point of minimum energy on the AC power curve |
| Actively adapts to variations in relay timing |
| Single-pole only |
| Ground wire required for functionality |
| Incandescent/halogen/ELV/MLV/CFL/LED/magnetic and electronic fluorescent/fan lamp |
