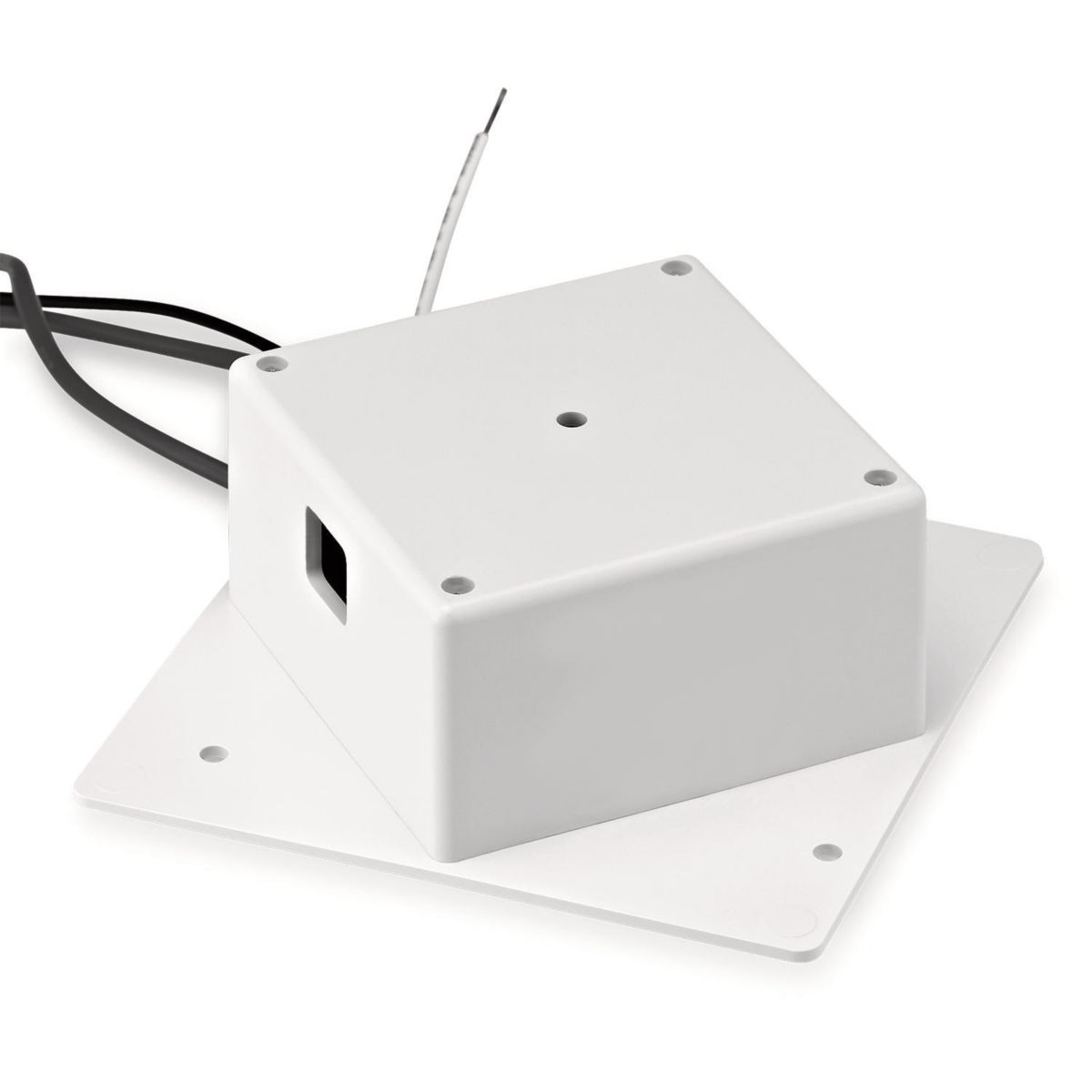

Greengate SP-R-20-120 Receptacle Rated Square Switchpack, 120 VAC Input, 24 VDC Output, 125 mA
Custom_Product_Images_Illustration
Greengate SP-R-20-120 Receptacle Rated Square Switchpack, 120 VAC Input, 24 VDC Output, 125 mA
SKUPDW~12319525
MFGR #SP-R-20-120
Price Not Available
Greengate Switchpack, Receptacle Rated Square, 120 VAC Input, 24 VDC Output, 50/60 Hz Frequency, 125 mA, 32 to 104 deg F Operating, >95% Non-Condensing Humidity, 4-3/4 in Width, 2 in Depth, 4-3/4 in Height, ABS Resin, White
Greengate Switchpack, Receptacle Rated Square, 120 VAC Input, 24 VDC Output, 50/60 Hz Frequency, 125 mA, 32 to 104 deg F Operating, >95% Non-Condensing Humidity, 4-3/4 in Width, 2 in Depth, 4-3/4 in Height, ABS Resin, White
Application Indoor Applications ARRA Compliant C Buy American Compliant C Catalog Number SP-R-20-120 Connection Hardwired Country of Origin MY Currency USD EU RoHS Indicator C Gross Weight Per Pack 1.1500 lb Gross Weight per Pack Metric 0.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490080 Height 2.50 in Height [Metric] 6.3500 cm Length 8.12 in Length [Metric] 20.6375 cm Lens N/A Mounting Ceiling Mount Sensing Range N/A Size 8.125 IN Length 5.125 IN Width 2.5 IN Height Standard UL Listed Sub Brand Switchpack - Receptacle Rated Type Switchpack UNSPSC 39122214 UPC 11 08008371818 UPC 12 080083718184 Voltage Rating 120 VAC Wattage 1.5HP @ 120VAC Width 5.12 in Width [Metric] 13.0175 cm Brand Cooper Lighting Solutions Manufacturer Cooper Lighting Solutions Amperage Rating 20 A Indoor Applications Click & Go ready, RJ45 connection Click and go ready, RJ45 connection Capable of switching up to 20 A Suitable for plenum installations Rated for ballast, tungsten and motor loads Mounts directly to junction box Wire leads for low voltage occupancy sensors class 2, LPS
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Indoor Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SP-R-20-120 |
| Connection | Hardwired |
| Country of Origin | MY |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.1500 lb |
| Gross Weight per Pack Metric | 0.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490080 |
| Height | 2.50 in |
| Height [Metric] | 6.3500 cm |
| Length | 8.12 in |
| Length [Metric] | 20.6375 cm |
| Lens | N/A |
| Mounting | Ceiling Mount |
| Sensing Range | N/A |
| Size | 8.125 IN Length 5.125 IN Width 2.5 IN Height |
| Standard | UL Listed |
| Sub Brand | Switchpack - Receptacle Rated |
| Type | Switchpack |
| UNSPSC | 39122214 |
| UPC 11 | 08008371818 |
| UPC 12 | 080083718184 |
| Voltage Rating | 120 VAC |
| Wattage | 1.5HP @ 120VAC |
| Width | 5.12 in |
| Width [Metric] | 13.0175 cm |
| Brand | Cooper Lighting Solutions |
| Manufacturer | Cooper Lighting Solutions |
| Amperage Rating | 20 A |
| Indoor Applications |
| Click & Go ready, RJ45 connection |
| Click and go ready, RJ45 connection |
| Capable of switching up to 20 A |
| Suitable for plenum installations |
| Rated for ballast, tungsten and motor loads |
| Mounts directly to junction box |
| Wire leads for low voltage occupancy sensors class 2, LPS |
