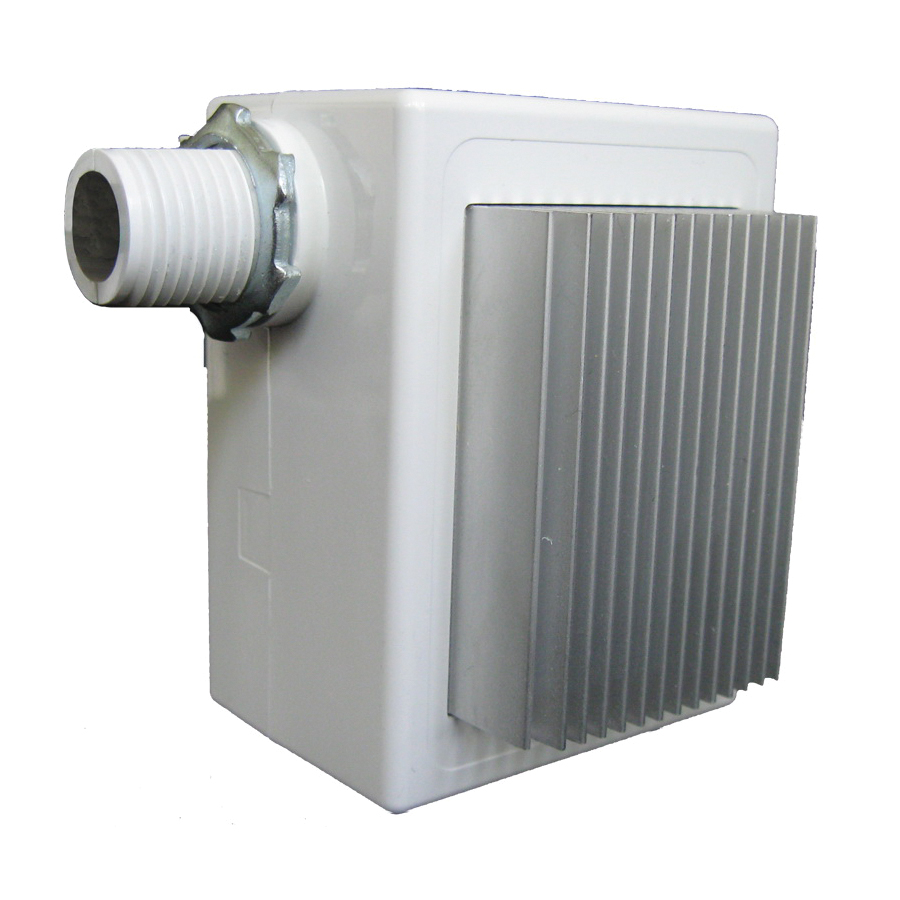

nLight® NSP5PCDELV120 Power/Relay Pack
Dimmer Power Packs
874734
MFG #: NSP5 PCD ELV 120
nLight®
222.61000
/ ea
- Alternate Catalog Number: 213JFM
- Application: Not Applicable
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: NSP5 PCD ELV 120
- Color: White
- Country of Origin: MX
- Currency: USD
- Depth: 1.83 in
- Environmental Conditions: Indoor
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 0.7200 lb
- Gross Weight per Pack Metric: 0.27
- Gross Weight UOM Metric: kg
- Height: 4.50 in
- Height [Metric]: 11.4300 cm
- Length: 4.50 in
- Length [Metric]: 11.4300 cm
- Mounting: Unit to J-box
- Series: nSP5 PCD
- Standard: cUL, UL
- Standards: UL, cUL Listed
- Type: Power Pack
- UNSPSC: 39121004
- UPC 11: 75357328919
- UPC 12: 753573289197
- Warranty Description: 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions
- Wattage: Not Applicable W
- Width: 2.50 in
- Width [Metric]: 6.3500 cm
- Stock Status: NONSTOCK
- Brand: nLight®
- Manufacturer: Acuity Brands
- Material: Plastic
- Voltage Rating: 120 VAC
The night nSP5 PCD Series Secondary Relay and Dimming Pack is capable of switching and dimming incandescent lighting loads, certain line voltage dimmable fluorescent lighting loads, magnetic low voltage (MLV) lighting loads, and electronic low voltage (ELV) lighting loads. Manual switching and adjustment of the dimming level is possible via WallPods or through the night Sensor View software. The nSP5 PCD's two RJ-45 connectors make control wiring with standard CAT-5 cabling quick and easy. For mounting, the nSP5 PCD has an elongated chase nipple that allows it to be attached either directly through a 1/2 in knockout onto a junction box, or to an adjacent box for meeting specific local code requirements in ceiling plenums.
- Applications
- Features
| Not Applicable |
| Communicates with nlight network |
| Self contained relay |
| Electronic low voltage (120 VAC) dimming |
