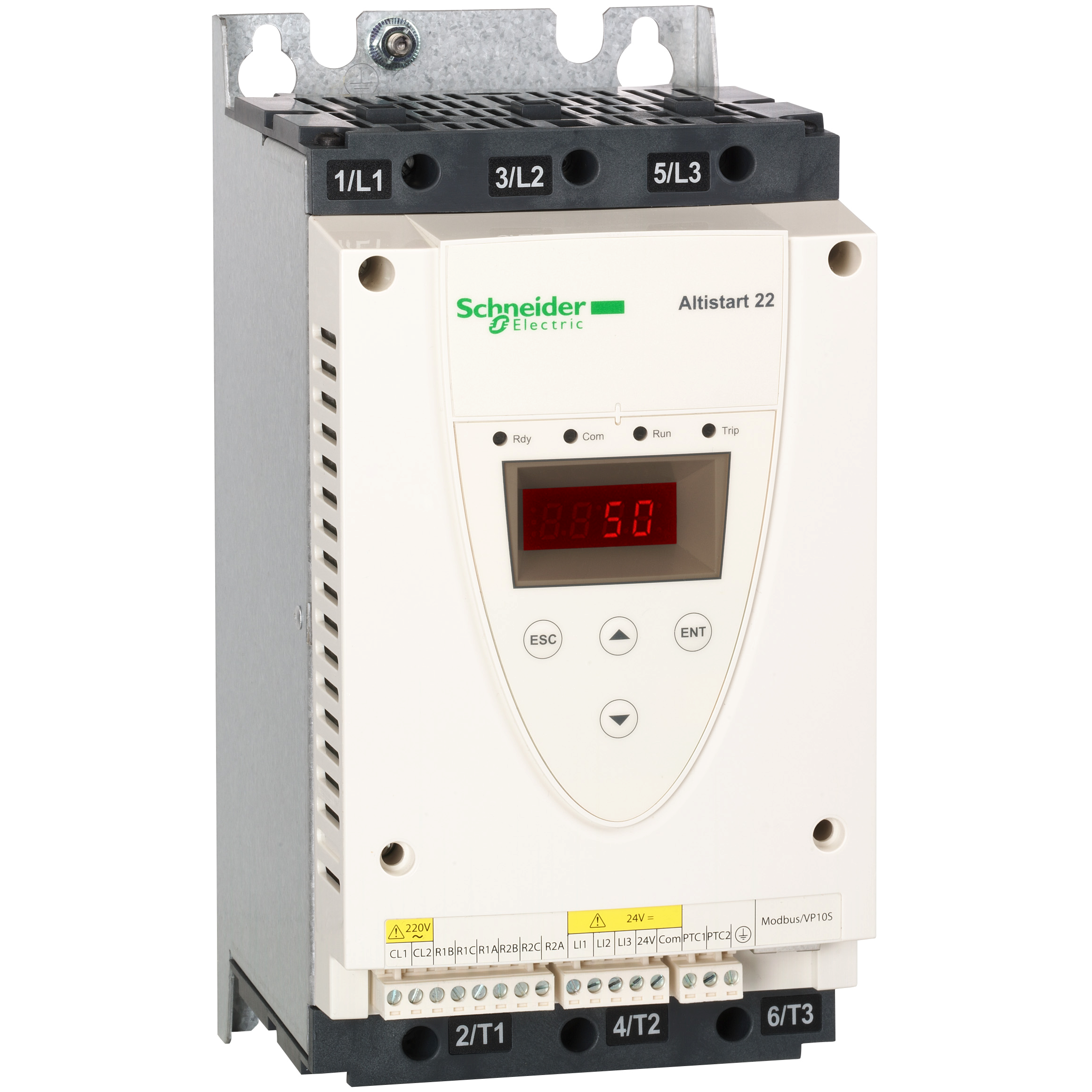

Schneider Electric ATS22D47S6 soft start 208-600va
Custom_Product_Images_Illustration
Schneider Electric ATS22D47S6 soft start 208-600va
SKU745173
MFGR #ATS22D47S6
Your Cost: $1,060.32/ea
Schneider Electric ATS22D47S6 soft start 208-600vac220Vcntrl ,47amp,15HP230V - 30HP460V - 40HP575V 18.5kW,230...600 V (- 15...10 ),3 phases,47A,> 40...< 60 deg.C with current derating 2.2 per deg.C--10...40 deg.C without derating,Altistart 22,IP20,UL - CSA - CE - RoHS,internal bypass,soft starter,severe and standard applications
Schneider Electric ATS22D47S6 soft start 208-600vac220Vcntrl ,47amp,15HP230V - 30HP460V - 40HP575V 18.5kW,230...600 V (- 15...10 ),3 phases,47A,> 40...< 60 deg.C with current derating 2.2 per deg.C--10...40 deg.C without derating,Altistart 22,IP20,UL - CSA - CE - RoHS,internal bypass,soft starter,severe and standard applications
Alternate Catalog Number ATS22D47S6 Amperage Rating 47 A Application ASYNCHRONOUS MOTORS ARRA Compliant N Buy American Compliant N Catalog Number ATS22D47S6 Connection In the motor supply line Connection Type RJ-45 Country of Origin ID Currency USD Dimensions 10.43 in H x 5.12 in W x 6.65 in D EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 1238.10 Gross Volume per Pack Metric 20288.74 Gross Weight Per Pack 12.5000 lb Gross Weight per Pack Metric 5.67 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 31.0000 in Height [Metric] 31.0000 cm Item Group 22576 Length 36.0000 in Length [Metric] 36.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=20748199&lang=en-us Motor Power 15 hp, 30 hp, 40 hp Operating Temperature -10 to 40 °C Phase 3 Power Supply 230...600 V - 15...10 ,50...60 HZ - 10...10 Returnable Y Series ATS22 Size 130 MM,169 MM,265 MM in Standard 1 GN 13-200 HZ)EN/IEC 60068-2-6-1.5 MM 2-13 HZ)EN/IEC 60068-2-6,15 GN 11 MS EN/IEC 60068-2-27,EN/IEC 60947-4-2,GOST-CSA-UL-C-TICK-CCC,IP20 Sub Brand ALTISTART 22 Substitute Product Catalog Number VW3G22101 UNSPSC 39121521 UPC 11 78590168686 UPC 12 785901686866 Voltage Rating 208 to 600 VAC Warranty Description Contractual Warranty:18 months Width 23.5000 in Width [Metric] 23.5000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Coil Voltage 220 VAC Enclosure Type IP20 Type Integrated Bypass ASYNCHRONOUS MOTORS INTERNAL BYPASS Provides smooth starting for your pumps, fans, compressors and machinery, avoiding mechanical stresses and extending their service life progressive start limits the starting and stopping noise of motors Reducing hearing discomfort for operators on the work floor slim form factor improves versatility Allows mounting in frames of any kind of machines multi-function product can replace multiple components Less cost to stock spares possibility to start motors with a non-zero voltage Overcome difficult or high torque starts precise control over start time gives capability to match your system's inertia and mechanical limits integrated bypass reduces noise Decreases heat dissipation soft stop Function to damaging effects of brutal motor stops: limit mechanical stress on your system motor monitoring Function gives ability to detect blocks and errors To prevent damage to your equipment compatibility with so move software allows configurations and settings to be easily transferred, meaning spares can be quickly installed 15 hp at 230 VAC, 30 hp at 460 VAC, 40 hp at 575 VAC motor rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATS22D47S6 |
| Amperage Rating | 47 A |
| Application | ASYNCHRONOUS MOTORS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ATS22D47S6 |
| Connection | In the motor supply line |
| Connection Type | RJ-45 |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 10.43 in H x 5.12 in W x 6.65 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1238.10 |
| Gross Volume per Pack Metric | 20288.74 |
| Gross Weight Per Pack | 12.5000 lb |
| Gross Weight per Pack Metric | 5.67 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 31.0000 in |
| Height [Metric] | 31.0000 cm |
| Item Group | 22576 |
| Length | 36.0000 in |
| Length [Metric] | 36.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=20748199&lang=en-us |
| Motor Power | 15 hp, 30 hp, 40 hp |
| Operating Temperature | -10 to 40 °C |
| Phase | 3 |
| Power Supply | 230...600 V - 15...10 ,50...60 HZ - 10...10 |
| Returnable | Y |
| Series | ATS22 |
| Size | 130 MM,169 MM,265 MM in |
| Standard | 1 GN 13-200 HZ)EN/IEC 60068-2-6-1.5 MM 2-13 HZ)EN/IEC 60068-2-6,15 GN 11 MS EN/IEC 60068-2-27,EN/IEC 60947-4-2,GOST-CSA-UL-C-TICK-CCC,IP20 |
| Sub Brand | ALTISTART 22 |
| Substitute Product Catalog Number | VW3G22101 |
| UNSPSC | 39121521 |
| UPC 11 | 78590168686 |
| UPC 12 | 785901686866 |
| Voltage Rating | 208 to 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 23.5000 in |
| Width [Metric] | 23.5000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Coil Voltage | 220 VAC |
| Enclosure Type | IP20 |
| Type | Integrated Bypass |
| ASYNCHRONOUS MOTORS |
| INTERNAL BYPASS |
| Provides smooth starting for your pumps, fans, compressors and machinery, avoiding mechanical stresses and extending their service life progressive start limits the starting and stopping noise of motors |
| Reducing hearing discomfort for operators on the work floor slim form factor improves versatility |
| Allows mounting in frames of any kind of machines multi-function product can replace multiple components |
| Less cost to stock spares possibility to start motors with a non-zero voltage |
| Overcome difficult or high torque starts precise control over start time gives capability to match your system's inertia and mechanical limits integrated bypass reduces noise |
| Decreases heat dissipation soft stop Function to damaging effects of brutal motor stops: limit mechanical stress on your system motor monitoring Function gives ability to detect blocks and errors |
| To prevent damage to your equipment compatibility with so move software allows configurations and settings to be easily transferred, meaning spares can be quickly installed |
| 15 hp at 230 VAC, 30 hp at 460 VAC, 40 hp at 575 VAC motor rating |
