BANNER®

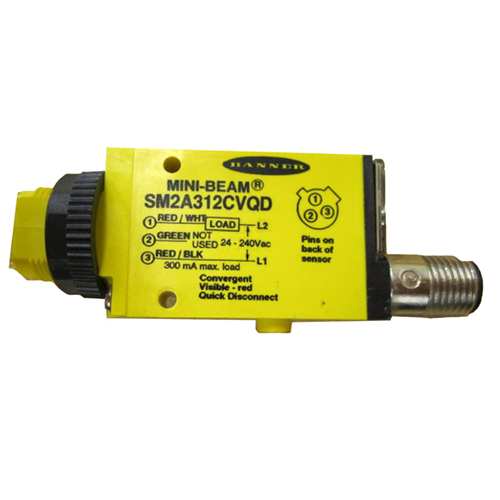

Banner Engineering Mini-Beam® SM2A312CVQD Rectangular Industry Standard Sensor, Proximity/Convergent Sensing Method
BANNER®
Banner Engineering Mini-Beam® SM2A312CVQD Rectangular Industry Standard Sensor, Proximity/Convergent Sensing Method
SKU13516
MFGR #SM2A312CVQD
Your Cost: $194.91/ea
List: Banner Engineering Mini-Beam® Industry Standard Sensor, Rectangular, Proximity/Convergent Sensing Method, 16 mm Sensing Distance, Solid State AC Switch Output, 24 to 240 VAC, Integral Quick-Disconnect 1/2 in (Micro), 4 ms Response, 85.5 mm L x 12.1 mm W x 30.7 mm H, NEMA 1/2/3/3S/4/4X/6/12/13/IP67, -20 to 70 deg C, M18 Mount, Environmental Conditions: 90% at 50 deg C Maximum Operating Relative Humidity
Banner Engineering Mini-Beam® Industry Standard Sensor, Rectangular, Proximity/Convergent Sensing Method, 16 mm Sensing Distance, Solid State AC Switch Output, 24 to 240 VAC, Integral Quick-Disconnect 1/2 in (Micro), 4 ms Response, 85.5 mm L x 12.1 mm W x 30.7 mm H, NEMA 1/2/3/3S/4/4X/6/12/13/IP67, -20 to 70 deg C, M18 Mount, Environmental Conditions: 90% at 50 deg C Maximum Operating Relative Humidity
Catalog Number SM2A312CVQD Connection 3-Pin Micro-Style Quick Disconnect Country of Origin US Enclosure IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13, Reinforced Thermoplastic Polyester Environmental Conditions Relative Humidity: 90 PCT At 50 ° C (Non-Condensing) Gross Weight Per Pack 0.1560 lb Leakage Current Off-State Output: Less Than 1.7 MILAMP RMS Lens Acrylic Operating Temperature -20 To 70 Output SPST Solid-State AC Switch, 5 MILAMP Minimum Load, On-State Voltage Drop: Less Than Or Equal To 5 V At 300 MILAMP And Less Than Or Equal To 10 V At 15 MILAMP Load, Inrush Capability: 3 AMP For 1 S (Non Repetitive) And 10 AMP For 1 Cycle (Non Repetitive) Response Time 4 Sensing Beam 650 NMTR Visible Red LED Sensing Range 16 Size 86 MM Length X 12.2 MM Width X 30.7 MM Height Standards UL Listed, CE Marked, CSA Certified Sub Brand Mini-Beam Type Self-Contained Proximity Convergent Mode Photoelectric Sensor UNSPSC 39121528 UPC 11 66248826840 UPC 12 66248826840 Stock Status NONSTOCK Brand Banner® Manufacturer Banner Engineering Corp. Voltage Rating 24 - 240 V Rectangular with M18 barrel housing style; Supply protection circuitry: Protected against transient voltages; Output protection circuitry: Protected against false pulse on power-up Thermoplastic housing material Light/dark switching Intrinsically safe 300 ms delay at power-up 1300 us repeatability Three number of pins Acrylic lens Potentiometer adjustment 18 mm Dia barrel Visible red LED
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | SM2A312CVQD |
| Connection | 3-Pin Micro-Style Quick Disconnect |
| Country of Origin | US |
| Enclosure | IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13, Reinforced Thermoplastic Polyester |
| Environmental Conditions | Relative Humidity: 90 PCT At 50 ° C (Non-Condensing) |
| Gross Weight Per Pack | 0.1560 lb |
| Leakage Current | Off-State Output: Less Than 1.7 MILAMP RMS |
| Lens | Acrylic |
| Operating Temperature | -20 To 70 |
| Output | SPST Solid-State AC Switch, 5 MILAMP Minimum Load, On-State Voltage Drop: Less Than Or Equal To 5 V At 300 MILAMP And Less Than Or Equal To 10 V At 15 MILAMP Load, Inrush Capability: 3 AMP For 1 S (Non Repetitive) And 10 AMP For 1 Cycle (Non Repetitive) |
| Response Time | 4 |
| Sensing Beam | 650 NMTR Visible Red LED |
| Sensing Range | 16 |
| Size | 86 MM Length X 12.2 MM Width X 30.7 MM Height |
| Standards | UL Listed, CE Marked, CSA Certified |
| Sub Brand | Mini-Beam |
| Type | Self-Contained Proximity Convergent Mode Photoelectric Sensor |
| UNSPSC | 39121528 |
| UPC 11 | 66248826840 |
| UPC 12 | 66248826840 |
| Stock Status | NONSTOCK |
| Brand | Banner® |
| Manufacturer | Banner Engineering Corp. |
| Voltage Rating | 24 - 240 V |
| Rectangular with M18 barrel housing style; Supply protection circuitry: Protected against transient voltages; Output protection circuitry: Protected against false pulse on power-up |
| Thermoplastic housing material |
| Light/dark switching |
| Intrinsically safe |
| 300 ms delay at power-up |
| 1300 us repeatability |
| Three number of pins |
| Acrylic lens |
| Potentiometer adjustment |
| 18 mm Dia barrel |
| Visible red LED |
