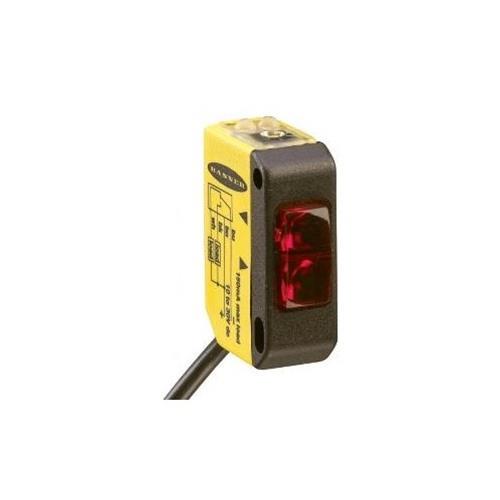

Banner Engineering Q23SN6LPQ Q23/QH23 Photoelectric Sensor, Rectangle Shape, 2000 mm Sensing, Visible Red LED Sensing Beam
Banner Engineering Q23SN6LPQ Q23/QH23 Photoelectric Sensor, Rectangle Shape, 2000 mm Sensing, Visible Red LED Sensing Beam
SKU138394
MFGR #Q23SN6LPQ
Your Cost: $128.00/ea
Banner Engineering Photoelectric Sensor, Series: Q23/QH23, Rectangle, Retro Reflective/Polarized Sensing Method, 2000 mm Sensing Range, Visible Red LED Sensing Beam, 1 ms Response, NPN Output, 10/30 VDC, Pigtail Quick-Disconnect M8 (Pico), LED Light Source, NEMA 1/2/3/3S/4/4X/6/12/13/IP67, -20 to 55 deg C Operating, Environmental Conditions: 90% at 50 deg C Maximum Operating Relative Humidity
Banner Engineering Photoelectric Sensor, Series: Q23/QH23, Rectangle, Retro Reflective/Polarized Sensing Method, 2000 mm Sensing Range, Visible Red LED Sensing Beam, 1 ms Response, NPN Output, 10/30 VDC, Pigtail Quick-Disconnect M8 (Pico), LED Light Source, NEMA 1/2/3/3S/4/4X/6/12/13/IP67, -20 to 55 deg C Operating, Environmental Conditions: 90% at 50 deg C Maximum Operating Relative Humidity
Catalog Number Q23SN6LPQ Connection Type Pigtail Quick-Disconnect M8 (Pico) Country of Origin USA Enclosure Type NEMA 1/2/3/3S/4/4X/6/12/13/IP67 Environmental Conditions 90% at 50 deg C Maximum Operating Relative Humidity Gross Weight Per Pack 1 lb Light Source LED Operating Temperature -20 to 55 °C Sensing Method Retro Reflective/Polarized Series Q23/QH23 Standards CE Marked UNSPSC 39121528 UPC 11 66248846440 UPC 12 66248846440 Voltage Rating 10/30 VDC Stock Status NONSTOCK Brand BANNER® Manufacturer Banner Engineering Corp. Output Type NPN Response Time 1 ms Sensing Beam Visible Red LED Sensing Range 2000 mm Shape Rectangular Rectangular housing style; Totally self-contained, 10 - 30 VDC operation; Powerful visible red sensing beam simplifies setup and alignment; Circuitry is completely sealed in ABS housing, rated IP67 and NEMA 6; LED indications for power On, output status (including overload condition), alignment and marginal signal; Stainless steel right-angle mounting bracket and hardware are included; Protected against reverse polarity and transient voltages; Protected against false pulse on power-up, transient voltages, and continuous overload or short-circuit of outputs Thermoplastic housing material Light/dark switching Intrinsically safe 100 ms delay at power-up 250 us repeatability Four number of pins Acrylic lens Potentiometer adjustment
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | Q23SN6LPQ |
| Connection Type | Pigtail Quick-Disconnect M8 (Pico) |
| Country of Origin | USA |
| Enclosure Type | NEMA 1/2/3/3S/4/4X/6/12/13/IP67 |
| Environmental Conditions | 90% at 50 deg C Maximum Operating Relative Humidity |
| Gross Weight Per Pack | 1 lb |
| Light Source | LED |
| Operating Temperature | -20 to 55 °C |
| Sensing Method | Retro Reflective/Polarized |
| Series | Q23/QH23 |
| Standards | CE Marked |
| UNSPSC | 39121528 |
| UPC 11 | 66248846440 |
| UPC 12 | 66248846440 |
| Voltage Rating | 10/30 VDC |
| Stock Status | NONSTOCK |
| Brand | BANNER® |
| Manufacturer | Banner Engineering Corp. |
| Output Type | NPN |
| Response Time | 1 ms |
| Sensing Beam | Visible Red LED |
| Sensing Range | 2000 mm |
| Shape | Rectangular |
| Rectangular housing style; Totally self-contained, 10 - 30 VDC operation; Powerful visible red sensing beam simplifies setup and alignment; Circuitry is completely sealed in ABS housing, rated IP67 and NEMA 6; LED indications for power On, output status (including overload condition), alignment and marginal signal; Stainless steel right-angle mounting bracket and hardware are included; Protected against reverse polarity and transient voltages; Protected against false pulse on power-up, transient voltages, and continuous overload or short-circuit of outputs |
| Thermoplastic housing material |
| Light/dark switching |
| Intrinsically safe |
| 100 ms delay at power-up |
| 250 us repeatability |
| Four number of pins |
| Acrylic lens |
| Potentiometer adjustment |
