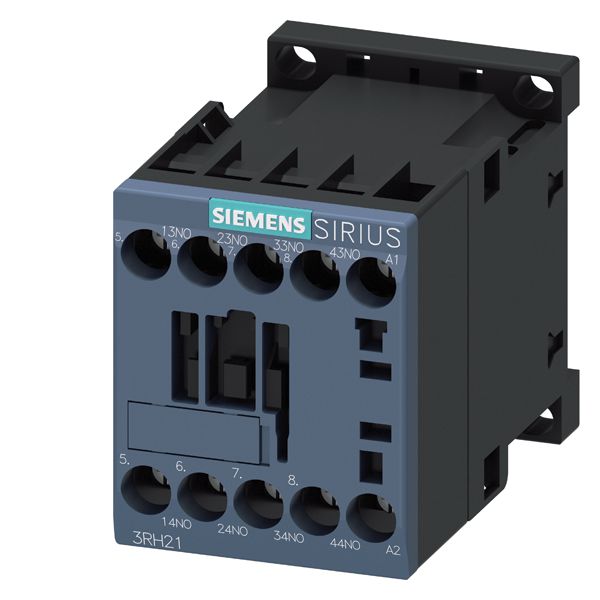

SIRIUS 3RH21401AK60 Contactor Control Relay, 4NO Contact Form, 110/120 VAC Coil
Custom_Product_Images_Illustration
SIRIUS 3RH21401AK60 Contactor Control Relay, 4NO Contact Form, 110/120 VAC Coil
SKU649416
MFGR #3RH21401AK60
Your Cost: $78.40/ea
List: SIEMENS 3RH21401AK60 CONTACTOR RELAY 4NO AC 120V SCREW
SIEMENS 3RH21401AK60 CONTACTOR RELAY 4NO AC 120V SCREW
Alternate Catalog Number 3RH2140-1AK60 ARRA Compliant C Buy American Compliant C Catalog Number 3RH21401AK60 Contact Rating 10/1 A at 230/690 VAC, 10/0.15 A at 24/600 VDC Country of Origin DE Currency USD Dimensions 57.5 mm H x 45 mm W x 73 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 14.87 Gross Volume UOM in Gross Weight Per Pack 0.4000 lb Gross Weight per Pack Metric 0.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 3.0800 in Height [Metric] 7.8232 cm Length 2.4500 in Length [Metric] 6.2230 cm Mounting Type Snap-On Number Of Poles 4 Replaced Catalog Number 3RH1140-1AK60 Returnable Y Standards ARRA, Buy American Act and RoHS Compliant, CE, CCC, CSA Certified, EAC Standard, EN 60947-1, EN 60947-5-1, IEC 60947-1, IEC 60947-5-1, UL Listed Temperature Rating -25 to 60 °C Terminal Type Screw Type Standard UNSPSC 39121529 UPC 11 66264390676 UPC 12 662643906769 Width 1.9700 in Width [Metric] 5.0038 cm Stock Status NORMALLY STOCKED Brand Siemens Manufacturer Siemens Coil Voltage 110/120 VAC Contact Form 4NO The 3RH2 contactor relays are suitable for use in any climate The 3RH2 contactor relays have screw, ring terminal lug or spring-type terminals S00 size of contactor Contact rating of auxiliary contacts according to UL is A600, Q600 They are finger safe according to EN 50274 10/1 A at 230/690 VAC AC-15, 10/0.15 A at 24/600 VDC DC-12 Four contacts are available in the basic unit
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RH2140-1AK60 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 3RH21401AK60 |
| Contact Rating | 10/1 A at 230/690 VAC, 10/0.15 A at 24/600 VDC |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 57.5 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 14.87 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.4000 lb |
| Gross Weight per Pack Metric | 0.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 3.0800 in |
| Height [Metric] | 7.8232 cm |
| Length | 2.4500 in |
| Length [Metric] | 6.2230 cm |
| Mounting Type | Snap-On |
| Number Of Poles | 4 |
| Replaced Catalog Number | 3RH1140-1AK60 |
| Returnable | Y |
| Standards | ARRA, Buy American Act and RoHS Compliant, CE, CCC, CSA Certified, EAC Standard, EN 60947-1, EN 60947-5-1, IEC 60947-1, IEC 60947-5-1, UL Listed |
| Temperature Rating | -25 to 60 °C |
| Terminal Type | Screw |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 66264390676 |
| UPC 12 | 662643906769 |
| Width | 1.9700 in |
| Width [Metric] | 5.0038 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Siemens |
| Manufacturer | Siemens |
| Coil Voltage | 110/120 VAC |
| Contact Form | 4NO |
| The 3RH2 contactor relays are suitable for use in any climate |
| The 3RH2 contactor relays have screw, ring terminal lug or spring-type terminals |
| S00 size of contactor |
| Contact rating of auxiliary contacts according to UL is A600, Q600 |
| They are finger safe according to EN 50274 |
| 10/1 A at 230/690 VAC AC-15, 10/0.15 A at 24/600 VDC DC-12 |
| Four contacts are available in the basic unit |
