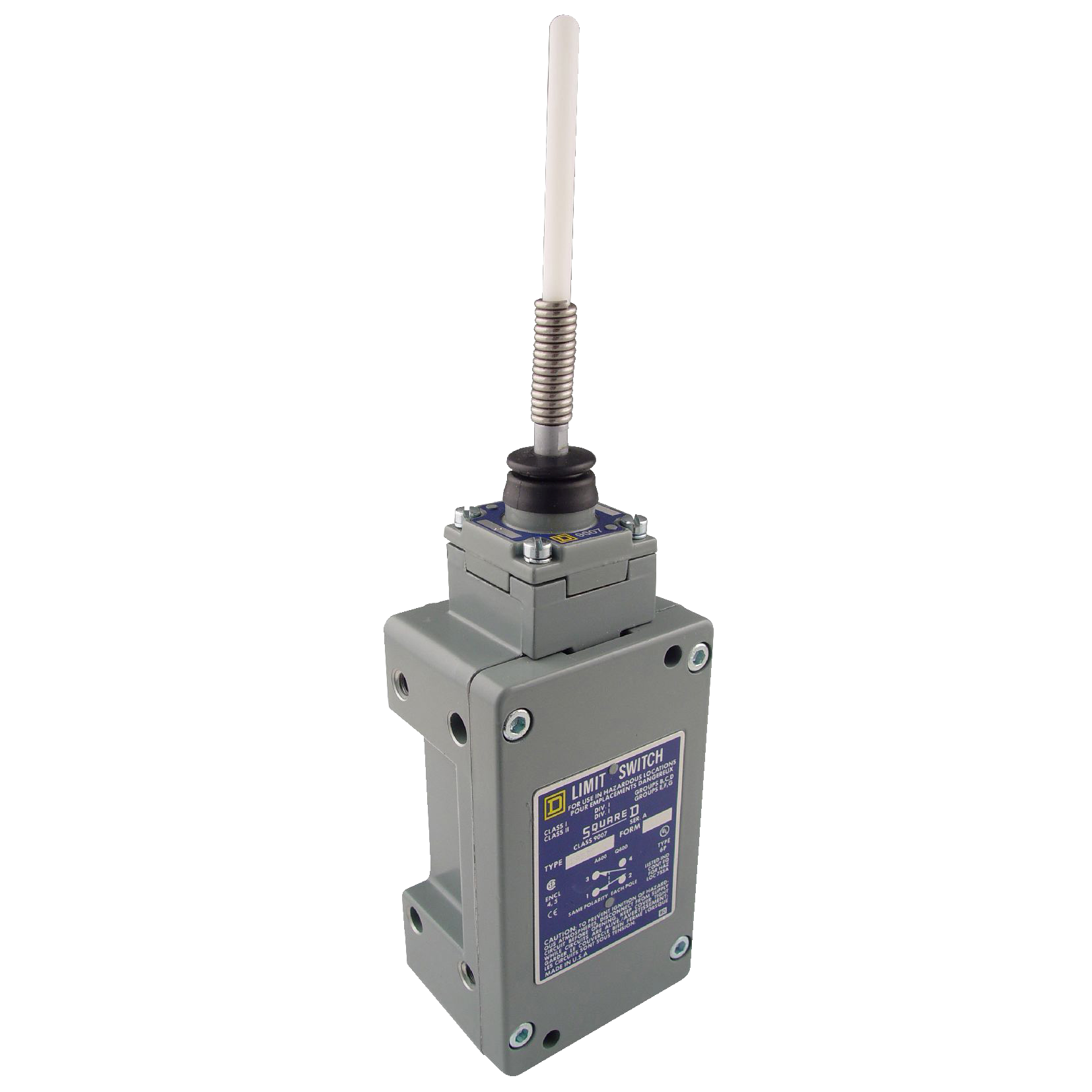

Telemecanique 9007CR61J Heavy Duty Limit Switch, 600 V, 10 A, Delrin Extension Any Direction Actuator, 2NO/2NC, Form ZZ DPDT-DB Contact, 2 Poles
Wobble Actuated Limit Switches
PDW~6442818
MFG #: 9007CR61J
Telemecanique Sensors
382.00000
/ ea
- Action: Multi-Directional
- Alternate Catalog Number: 9007CR61J
- Application: Material Working, Packaging, Materials Handling, Conveying, Food and Beverage, Mining and Mineral Construction, Oil and Gas, Crane and Hoisting, Mill, Foundry
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: 9007CR61J
- Connection: Screw-clamp terminals AWG 22...AWG 12), 1-2
- Connection Type: 1/2 in NPT Conduit Entrance Screw Clamp
- Contact Rating: NEMA A600/R300
- Country of Origin: MX
- Currency: USD
- Enclosure: NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
- Enclosure Type: NEMA 1/2/4/6/6P/7/9/12/13
- Environmental Conditions: General Purpose Indoor
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 2.4950 lb
- Gross Weight per Pack Metric: 1.13
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536509055
- Height: 24.05 in
- Height [Metric]: 61.6770 cm
- Item Group: 21499
- Length: 61.10 in
- Length [Metric]: 156.6600 cm
- Material: Aluminum
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=376907&lang=en-us
- Mounting: By the body
- Mounting Type: 1/2-14 NPT
- Operating Temperature: -20 to 185
- Returnable: N
- Series: 9007CR
- Size: 2.08 in
- Standard: 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
- Sub Brand: 9007CR
- Type: Heavy Duty
- UNSPSC: 39122213
- UPC 11: 78590185758
- UPC 12: 785901857587
- Warranty Description: Contractual Warranty:18 months
- Width: 9.47 in
- Width [Metric]: 24.2820 cm
- Brand: Telemecanique Sensors
- Manufacturer: Telemecanique Sensors
- Actuator: Delrin Extension Any Direction
- Amperage Rating: 10 A
- Contact Configuration: 2(NC-NO), Form ZZ DPDT-DB
- Voltage Rating: 600
- Number Of Poles: 2
Telemecanique Limit Switch, Heavy Duty, Series: 9007CR, 600 V, 10 A, 2NO/2NC, Form ZZ DPDT-DB Contact Configuration, 2 Pole, Multi-Directional Action, Delrin Extension Any Direction Actuator, 1/2 in NPT Conduit Entrance Screw Clamp Connection, NEMA 1/2/4/6/6P/7/9/12/13 Enclosure, 1/2-14 NPT Mounting, -20 to 185 deg F Operating, Aluminum, Environmental Conditions: General Purpose Indoor
- Brochure URL - 11003_D12WSZ0Y9A4IEPQB.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_P6RXYZGHC0AFNWOL.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_A769RYMPQF0JXL3K.pdf(Spec Sheet URL)
- Applications
- Features
| Material Working, Packaging, Materials Handling, Conveying, Food and Beverage, Mining and Mineral Construction, Oil and Gas, Crane and Hoisting, Mill, Foundry |
| without |
| 9007C heavy duty metal Limit Switches compact and standard 39mm plug-in bodies or 69 mm fixed body for hazardous location |
| With more than 20 heads and 200 levers styles this family offer a wide range of options |
| Heavy-duty industrial switch designed to meet domestic and international standards |
| Miniature enclosed switches, potted and pre-wired with cable |
| NEMA A600/R300 contact rating |
| 1 entry for 1/2-14 NPT conforming to ANSI B1.20.1, fixed |
