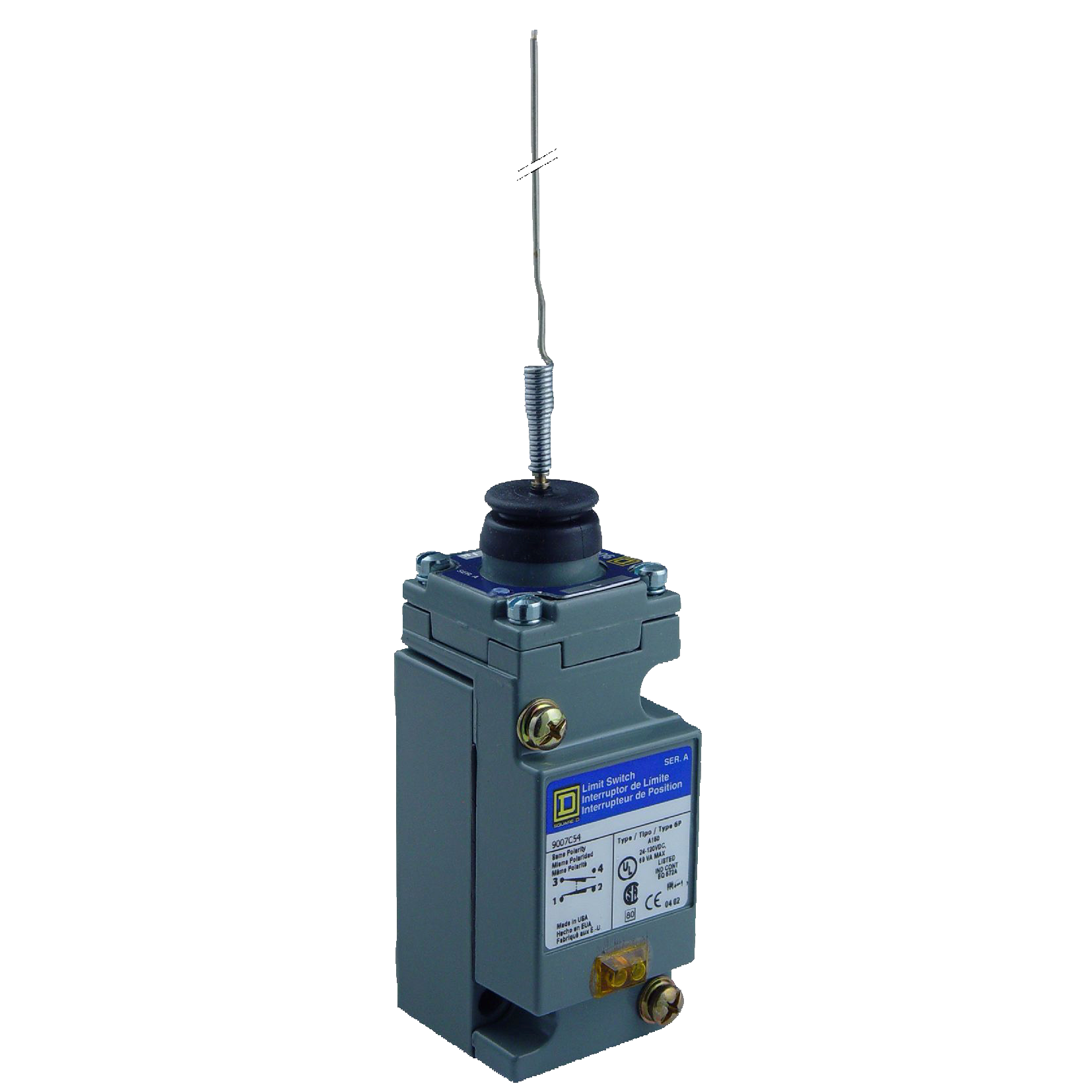

Telemecanique 9007C62L LIMIT SWITCH 600V 10AM
Wobble Actuated Limit Switches
274965
MFG #: 9007C62L
Telemecanique Sensors
231.38000
/ ea
- Action: By any moving part;Multi-directional approach, multi-directional approach;Snap action
- Alternate Catalog Number: 9007C62L
- Application: Standard box
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: 9007C62L
- Connection: Screw-clamp terminals AWG 22...AWG 12), 1-2
- Connection Type: 1/2 in NPT Conduit Entrance Screw Clamp
- Contact Rating: NEMA A600/R300
- Country of Origin: MX
- Currency: USD
- Enclosure: NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
- Enclosure Type: NEMA 1/2/4/6/6P/12/13/IP65/IP66/IP67
- Environmental Conditions: General Purpose Indoor
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 40.55
- Gross Volume per Pack Metric: 664.43
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 1.2500 lb
- Gross Weight per Pack Metric: 566.99
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509055
- Height: 1.98 in
- Height [Metric]: 5.0800 cm
- Item Group: 21499
- Length: 9.61 in
- Length [Metric]: 24.6380 cm
- Material: Zinc
- Mounting: By the body
- Mounting Type: 1/2-14 NPT
- Operating Temperature: -20 to 185 °F
- Returnable: N
- Series: 9007C
- Size: 1.55 IN,1.79 IN,9.07-9.07 IN in
- Standard: 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
- Sub Brand: 9007C
- Type: Heavy Duty Plug-In
- UNSPSC: 39122213
- UPC 11: 78590185204
- UPC 12: 785901852049
- Warranty Description: Contractual Warranty:18 months
- Width: 2.28 in
- Width [Metric]: 5.8420 cm
- Stock Status: NONSTOCK
- Brand: Telemecanique Sensors
- Manufacturer: Telemecanique Sensors
- Actuator: STEEL SPRING RETURN WIRE WHISKER -)
- Amperage Rating: 10 A
- Contact Configuration: 2(NC-NO), Form ZZ DPDT-DB
- Voltage Rating: 600 V
- Number Of Poles: 2
Telemecanique 9007C62L LIMIT SWITCH 600V 10AMP C +OPTIONS,-,metal,plug-in,-20...185 deg.F for standard environment,0.5 Inch NPT Conduit Entrance (screw clamp terminals),1 entry for 1/2 - 14 NPT conforming to ANSI B1.20.1,plug-in,10 A,2(NC-NO),600V,9007,limit switch,multi-directional head,plug-in,9007C,heavy duty,multi-directional head,Cat Whisker Any Direction,NEMA A600/R300,UL Listed - CSA Certified - CE Marked,multi-directional,standard environment
- Brochure URL - 11003_D12WSZ0Y9A4IEPQB.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_c1e4e4d7421fde5a14776d37795d67b51c5c7be5f9b03fb7f945d42a7672b213.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_P6RXYZGHC0AFNWOL.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_YP1BCQ6V8TLIXMN2.pdf(Spec Sheet URL)
- Tech Drawing URL - sales?sn=9007C62L(Tech Drawing URL)
- Applications
- Features
| Standard box |
| WITHOUT |
| 9007C heavy duty metal Limit Switches compact and standard 39mm plug-in bodies or 69 mm fixed body for hazardous location |
| With more than 20 heads and 200 levers styles this family offer a wide range of options |
| Heavy-duty industrial switch designed to meet domestic and international standards |
| Miniature enclosed switches, potted and pre-wired with cable |
| NEMA A600/R300 contact rating |
| 1 entry for 1/2-14 NPT conforming to ANSI B1.20.1 |
