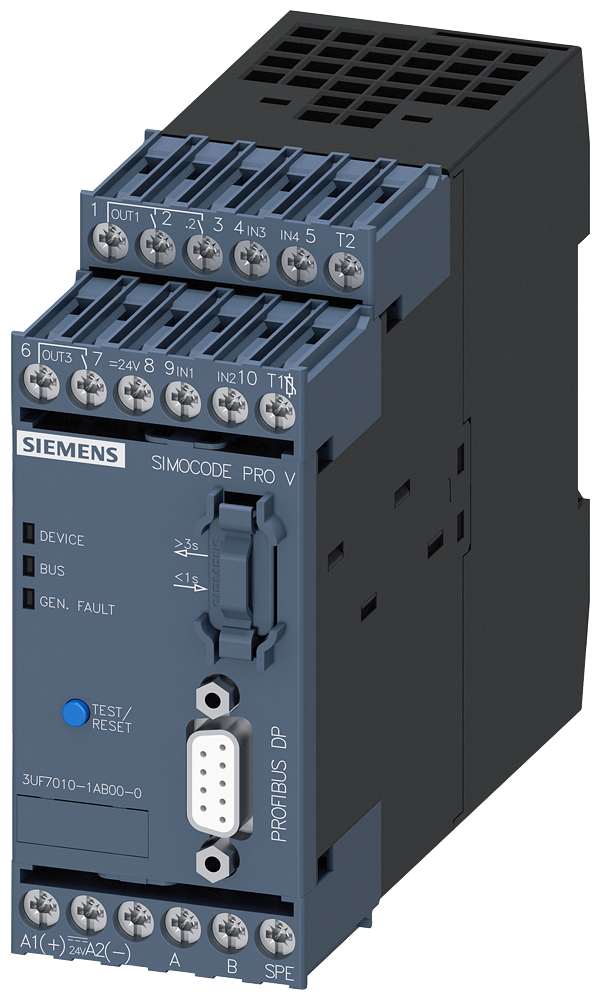

SIRIUS 3UF7 SIMOCODE Pro V Basic Module, Parameterizable Input, Relay Output
Drive Communication Modules
612186
MFG #: 3UF7010-1AB00-0
Siemens
1293.74000
/ ea
- Alternate Catalog Number: 3UF7010-1AB00-0
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: 3UF7010-1AB00-0
- Country of Origin: DE
- Currency: USD
- Dimensions: 111 mm H x 45 mm W x 124 mm D
- Electrical Connections: 9-Pin SUB-D Socket/Screw Terminal
- Enclosure Type: IP20
- EU RoHS Indicator: C
- Gross Volume Per Pack: 57.33
- Gross Volume UOM: in
- Gross Weight Per Pack: 0.6000 lb
- Gross Weight per Pack Metric: 0.27
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536304000
- Height: 5.25 in
- Height [Metric]: 13.3350 cm
- Length: 5.20 in
- Length [Metric]: 13.2080 cm
- Mounting Type: Snap-On/Threaded
- Returnable: Y
- Series: 3UF7 SIMOCODE Pro V
- Standards: RoHS Compliant
- Temperature Rating: -25 to 60 °C
- UNSPSC: 32151705
- UPC 11: 75455490166
- UPC 12: 754554901664
- Width: 2.10 in
- Width [Metric]: 5.3340 cm
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Function: Soft Starter Control/Data Acquisition/Diagnostics/Password Protection/Test/Maintenance
- Input Rating: 24
- Input Type: Parameterizable
- Output Type: Relay
SIEMENS 3UF7010-1AB00-0 SIMOCODE PRO V BASE 24VDC
- 3D Rendering URL - G_IC03_XX_22935V.pdf(3D Rendering URL)
- Brochure URL - SIMOCODEpro_e20001a560p305v17600.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 3UF7010_00001439_000__3D.stp(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet 1 URL - SIRIUS_3UF7_000_1AB00_0_Datasheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10991_C0QXOJ6HED184SG7.pdf(Spec Sheet URL)
- Spec Sheet URL - 10991_HX5LRPJ8WSYDTNFK.pdf(Spec Sheet URL)
- Spec Sheet URL - 3UF7010-1AB00-0.pdf(Spec Sheet URL)
- User Manual URL - 6316060-50DS02.pdf(User Manual URL)
- User Manual URL - man(User Manual URL)
- Features
| 12 Mbit/sec maximum transfer rate |
| 0.8 to 1.2 Nm tightening torque |
| 5 to 95% relative humidity |
| 4-inputs for thermistor connection, 3-outputs |
| 400 to 800 Ohm response value of thermoresistor, 500 to 650 Ohm release value of thermoresistor |
| PROFIBUS DP interface |
| RS485 4 I/3 O freely assignable |
