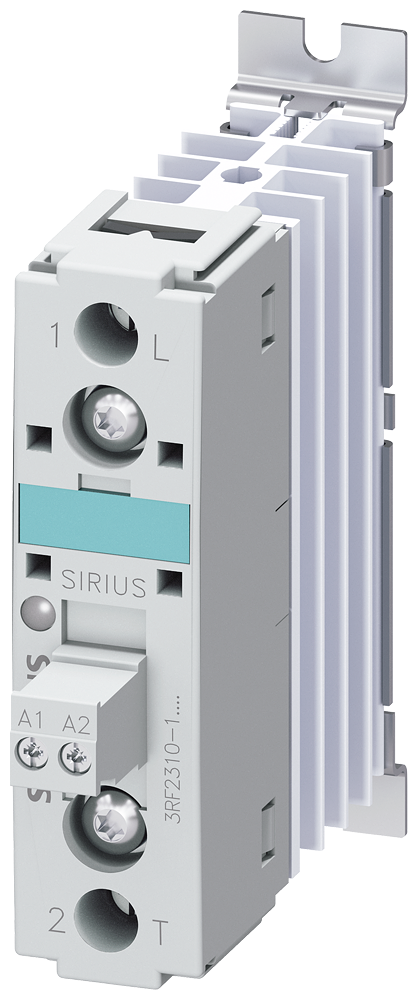

SIRIUS 3RF2310-1AA02 Solid State Contactor, 24 to 230 VAC/24 VDC Coil, 10 A Max Load, 1NO, 1 Poles
Solid State Contactors
283191
MFG #: 3RF2310-1AA02
Siemens
115.58000
/ ea
- Alternate Catalog Number: 3RF2310-1AA02
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: 3RF2310-1AA02
- Connection Type: Plug-In
- Country of Origin: DE
- Currency: USD
- Dimensions: 100 mm H x 22.5 mm W x 91 mm D
- Enclosure Type: IP20
- EU RoHS Indicator: C
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 18.93
- Gross Volume UOM: in
- Gross Weight Per Pack: 0.1500 lb
- Gross Weight per Pack Metric: 0.07
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536490065
- Height: 4.22 in
- Height [Metric]: 10.7188 cm
- Length: 3.90 in
- Length [Metric]: 9.9060 cm
- Mounting Type: Rail
- Operating Temperature: -25 to 60
- Returnable: Y
- Standards: RoHS CompliantREACH Article 33CSA CertifiedUL ListedEAC ApprovedC-TickCE CertifiedIEC 60947-4-3UL 508ECCN:EAR99
- Terminal Type: Screw
- UNSPSC: 39121529
- UPC 11: 75455486126
- UPC 12: 754554861265
- Width: 1.15 in
- Width [Metric]: 2.9210 cm
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Coil Voltage: 24 VDC
- Contact Configuration: 1NO
- Maximum Load Current: 10.5 A
- Type: 1-Phase Zero Point Switching
- Number Of Poles: 1
SIEMENS 3RF2310-1AA02 24-230V 10A CNCTR
- 3D Rendering URL - G_IC03_XX_22744V.pdf(3D Rendering URL)
- Brochure URL - SIRIUS_SC_Pages_from_lv_10.pdf(Brochure URL)
- Catalog URL - SIRIUS_3RF2310_1AA02_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - 3RF2310_00001133_000__3D.stp(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet 1 URL - Siemens_3RF2310_1AA02_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10991_9HV5D4KEU0OGP612.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=3RF2310-1AA02&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=3RF2310-1AA02&language=en(Spec Sheet URL)
- Spec Sheet URL - SIRIUS_3RF2310_1AA02_Specification_Sheet.pdf(Spec Sheet URL)
- User Manual URL - 3RF23_-_A_solid_state_contactor_Zeropoint.pdf(User Manual URL)
- User Manual URL - man(User Manual URL)
- Features
| Compact and space-saving design |
| Insulated enclosure with integrated heat sink |
| Integrated mounting foot to snap on a standard mounting rail or for assembly onto a support plate |
| Reversing contactors with integrated interlocking |
| Plug-in control connection |
