Schneider Electric GVAM11 TeSys™ Auxiliary Contact, 240 VAC/60 VDC, 2.5 A, 1 Contact
Auxiliary Contacts
310266
MFG #: GVAM11
Schneider Electric
35.70000
/ ea
- Alternate Catalog Number: GVAM11
- Application: GV2L-GV2ME-GV2RT-GV3L-GV2P-GV3P-GV2LE
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: GVAM11
- Contact Configuration: 1 C/O
- Country of Origin: CZ
- Currency: USD
- Dimensions: 89 mm H x 9.3 mm W x 66 mm D
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 4.90
- Gross Volume per Pack Metric: 80.30
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.0900 lb
- Gross Weight per Pack Metric: 39.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509065
- Height: 0.58 in
- Height [Metric]: 1.5000 cm
- Item Group: 22367
- Length: 3.51 in
- Length [Metric]: 9.0000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=607978&lang=en-us
- Mounting: LEFT SIDE
- Mounting Type: Left Side
- Operating Cycles: 100000 Cycles
- Returnable: Y
- Size: 66 MM,89 MM,9.3 MM
- Standard: UL, CSA, IEC
- Sub Brand: TESYS
- Suitable For Use With: GV2L, GV2LE Manual Switch, GV2ME, GV2P, GV2RT, GV3L, GV3P Manual Motor Starter
- Type: Type GVAM
- UNSPSC: 39121521
- UPC 11: 78590121242
- UPC 12: 785901212423
- Warranty Description: Contractual Warranty:18 months
- Wattage: 240 W
- Width: 2.73 in
- Width [Metric]: 7.0000 cm
- Stock Status: NORMALLY STOCKED
- Brand: Schneider Electric
- Manufacturer: Schneider Electric
- Amperage Rating: 2.5 A
- Voltage Rating: 24 to 240 VAC/24 to 60 VDC
Schneider Electric GVAM11 MAN-STARTER SHORT CIR CONTACT 575VAC 1,1 C/O,short-circuit signal 1 C/O,100000 cycles,2.5 A,24...60 V DC-24...240 V AC,300 V - conforming to UL 508-690 V - conforming to IEC 60947-1-300 V - conforming to CSA C22.2 No 14,GV2RT-GV3L-GV2ME-GV2P-GV2L-GV2LE-GV3P,short-circuit signal 1 C/O,GVAM,auxiliary contact block,TeSys,TeSys GV2-TeSys GV3,UL, CSA, IEC,left side,normal environment,screw clamp terminals
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8087436360Den&ext=webp(360 Degree View URL)
- Brochure URL - 9b50def0f2405d05f6a1ce4a00cb8c4ea0aa22d6.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_GV1G09_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=GVAM11_3D-simplified.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_IOWJUDRME1BX9068.zip(Install Instructions 1 URL)

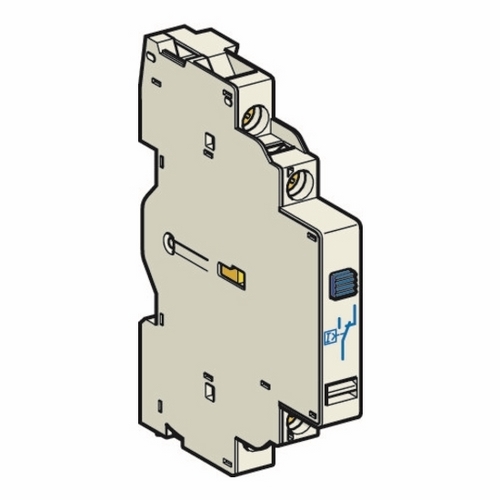

- Line Drawing URL - 229230.jpg(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - files?p_enDocType=Circularity+Profile&p_File_Name=ENVEOLI2207006_V2.pdf(Service Manual URL)
- Spec Sheet 1 URL - Schneider_Electric_GVAM11_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_TPV8USB3Z6WOHJAL.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_0ZFSVY7NP24HWU86.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_NIWRPT3ME8QUL40J.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/YkQwgPFibOM(Video)
- Applications
- Features
| GV2L-GV2ME-GV2RT-GV3L-GV2P-GV3P-GV2LE |
| 1 C/O,SHORT-CIRCUIT SIGNAL 1 C/O |
| Screw clamp terminal electrical connection |
| 240 W at 48 VDC DC-13 |
| 24 to 240 VAC, 24 to 60 VDC, 690 VAC Conforming to IEC 60947-1-300 V conforming to UL 508-300 V conforming to CSA C22.2 No.14 |
| 1CO short circuit signal |
| 1CO (1CO Short-Circuit Signal) |
