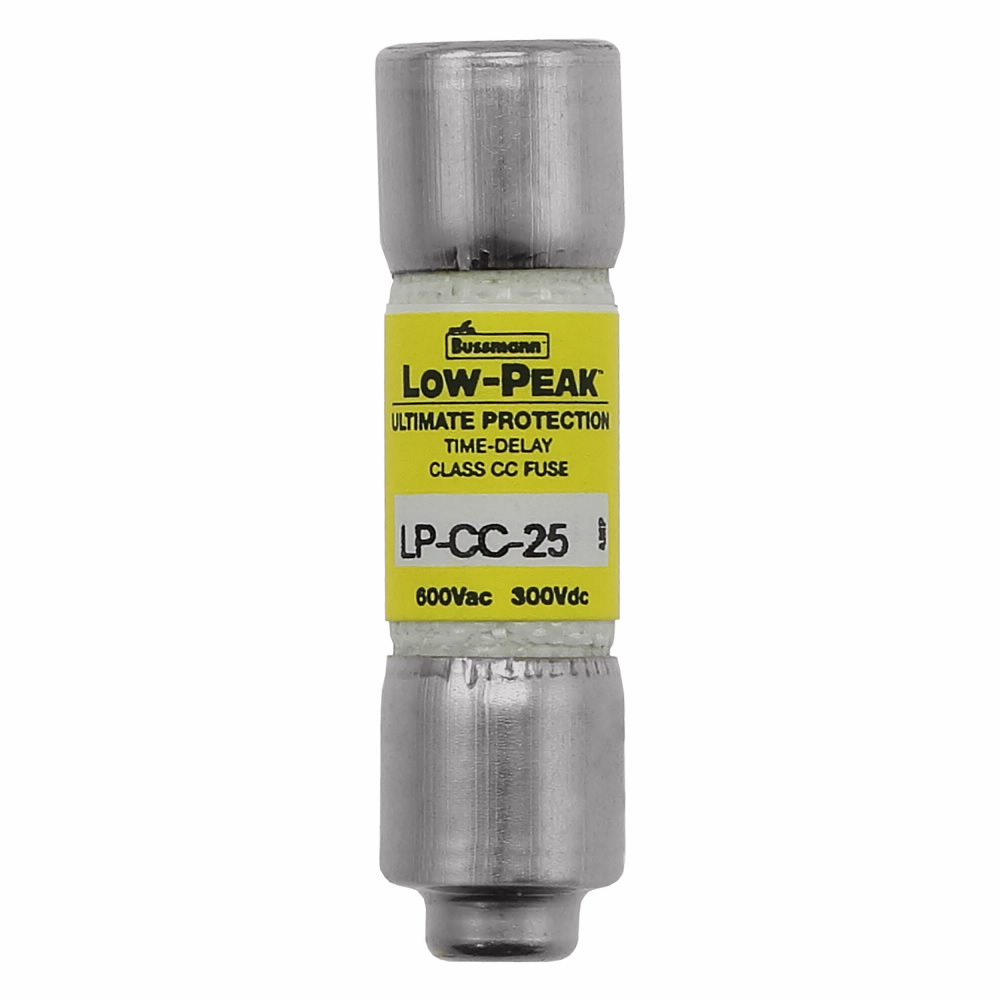

Bussmann® LP-CC-25 LOW PEAK CC TIME DELA
SKU60850
MFGR #LP-CC-25
Your Cost: $35.51/ea
List: Eaton?s Bussmann series low peak ultimate protection fuses are the industry?s only UL® Listed and CSA Certified fuses with a 300kA interrupting rating, providing 50% more protection than any other listed fuse*. The high interrupting rating allows for simple, worry-free installation in virtually any application. low peak fuses are available in Class CC, CF, J, L and RK1, so there is a fuse to meet the vast majority of 600V over current protection needs. Plus, when upgrading to low peak fuses, existing fuse inventory can be reduced by up tofuse.
Eaton?s Bussmann series low peak ultimate protection fuses are the industry?s only UL® Listed and CSA Certified fuses with a 300kA interrupting rating, providing 50% more protection than any other listed fuse*. The high interrupting rating allows for simple, worry-free installation in virtually any application. low peak fuses are available in Class CC, CF, J, L and RK1, so there is a fuse to meet the vast majority of 600V over current protection needs. Plus, when upgrading to low peak fuses, existing fuse inventory can be reduced by up tofuse.
Alternate Catalog Number LP-CC-25 Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Buy American Compliant C Catalog Number LP-CC-25 Connection Ferrule end x ferrule end Country of Origin MUL Currency USD Element Dual EU RoHS Indicator C Gross Weight Per Pack 0.0300 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 1.50 in Height [Metric] 3.8100 cm Length 0.41 in Length [Metric] 1.0414 cm Material Melamine tube Response Time 12 S at 200% Size 13/32 In Diameter X 1-1/2 In Length Standard RoHS Compliant,CE Marked Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 248-4 Guide No. JDDZ File No. E4273CSA Class 1422-02 File No. 53787CE CertifiedNEC 110.9 Sub Brand Bussmann Series Type Fuse UNSPSC 39121606 UPC 11 05171218028 UPC 12 051712180283 Width 0.41 in Width [Metric] 1.0414 cm Stock Status NORMALLY STOCKED Brand Bussmann Manufacturer Eaton Amperage Rating 25 A Class CC Interrupt Rating 200 kAIC at 600 Vac20 kAIC at 300 Vdc Voltage Rating 600//300 VAC//VDC Ind Facilities & Factories - Facility: Safety and Security Systems Rejection style 200 kA interrupting rating complies with NEC section 110.9 for today's large capacity systems Fast short circuit protection and dual element, time delay performance provide ultimate protection Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses Consistent 2:1 ampacity ratios for all Low-Peak™ fuses make selective coordination easy Time delay characteristic avoids unwanted fuse openings from surge currents while fast response speed under short circuit conditions provides a high degree of current limitation Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents A superior, all purpose, space saving branch circuit fuse that meets most protection requirements up to 30 A Very compact, with a physical size only 13/32 x 1-1/2 in with rejection tip Proper sizing can provide "no damage" type 2 coordinated protection for NEMA and IEC motor controllers Can be used where either a time delay or a fast acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction Superior protection for small horsepower motor circuit 12 s (minimum) at 200% of rated current response time 200 kA at 600 VAC RMS symmetrical, 20 kA at 300 VDC (UL 198L) interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LP-CC-25 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | LP-CC-25 |
| Connection | Ferrule end x ferrule end |
| Country of Origin | MUL |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0300 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 1.50 in |
| Height [Metric] | 3.8100 cm |
| Length | 0.41 in |
| Length [Metric] | 1.0414 cm |
| Material | Melamine tube |
| Response Time | 12 S at 200% |
| Size | 13/32 In Diameter X 1-1/2 In Length |
| Standard | RoHS Compliant,CE Marked |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 248-4 Guide No. JDDZ File No. E4273CSA Class 1422-02 File No. 53787CE CertifiedNEC 110.9 |
| Sub Brand | Bussmann Series |
| Type | Fuse |
| UNSPSC | 39121606 |
| UPC 11 | 05171218028 |
| UPC 12 | 051712180283 |
| Width | 0.41 in |
| Width [Metric] | 1.0414 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 25 A |
| Class | CC |
| Interrupt Rating | 200 kAIC at 600 Vac20 kAIC at 300 Vdc |
| Voltage Rating | 600//300 VAC//VDC |
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Rejection style |
| 200 kA interrupting rating complies with NEC section 110.9 for today's large capacity systems |
| Fast short circuit protection and dual element, time delay performance provide ultimate protection |
| Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses |
| Consistent 2:1 ampacity ratios for all Low-Peak™ fuses make selective coordination easy |
| Time delay characteristic avoids unwanted fuse openings from surge currents while fast response speed under short circuit conditions provides a high degree of current limitation |
| Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents |
| A superior, all purpose, space saving branch circuit fuse that meets most protection requirements up to 30 A |
| Very compact, with a physical size only 13/32 x 1-1/2 in with rejection tip |
| Proper sizing can provide "no damage" type 2 coordinated protection for NEMA and IEC motor controllers |
| Can be used where either a time delay or a fast acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction |
| Superior protection for small horsepower motor circuit |
| 12 s (minimum) at 200% of rated current response time |
| 200 kA at 600 VAC RMS symmetrical, 20 kA at 300 VDC (UL 198L) interrupt rating |
