Bussmann

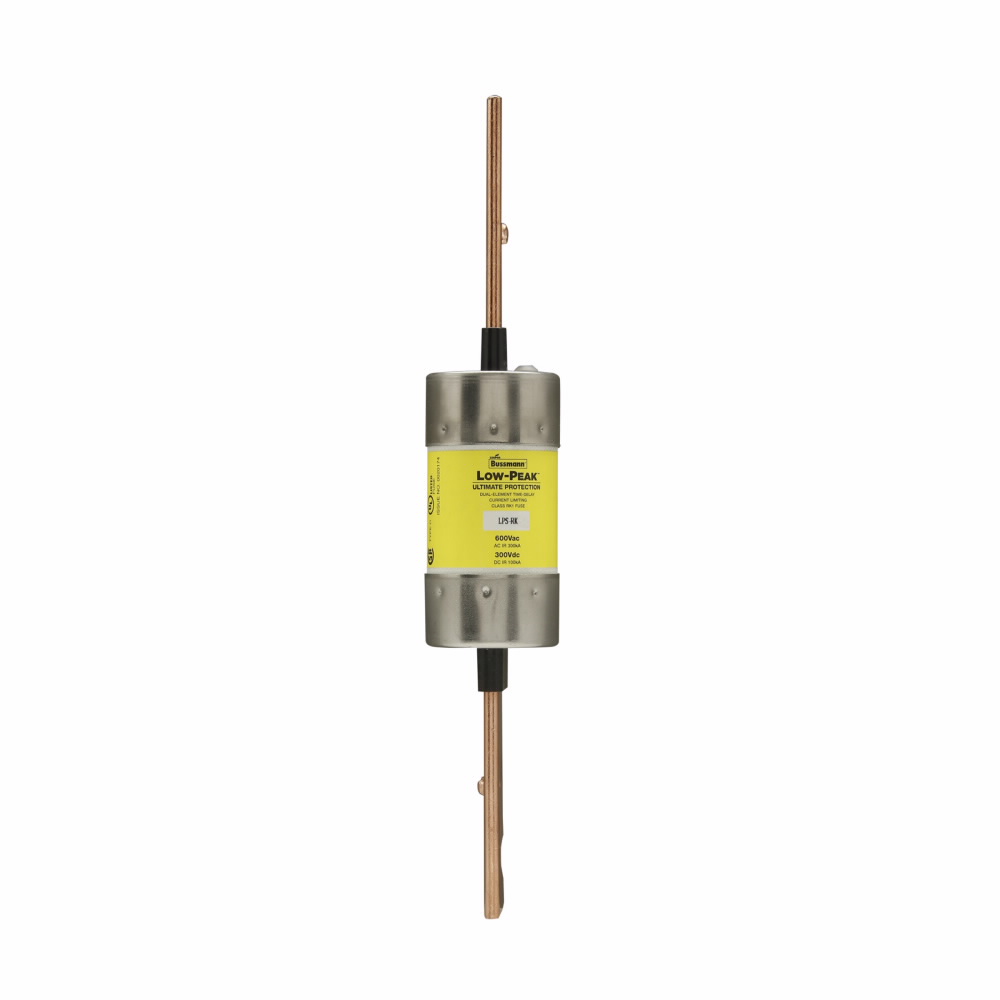

Bussmann® LPS-RK-200SP LOW-PEAK DUAL ELE
Custom_Product_Images_Illustration
Bussmann
Bussmann® LPS-RK-200SP LOW-PEAK DUAL ELE
SKU5293
MFGR #LPS-RK-200SP
Your Cost: $173.28/ea
List: 200A 600V Class RK1 Low Peak Dual Element, Time Delay Fuse
200A 600V Class RK1 Low Peak Dual Element, Time Delay Fuse
Alternate Catalog Number LPS-RK-200SP Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Body Size 1.61 in Dia x 9.63 in L Buy American Compliant C Catalog Number LPS-RK-200SP Connection Blade end x blade end Country of Origin MX Currency USD Element Dual EU RoHS Indicator C Gross Weight Per Pack 1.1000 lb Gross Weight per Pack Metric 0.68 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 1.97 in Height [Metric] 5.0013 cm Length 9.84 in Length [Metric] 25.0012 cm Mounting Type Holder Response Time 10 S at 500% Series LPS Size 1.61 In Diameter X 9.63 In Length Standard CE Marked Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed, Guide JDDZ, File No. E4273CSA C22.2 No. 248.12, Class 1422-02, File No. 53787CE Certified Sub Brand Bussmann Series Terminal Type Blade Type Fuse UNSPSC 39121606 UPC 11 05171254850 UPC 12 051712548502 Width 1.89 in Width [Metric] 4.8006 cm Stock Status NORMALLY STOCKED Brand Bussmann Manufacturer Eaton Amperage Rating 200 A Class RK-1 Interrupt Rating 100 kAIC at 300 Vdc300 kAIC at 600 Vac Voltage Rating 600//300 VAC//VDC Ind Facilities & Factories - Facility: Safety and Security Systems Electrically isolated end cap Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective co-ordination ratio of 2:1 prevents widespread blackouts Time delay permits 130% FLA sizing for backup motor protection 300 kA rms symmetrical interrupt rating provides adequate ratings without obsolescence for all electrical systems, big or small, allows for simple, worry free installation in virtually any application Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak® fuses Consistent 2:1 ampacity ratios for all Low-Peak® fuses make selective co-ordination easy Current limitation protects down stream components against damaging thermal and magnetic effects of short circuit currents Protects against 1-phase motor damage Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers Electrically isolated end cap 10 s at 500% of rated current response time 300 kA at 600 VAC, 100 kA at 300 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LPS-RK-200SP |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| ARRA Compliant | C |
| Body Size | 1.61 in Dia x 9.63 in L |
| Buy American Compliant | C |
| Catalog Number | LPS-RK-200SP |
| Connection | Blade end x blade end |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.1000 lb |
| Gross Weight per Pack Metric | 0.68 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 1.97 in |
| Height [Metric] | 5.0013 cm |
| Length | 9.84 in |
| Length [Metric] | 25.0012 cm |
| Mounting Type | Holder |
| Response Time | 10 S at 500% |
| Series | LPS |
| Size | 1.61 In Diameter X 9.63 In Length |
| Standard | CE Marked |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed, Guide JDDZ, File No. E4273CSA C22.2 No. 248.12, Class 1422-02, File No. 53787CE Certified |
| Sub Brand | Bussmann Series |
| Terminal Type | Blade |
| Type | Fuse |
| UNSPSC | 39121606 |
| UPC 11 | 05171254850 |
| UPC 12 | 051712548502 |
| Width | 1.89 in |
| Width [Metric] | 4.8006 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 200 A |
| Class | RK-1 |
| Interrupt Rating | 100 kAIC at 300 Vdc300 kAIC at 600 Vac |
| Voltage Rating | 600//300 VAC//VDC |
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Electrically isolated end cap |
| Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective co-ordination ratio of 2:1 prevents widespread blackouts |
| Time delay permits 130% FLA sizing for backup motor protection |
| 300 kA rms symmetrical interrupt rating provides adequate ratings without obsolescence for all electrical systems, big or small, allows for simple, worry free installation in virtually any application |
| Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak® fuses |
| Consistent 2:1 ampacity ratios for all Low-Peak® fuses make selective co-ordination easy |
| Current limitation protects down stream components against damaging thermal and magnetic effects of short circuit currents |
| Protects against 1-phase motor damage |
| Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers |
| Electrically isolated end cap |
| 10 s at 500% of rated current response time |
| 300 kA at 600 VAC, 100 kA at 300 VDC interrupt rating |
