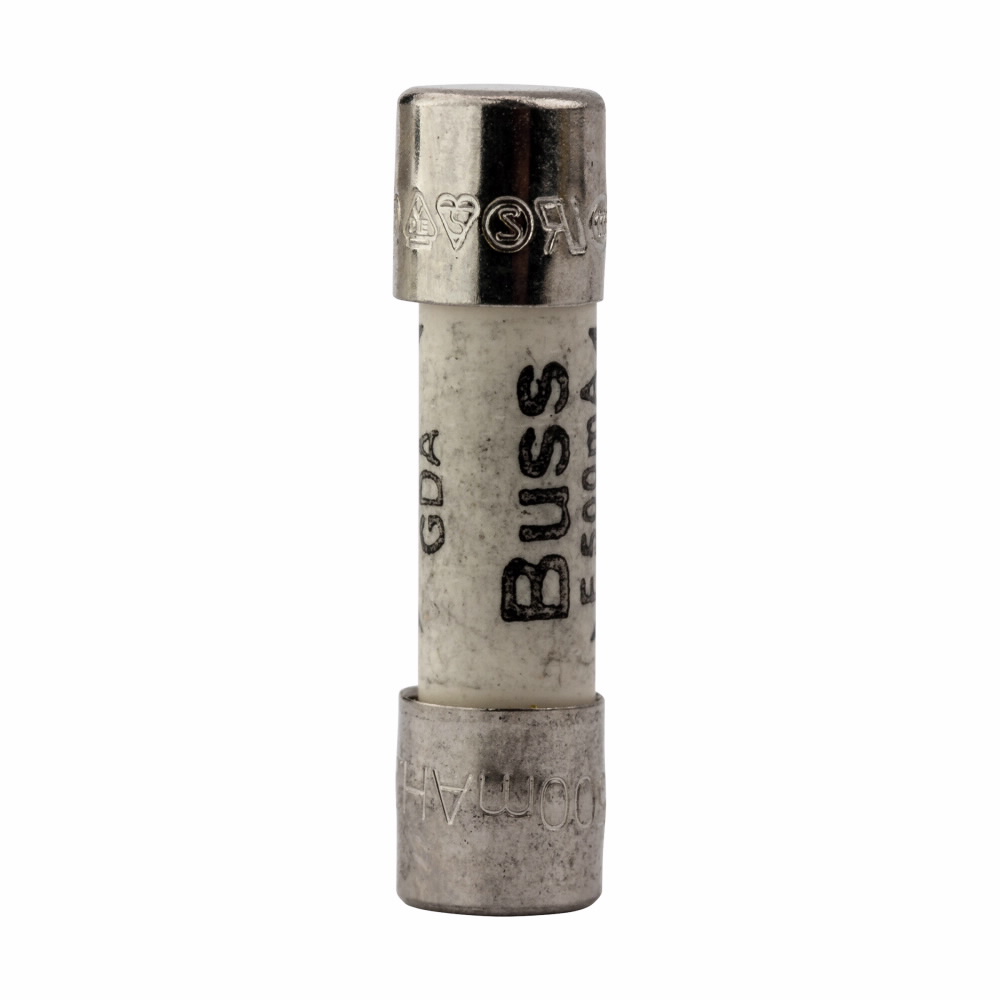

Bussmann® GDA-1A Bussmann® SMALL DIMENSION FU

Cartridge Fuses
69104 MFG #: GDA-1A
Bussmann
7.52000 / ea
IDW_IMAGE_1515146988701
  • Alternate Catalog Number: GDA-1A
  • Application: Ind Facilities & Factories - Facility: Safety and Security Systems
  • ARRA Compliant: C
  • Body Size: 5.2 mm Dia x 20 mm H
  • Buy American Compliant: C
  • Catalog Number: GDA-1A
  • Country of Origin: MUL
  • Currency: USD
  • Element: Single
  • EU RoHS Indicator: C
  • Frequency Rating: 50 Hz
  • Gross Weight Per Pack: 0.0100 lb
  • Gross Weight per Pack Metric: 0.00
  • Gross Weight UOM Metric: kg
  • Harmonization Tariff Schedule Code: 8536100040
  • Height: 9.65 in
  • Height [Metric]: 24.5001 cm
  • Indicating|Non~Indicating: Non-Indicating
  • Length: 14.57 in
  • Length [Metric]: 36.9999 cm
  • Material: Nickel-plated brass end cap constructionCeramic tube
  • Mounting Type: Clip/Holder
  • Rejection|Non~Rejection: Non-Rejection
  • Series: GDA
  • Standard: VDE,CCC Marked,RoHS Compliant,CE Marked
  • Standards: ARRA CompliantBuy American Act CompliantRoHS 2002/95/ECUL Guide JDYX2, File No. E19180 RecognizedCSA File No. 53787SEMKO File No. 413779, File No. 512433 IMQ File No. EB405CCC File No. 2005010207155691IEC 60127-2
  • Sub Brand: Bussmann Series
  • Terminal Type: Ferrule
  • Type: Fast-acting fuse
  • UNSPSC: 39121611
  • UPC 11: 05171243129
  • UPC 12: 051712431293
  • Width: 9.96 in
  • Width [Metric]: 25.2999 cm
  • Stock Status: NONSTOCK
  • Brand: Bussmann
  • Manufacturer: Eaton
  • Amperage Rating: 1 A
  • Body Type: Cylindrical
  • Connection: Ferrule end x ferrule end
  • Interrupt Rating: 1.5 kAIC at 250 Vac A
  • Response Time: 60 min, 30 min, 10 ms, 3 s, 3 ms, 300 ms, 20 ms
  • Size: 5.20 mm Diameter X 20.00 mm Height
  • Voltage Rating: 250 Vac, 32 Vdc (self certified) VAC
World?s leading supplier of fuses and fusible protection systems, Bussmann continues its 88-year history of blazing new trails of innovative technologies. Maker of the industry?s first truly global product line, each item is backed by an efficient worldwide network of distribution, customer service and technical support. Bussmann products include the most extensive circuit protection solutions approved for use in a variety of major standards: UL, CSA, IEC. Not to mention both European (DIN, British Standard) and North American styled fuses for a wide range of applications: industrial motor protection, power conversion, medium voltage, power distribution, telecommunications network equipment, electronics, and automotive.
QTY
Add to Wishlist
  • Applications
  • Features
Ind Facilities & Factories - Facility: Safety and Security Systems
High Breaking Capacity, Interrupt Rating 1500 Amp at 250 Vac, Material Ceramic Tube, Nickel Plated Brass Endcap
Fast acting for maximum protection
High break capacity for use in higher fault energy electronic circuitry
Nickel plated brass end caps
60 min minimum at 1.5 In, 30 min maximum at 2.1 In, 10 ms minimum and 3 s maximum at 2.75 In, 3 ms minimum and 300 ms maximum at 4 In, 20 ms maximum at 10 In response time
1500 A at 250 VAC interrupt rating
Without axial leads
