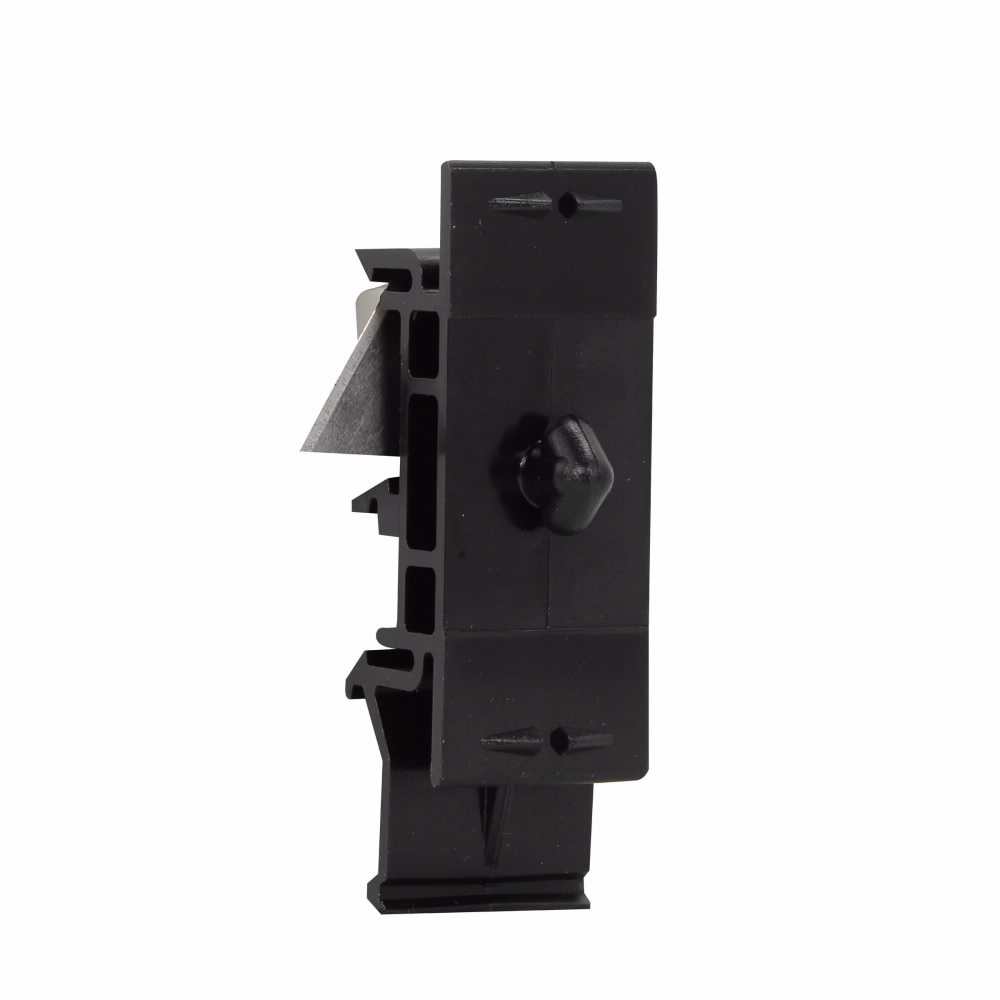

Edison DRA-1 DIN Rail Adapter, For Use With Class CC/G/H 250 VAC Fuse, 0 to 30 A Fuse Block, Lexan® 141, Black
Fuse Miscellaneous Accessories
4775
MFG #: DRA-1
Bussmann
7.50000
/ ea
- Alternate Catalog Number: DRA-1
- Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: DRA-1
- Class: Class HClass GClass CC
- Country of Origin: MUL
- Currency: USD
- Dimensions: 0.85 in L x 0.32 in W x 2.59 in H
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.0300 lb
- Gross Weight per Pack Metric: 0.11
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 3926909985
- Height: 2.45 in
- Height [Metric]: 6.2230 cm
- Length: 4.37 in
- Length [Metric]: 11.0998 cm
- Standard: Not Applicable,RoHS Compliant,Contact factory
- Standards: ARRA CompliantBuy American Act CompliantRoHS Compliant
- Sub Brand: Bussmann Series
- Type: Accessory
- UNSPSC: 39121624
- UPC 11: 05171214170
- UPC 12: 051712141703
- Width: 3.13 in
- Width [Metric]: 7.9502 cm
- Stock Status: NORMALLY STOCKED
- Brand: Bussmann
- Manufacturer: Eaton
- Color: Black
- Material: Lexan
- Suitable For Use With: 0 to 30 A Class CC/G/H Fuse Blocks
Edison DIN Rail Adapter, For Use With: Class CC/G/H 250 VAC Fuse, 0 to 30 A Fuse Block, Lexan® 141, Black
- Brochure URL - COBUSSE02008_1.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_0ae58b7a770fdb9f4a8d6e1948441a08837e7eb52c7a2a4d226f5a16dfa5cb88.pdf(Catalog URL)
- http://www.bussmann.com(Seller Home Page URL)
- Spec Sheet 1 URL - Bussmann_DRA_1_Specification_Sheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - DRA-1(Spec Sheet URL)
- Tech Bulletin URL - datasheet.php?model=FNQ-30&locale=en_GB(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/YMvqUyoETXk(Video)
- Applications
- Features
| Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Color Black |
| Edison DIN rail adapters permit secure, positive snap-on mounting of Edison 0 to 30 a fuse blocks (1/2/3-pole) on various size rails (rail mounting eliminates costly and time consuming drilling, tapping and screw mounting) |
| Adapter mechanically locks into mounting hole of fuse block in seconds to become an integral part of the block |
| One adapter is required for Edison one and two-pole blocks, two adapters are required for three-pole blocks |
| With the exception of the 32 mm DIN rail, all blocks with adapters can be removed from a rail simply by pulling up its release tab |
| Use of rail end-stops on both sides of adapters is recommended |
| Use of rail end stops on both sides of adapters is recommended |
