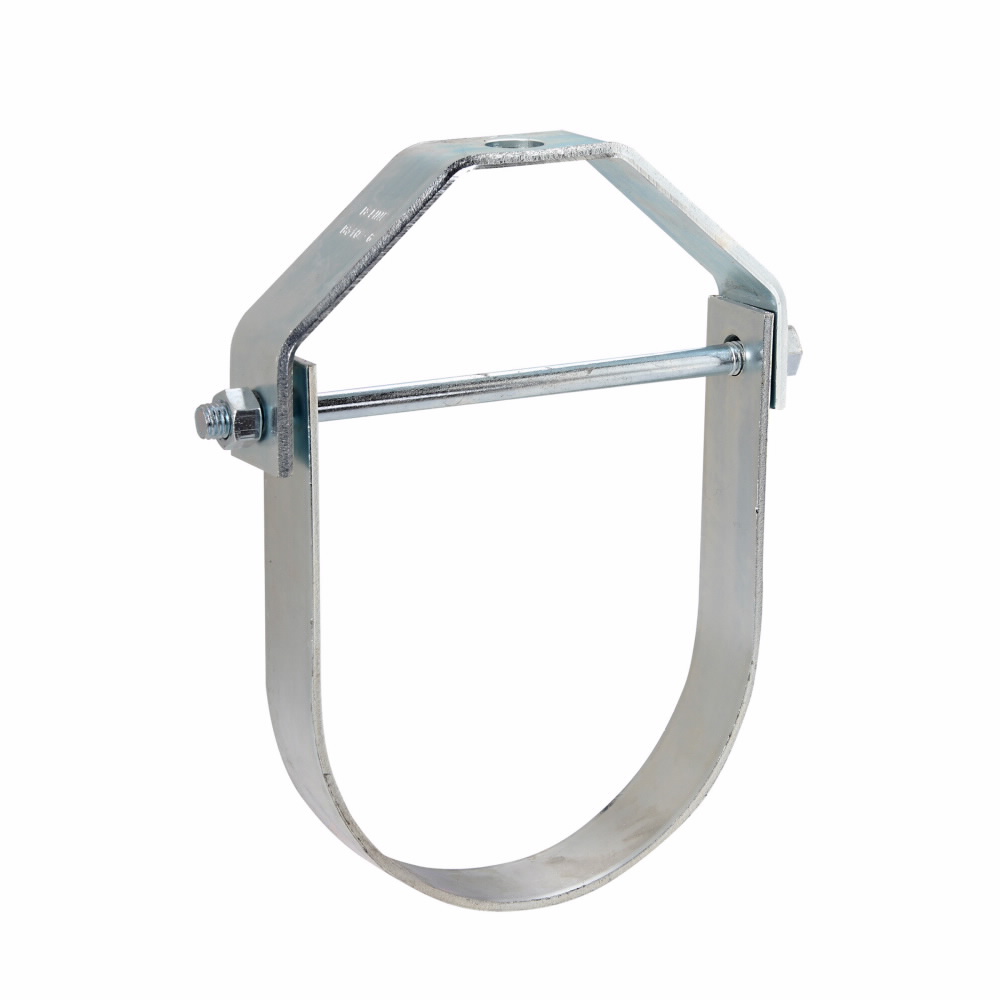

B-Line SLIDE-RITE™ B3100-6ZN Standard Pipe Clevis Hanger, 6 in Pipe, 3/4-10 Rod, 1940 lb Load, Steel, Zinc Plated
Custom_Product_Images_Illustration
B-Line SLIDE-RITE™ B3100-6ZN Standard Pipe Clevis Hanger, 6 in Pipe, 3/4-10 Rod, 1940 lb Load, Steel, Zinc Plated
SKU150868
MFGR #B3100-6ZN
Your Cost: $42.65/ea
List: B-Line has long been a leading manufacturer of support systems and electrical enclosures for the mechanical, electrical and telecommunications industries. our spring steel fastener line includes a wide range of quality fastening systems for electrical, mechanical and telecommunication applications. our spring steel fasteners include products for attachment to metal studs, steel beams, acoustical tee, drywall purlins, and channel.
B-Line has long been a leading manufacturer of support systems and electrical enclosures for the mechanical, electrical and telecommunications industries. our spring steel fastener line includes a wide range of quality fastening systems for electrical, mechanical and telecommunication applications. our spring steel fasteners include products for attachment to metal studs, steel beams, acoustical tee, drywall purlins, and channel.
Alternate Catalog Number 78101105067 ARRA Compliant C Buy American Compliant C Catalog Number B3100-6ZN Country of Origin MUL Currency USD Dimensions 10-7/16 in H EU RoHS Indicator C Gross Weight Per Pack 2.5750 lb Gross Weight per Pack Metric 1.17 Gross Weight UOM Metric kg Height 1.50 in Height [Metric] 3.8100 cm Length 10.41 in Length [Metric] 26.4363 cm Returnable Y Series B3100 Size 6 in Specifications 6-15/16 in Center of Pipe to Top of Hanger Standard UL (CANADA AND US), FM, Federal Specification WW-H-171E, A-A-1192A Type 1, ANSI/MSS SP-69, SP-58 Type 1 Standards ARRA CompliantBuy American Act CompliantRoHS Compliant Sub Brand B-Line series Temperature Rating 650 °F Thread Size 3 in Type Standard UNSPSC 39121311 UPC 11 78101105067 UPC 12 781011050672 Width 10.00 in Width [Metric] 25.4000 cm Stock Status NONSTOCK Brand B-Line Manufacturer Eaton Finish Zinc Plated Load Capacity 1940 lb Material Steel Pipe Size 6 in Rod Size 3/4-10 Generation - Conventional Energy - Conventional EnergyDatacenters - Datacenters - OtherOther IT and Datacom - Other InfrastructuresUtilityCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherResidential Bldgs & Facilities - Residential Bldgs & Facilities - OtherGeneration - Renewable Energy - Alternative EnergyDatacenters - IT Space: Enterprise / Server Room / Network ClosetInd Facilities & Factories - Facility - OtherWater and Wastewater Systems - Water and Wastewater Systems - OtherInd Facilities & Factories - Industrial Facilities/Factories - OtherCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - Aftermarket Rod Size 3/4 in-10 TPI, Overall Height 10-7/16 in, Load Capacity 1940 Lb, Weight 320 Lb per 100 Pipe will not 'pinch' when installing 15 deg swing in either direction allows pipe to easily feed thru Engineered design aligns bolt holes for quicker overhead installation Rod take-out: 7 in 3 in min thread length of hanger rod 6-15/16 in center of pipe to top of hanger 10-5/16 in bottom of pipe to top of hanger 2 in adjustment Recommended for the suspension of non-insulated pipe or insulated pipe with a B3151 shield
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 78101105067 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | B3100-6ZN |
| Country of Origin | MUL |
| Currency | USD |
| Dimensions | 10-7/16 in H |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 2.5750 lb |
| Gross Weight per Pack Metric | 1.17 |
| Gross Weight UOM Metric | kg |
| Height | 1.50 in |
| Height [Metric] | 3.8100 cm |
| Length | 10.41 in |
| Length [Metric] | 26.4363 cm |
| Returnable | Y |
| Series | B3100 |
| Size | 6 in |
| Specifications | 6-15/16 in Center of Pipe to Top of Hanger |
| Standard | UL (CANADA AND US), FM, Federal Specification WW-H-171E, A-A-1192A Type 1, ANSI/MSS SP-69, SP-58 Type 1 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS Compliant |
| Sub Brand | B-Line series |
| Temperature Rating | 650 °F |
| Thread Size | 3 in |
| Type | Standard |
| UNSPSC | 39121311 |
| UPC 11 | 78101105067 |
| UPC 12 | 781011050672 |
| Width | 10.00 in |
| Width [Metric] | 25.4000 cm |
| Stock Status | NONSTOCK |
| Brand | B-Line |
| Manufacturer | Eaton |
| Finish | Zinc Plated |
| Load Capacity | 1940 lb |
| Material | Steel |
| Pipe Size | 6 in |
| Rod Size | 3/4-10 |
| Generation - Conventional Energy - Conventional EnergyDatacenters - Datacenters - OtherOther IT and Datacom - Other InfrastructuresUtilityCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherResidential Bldgs & Facilities - Residential Bldgs & Facilities - OtherGeneration - Renewable Energy - Alternative EnergyDatacenters - IT Space: Enterprise / Server Room / Network ClosetInd Facilities & Factories - Facility - OtherWater and Wastewater Systems - Water and Wastewater Systems - OtherInd Facilities & Factories - Industrial Facilities/Factories - OtherCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - Aftermarket |
| Rod Size 3/4 in-10 TPI, Overall Height 10-7/16 in, Load Capacity 1940 Lb, Weight 320 Lb per 100 |
| Pipe will not 'pinch' when installing |
| 15 deg swing in either direction allows pipe to easily feed thru |
| Engineered design aligns bolt holes for quicker overhead installation |
| Rod take-out: 7 in |
| 3 in min thread length of hanger rod |
| 6-15/16 in center of pipe to top of hanger |
| 10-5/16 in bottom of pipe to top of hanger |
| 2 in adjustment |
| Recommended for the suspension of non-insulated pipe or insulated pipe with a B3151 shield |
