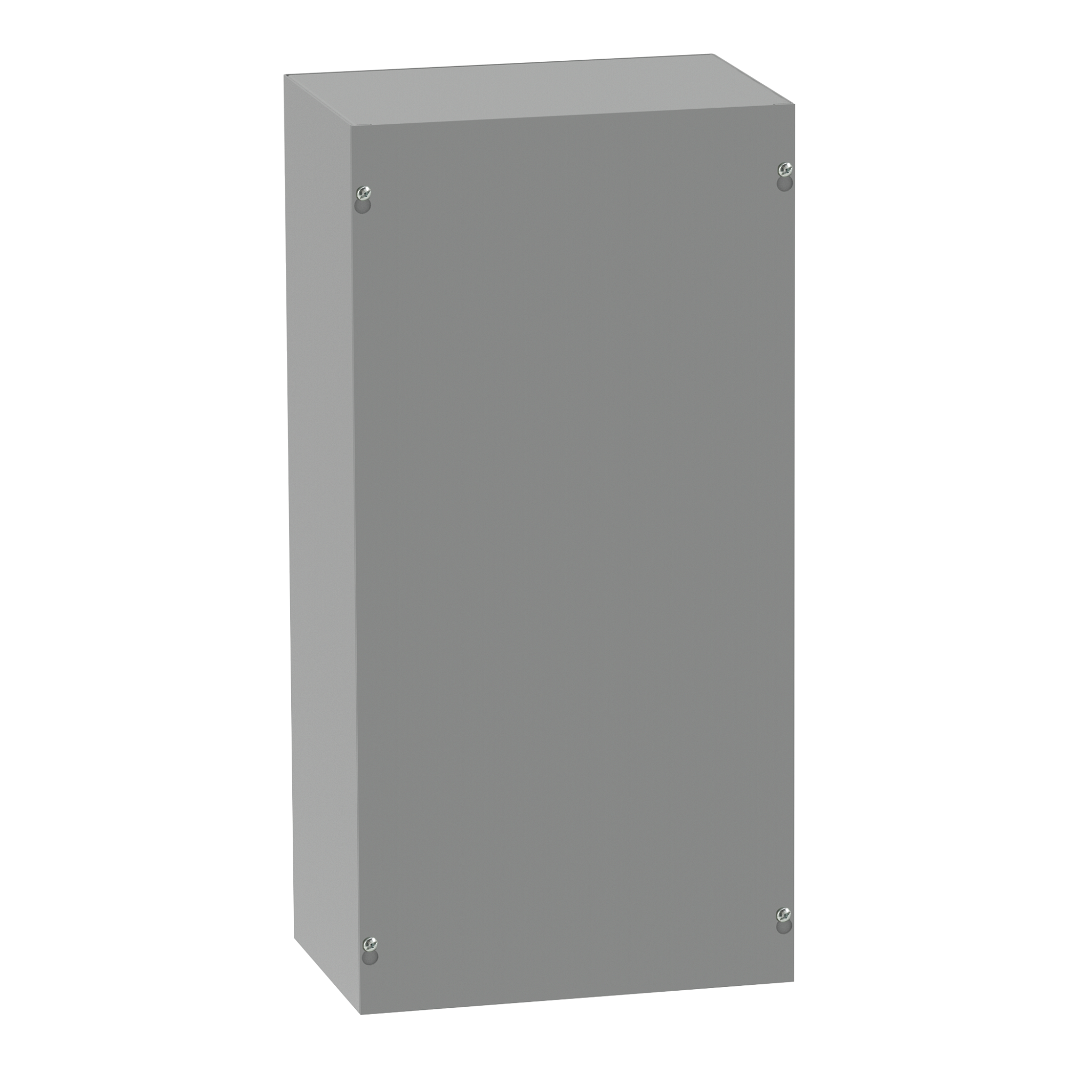

nVent HOFFMAN ASE16X12X6NK A90P1 Pull Box, 12 in W x 6 in D x 16 in H, Screw Cover, NEMA 1/IP30, Steel
Pull Boxes
25944
MFG #: ASE16X12X6NK
nVent HOFFMAN
60.05000
/ ea
- Application: Power Distribution
- ARRA Compliant: C
- Assemble to Order: No
- Body Thickness: 16 ga
- Body Thickness [Metric]: 1.52 mm
- Buy American Compliant: C
- Catalog Number: ASE16X12X6NK
- Color: Gray
- Color Code: ANSI 61
- Country of Origin: MX
- Currency: USD
- Door Thickness: 16 ga
- Door Thickness [Metric]: 1.52 mm
- EU RoHS Indicator: C
- Gross Volume Per Pack: 0.68
- Gross Volume UOM: FC
- Gross Weight Per Pack: 12.580 lb
- Gross Weight per Pack Metric: 5.76
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 7326908688
- Height: 6.10 in
- Height [Metric]: 15.4940 cm
- Interchangeable: No
- IP Rating: IP30
- Item Group: A90P1
- Knockouts Included: No
- Length [Metric]: 40.3860 cm
- Modification Services: Yes
- Number of Screws: 4
- Package Quantity: 1
- Returnable: Y
- Shipping Weight: 13 lb
- Size: 16.00x12.00x6.00 in
- Standards: UL 50, 50E Listed, Type 1, File No. E27525, cUL Listed per CSA C22.2 No 40, Type 1, File No. E27525, NEMA/EEMAC Type 1, IEC 60529, IP30, RoHS Complaint
- Style: Painted
- Type: Pull and Junction Boxes
- UNSPSC: 39121303
- UPC 11: 78351086460
- UPC 12: 78351086460
- Width [Metric]: 30.7340 cm
- Stock Status: NORMALLY STOCKED
- Brand: nVent HOFFMAN
- Manufacturer: HOFFMAN ENCLOSURES
- Length: 15.90 in
- Width: 12.10 in
- Depth: 6
- NEMA Rating: 1 Indoor
- Material: Mild Steel
nVent HOFFMAN Pull Box, Series: A90P1, 12 in Width, 6 in Depth, 16 in Height, NEMA 1/IP30, Screw Cover, Flush Mount, Steel, Polyester Powder Painted, Gray
- Applications
- Features
| Power Distribution |
| 16, 14 or 12 gauge steel or plated steel |
| 16, 14 or 12 ga steel or plated steel |
| Unique keyhole screw slots in the cover |
| Optional flush-mounted door frame available |
| Optional flush covers |
| Flat, removable covers fastened with plated steel screws |
| Provision for grounding |
| Mounting holes on back of box |
| For flush installations, order flush covers and door frames separately |
| Without knockout |
