Steiner serves territories in Northern Illinois, Northwest Indiana and Southern Wisconsin. Please for assistance if outside our sales territory.
Custom_Product_Images_Illustration
SKU150484
MFGR #ASE12X12X12NK
Your Cost: $142.04/ea

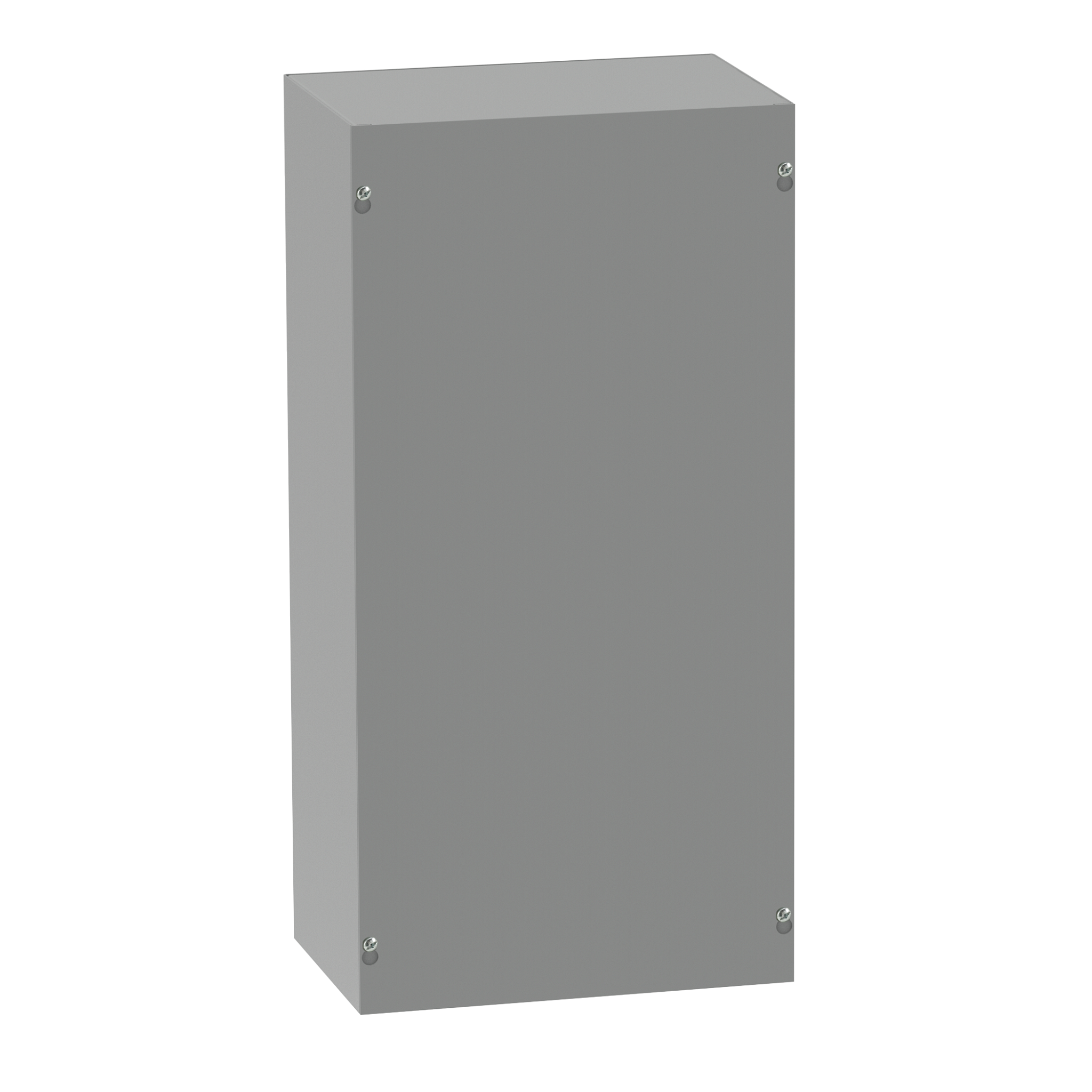

List: nVent HOFFMAN Pull Box, Series: A90P1, 12 in Width, 12 in Depth, 12 in Height, NEMA 1/IP30, Screw Cover, Flush Mount, Steel, Polyester Powder Painted, Gray
nVent HOFFMAN Pull Box, Series: A90P1, 12 in Width, 12 in Depth, 12 in Height, NEMA 1/IP30, Screw Cover, Flush Mount, Steel, Polyester Powder Painted, Gray
Application Power Distribution ARRA Compliant C Assemble to Order No Body Thickness 16 ga Body Thickness [Metric] 1.52 mm Buy American Compliant C Catalog Number ASE12X12X12NK Color Gray Color Code ANSI 61 Country of Origin MX Currency USD Door Thickness 16 ga Door Thickness [Metric] 1.52 mm EU RoHS Indicator NEW Finish Powder Coated Gross Volume Per Pack 1.03 Gross Volume UOM FC Gross Weight Per Pack 14.7150 lb Gross Weight per Pack Metric 6.71 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height [Metric] 30.7340 cm Interchangeable No IP Rating IP30 Item Group A90P1 Knockouts Included No Length [Metric] 30.9880 cm Modification Services Yes Number of Screws 4 Package Quantity 1 Returnable Y Shipping Weight 15 lb Size 12.00x12.00x12.00 in Standards UL 50, 50E Listed, Type 1, File No. E27525, cUL Listed per CSA C22.2 No 40, Type 1, File No. E27525, NEMA/EEMAC Type 1, IEC 60529, IP30, RoHS Complaint Style Painted Type Pull and Junction Boxes UNSPSC 39121303 UPC 11 78351049919 UPC 12 78351049919 Width [Metric] 30.7340 cm Stock Status NORMALLY STOCKED Brand nVent HOFFMAN Manufacturer HOFFMAN ENCLOSURES Depth 12 Height 12.1000 in Length 12.2000 in Material Mild Steel NEMA Rating 1 Indoor Width 12.1000 in Power Distribution 16, 14 or 12 gauge steel or plated steel 16, 14 or 12 ga steel or plated steel Unique keyhole screw slots in the cover Optional flush-mounted door frame available Optional flush covers Flat, removable covers fastened with plated steel screws Provision for grounding Mounting holes on back of box For flush installations, order flush covers and door frames separately Without knockout
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Power Distribution |
| ARRA Compliant | C |
| Assemble to Order | No |
| Body Thickness | 16 ga |
| Body Thickness [Metric] | 1.52 mm |
| Buy American Compliant | C |
| Catalog Number | ASE12X12X12NK |
| Color | Gray |
| Color Code | ANSI 61 |
| Country of Origin | MX |
| Currency | USD |
| Door Thickness | 16 ga |
| Door Thickness [Metric] | 1.52 mm |
| EU RoHS Indicator | NEW |
| Finish | Powder Coated |
| Gross Volume Per Pack | 1.03 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 14.7150 lb |
| Gross Weight per Pack Metric | 6.71 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height [Metric] | 30.7340 cm |
| Interchangeable | No |
| IP Rating | IP30 |
| Item Group | A90P1 |
| Knockouts Included | No |
| Length [Metric] | 30.9880 cm |
| Modification Services | Yes |
| Number of Screws | 4 |
| Package Quantity | 1 |
| Returnable | Y |
| Shipping Weight | 15 lb |
| Size | 12.00x12.00x12.00 in |
| Standards | UL 50, 50E Listed, Type 1, File No. E27525, cUL Listed per CSA C22.2 No 40, Type 1, File No. E27525, NEMA/EEMAC Type 1, IEC 60529, IP30, RoHS Complaint |
| Style | Painted |
| Type | Pull and Junction Boxes |
| UNSPSC | 39121303 |
| UPC 11 | 78351049919 |
| UPC 12 | 78351049919 |
| Width [Metric] | 30.7340 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | nVent HOFFMAN |
| Manufacturer | HOFFMAN ENCLOSURES |
| Depth | 12 |
| Height | 12.1000 in |
| Length | 12.2000 in |
| Material | Mild Steel |
| NEMA Rating | 1 Indoor |
| Width | 12.1000 in |
| Power Distribution |
| 16, 14 or 12 gauge steel or plated steel |
| 16, 14 or 12 ga steel or plated steel |
| Unique keyhole screw slots in the cover |
| Optional flush-mounted door frame available |
| Optional flush covers |
| Flat, removable covers fastened with plated steel screws |
| Provision for grounding |
| Mounting holes on back of box |
| For flush installations, order flush covers and door frames separately |
| Without knockout |
